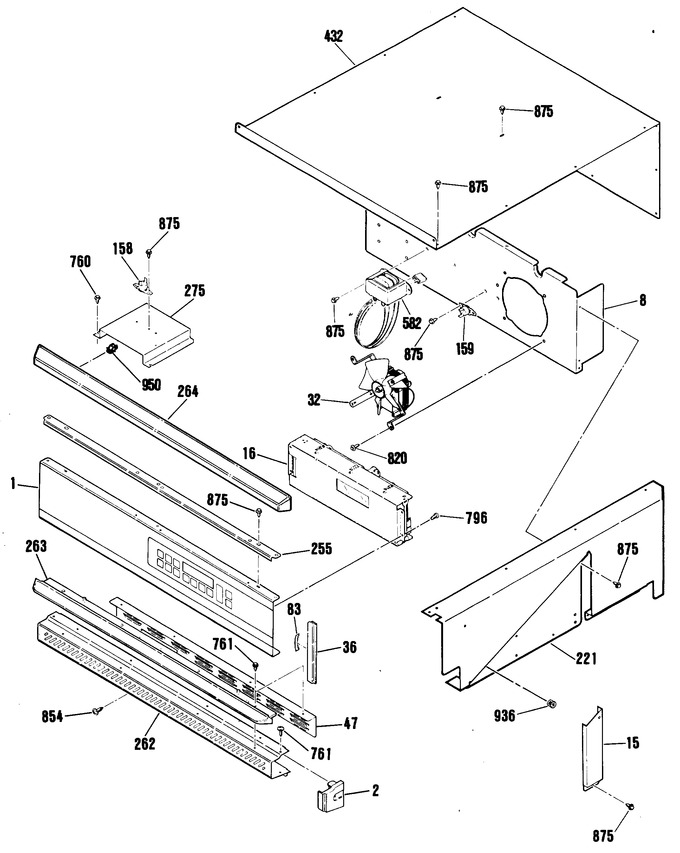

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB36K5457 | Control Panel Asm-almond |
|
- | |||||
| 2 | WB36K5339 | Vent Trim End Cap-rt-ad |
|
- | |||||
| 2 | WB36K5340 | Vent Trim End Cap-lt-ad |
|
- | |||||
| 8 | WB2K5257 | Fan Support |
|
- | |||||
| 15 | WB34K5090 | Meat Probe Wire Cover |
|
- | |||||
| 16 | WB27K5154 | Clock/oven Control |
|
- | |||||
| 32 | WB26K5045 | Fan |
|
- | |||||
| 36 | WB7K5242 | Control Panel End Trm-lt |
|
- | |||||
| 36 | WB7K5243 | Control Panel End Trm-rt |
|
- | |||||
| 47 | WB38K5029 | Vent Barrier |
|
- | |||||
| 83 | WB9K5008 | End Trim Spring |
|
- | |||||
| 158 | WB24K5033 | Limit Switch |
|
- | |||||
| 159 | WG02F04523 | Limit Switch (Replaces: WB24K5085) |
|
$ 28.58 | |||||
| 221 | WB63K5083 | Side Extension-lt-upper |
|
- | |||||
| 221 | WB63K5082 | Side Extenstion-rt-upper |
|
- | |||||
| 255 | WB7K5244 | Overlay Trim-ad |
|
- | |||||
| 262 | WB7K5247 | Vertical Side Trim Rt-ad |
|
- | |||||
| 262 | WB7K5254 | Vent Trim |
|
- | |||||
| 262 | WB7K5246 | Vertical Side Trim Lt-ad |
|
- | |||||
| 263 | WB7K5231 | Trim (i-brow Ad) |
|
- | |||||
| 264 | WB7K5245 | Control Panel Top Trm-ad |
|
- | |||||
| 275 | WB34K5078 | Vent Box Cover |
|
- | |||||
| 432 | WB63K5081 | Top Cover |
|
- | |||||
| 582 | WB20K5008 | Transformer |
|
- | |||||
| 760 | WB1K5028 | Screw |
|
- | |||||
| 761 | WB1K5062 | Screw-brt. Ni. |
|
- | |||||
| 761 | WB1K5029 | Screw-black |
|
- | |||||
| 796 | WB1K5116 | Screw |
|
- | |||||
| 820 | WB1X1424 | Screw |
|
- | |||||
| 854 | WB1X1164 | Screw-brt. Ni. |
|
- | |||||
| 854 | WB1X1328 | Screw-black |
|
- | |||||
| 858 | WB1X1413 | Wood Screw |
|
- | |||||
| 875 | WG04A00781 | Scr 8-18 Ab Hxw 3/8 S (Replaces: WH2X930) |
|
Immediately | $ 3.57 | ||||
| 927 | WB1X1254 | Washer |
|
- | |||||
| 936 | WB1K5065 | Snap Bushing |
|
- | |||||
| 950 | WB1K5135 | Cable Clip |
|
- | |||||
| 999 | 49-8503 | Manual Use And Care |
|
- | |||||
| 999 | WB18K5210 | Lock Mtr Wire Harness |
|
- | |||||
| 999 | WB18K5479 | Harness Wire Main |
|
- | |||||
| 999 | 31-13150 | Manual Mini & Wd Asm |
|
- | |||||
| 999 | 49-8443 | Pm Cookbook |
|
- | |||||
| 999 | 31-10119 | Installation Instruciton |
|
- |
