1 - Control Panel

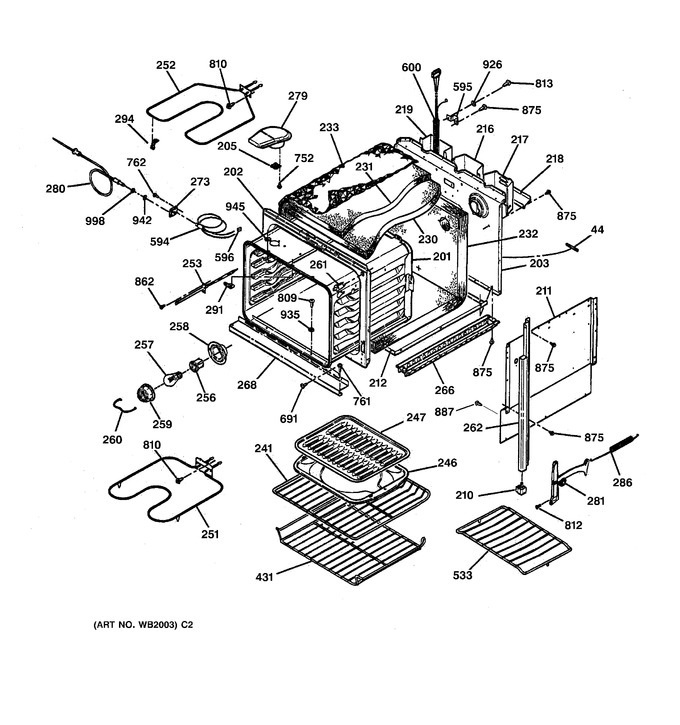

2 - Body Parts
3 - Oven Door
4 - Lock
5 - Convection Fan
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 44 | WB2K5225 | Grommet Strip (.020) |
|
- | |||||
| 201 | WB63T10011 | Oven Body-upper |
|
- | |||||
| 202 | WB63T10008 | Front Frame |
|
- | |||||
| 203 | WB63K5168 | Main Back |
|
- | |||||
| 205 | WB6K5026 | Smoke Elim Screen |
|
- | |||||
| 210 | WB7K5462 | Btm Trim End Cap-rt-ad |
|
- | |||||
| 210 | WB7K5463 | Btm Trim End Cap-rt-ad |
|
- | |||||
| 211 | WB63K5173 | Body Side |
|
- | |||||
| 212 | WB63K5080 | Cabinet Bottom |
|
- | |||||
| 216 | WB34K5069 | Wire Cover-element |
|
- | |||||
| 217 | WB34K5070 | Wire Cover-light |
|
- | |||||
| 218 | WB34K5067 | Wire Cover Bottom |
|
- | |||||
| 219 | WB34K5082 | Wire Cover-conduit |
|
- | |||||
| 230 | WB35K5048 | Insulation-inner |
|
- | |||||
| 231 | WB35K5068 | Insulation-outer |
|
- | |||||
| 232 | WB35K5089 | Insulation Back/btm-uppr |
|
- | |||||
| 233 | WB34K5080 | Heat Reflector |
|
- | |||||
| 241 | WB48K5009 | Rack Ov (convx Flat) |
|
- | |||||
| 246 | WS01A00265 | Broiler Pan (Replaces: WB48T10002) |
|
$ 67.51 | |||||
| 247 | WB48T10001 | Broiler Pan Grid |
|
- | |||||
| 251 | WB44K5013 | Bake Element |
|
$ 113.30 | |||||
| 252 | WG02F05475 | Broil Element (Replaces: WB44K5009) |
|
$ 103.82 | |||||
| 253 | WB21X5347 | Sensor Asm |
|
- | |||||
| 256 | WB8K5029 | Receptacle |
|
- | |||||
| 257 | BUY LOCAL | Oven Lamp |
|
- | |||||
| 258 | WB2X7693 | Oven Light Cup |
|
- | |||||
| 259 | WG02F04576 | Ov Lamp Lens (Replaces: WB36X389) |
|
$ 18.59 | |||||
| 260 | WB2X7694 | Light Lens Bail |
|
- | |||||
| 261 | 318394803 | Jamb Switch (Replaces: WB24K5061) |
|
Immediately | $ 44.23 | ||||
| 262 | WB7K5480 | Vent Trim-ad |
|
- | |||||
| 262 | WB7K5457 | Vertical Side Trim-lt-ad |
|
- | |||||
| 262 | WB7K5456 | Vertical Side Trim-rt-ad |
|
- | |||||
| 266 | WB63K5079 | Base Rail |
|
- | |||||
| 268 | WB7K5459 | Bottom Trim-almond |
|
- | |||||
| 273 | WB34K5140 | Pr0be Cover |
|
- | |||||
| 279 | WB38K5028 | Vent Box Asm |
|
- | |||||
| 280 | WB20X5050 | Probe |
|
- | |||||
| 281 | WB14K5007 | Ov Dr Hinge-lt |
|
- | |||||
| 281 | WB14K5006 | Ov Dr Hinge-rt |
|
- | |||||
| 286 | WB9K5022 | Oven Door Spring |
|
- | |||||
| 291 | WB2X9152 | Cover |
|
- | |||||
| 294 | WS01A01413 | Broil Element Support (Replaces: WB2X9719) |
|
$ 10.54 | |||||
| 431 | WB48K5010 | Rack Ov (convx Offset) |
|
- | |||||
| 533 | WB48X5108 | Roast Rack |
|
- | |||||
| 594 | WB8K5054 | Jack Receptacle |
|
- | |||||
| 595 | WB2K5126 | Conduit Clamp |
|
- | |||||
| 596 | WB8K5013 | Housing Asm Receptacle |
|
- | |||||
| 600 | WB18K5364 | Conduit Wire Asm |
|
- | |||||
| 691 | WB1K5176 | Trim Screw-almond |
|
- | |||||
| 691 | WB1K5177 | Trim Screw-black |
|
- | |||||
| 752 | WG02A00488 | Screw (Replaces: WB1K5200) |
|
$ 4.20 | |||||
| 761 | WB1K5029 | Screw-black |
|
- | |||||
| 761 | WB1K5211 | Trim Screw-ad |
|
- | |||||
| 761 | WB1K5062 | Screw-brt. Ni. |
|
- | |||||
| 809 | WG02A00781 | Screw (Replaces: WB1X1137) |
|
$ 14.29 | |||||
| 810 | WB1X1253 | Screw |
|
- | |||||
| 812 | WB1K5191 | Screw-zinc |
|
- | |||||
| 813 | WS01A00445 | Screw (Replaces: WB1X1261) |
|
$ 12.51 | |||||
| 862 | WB1X1178 | Screw |
|
- | |||||
| 875 | WG04A00781 | Screw (Replaces: WH2X930) |
|
Immediately | $ 3.57 | ||||
| 887 | WB1K5178 | Trim Screw-almond |
|
- | |||||
| 926 | WB1X1260 | Ground Washer |
|
- | |||||
| 935 | WB1K5174 | Washer |
|
- | |||||
| 942 | WB1X5573 | Washer |
|
- | |||||
| 945 | WB1K5046 | Lockwasher |
|
- | |||||
| 998 | WG02A00927 | Nut (Replaces: WB1X5572) |
|
$ 67.26 |
