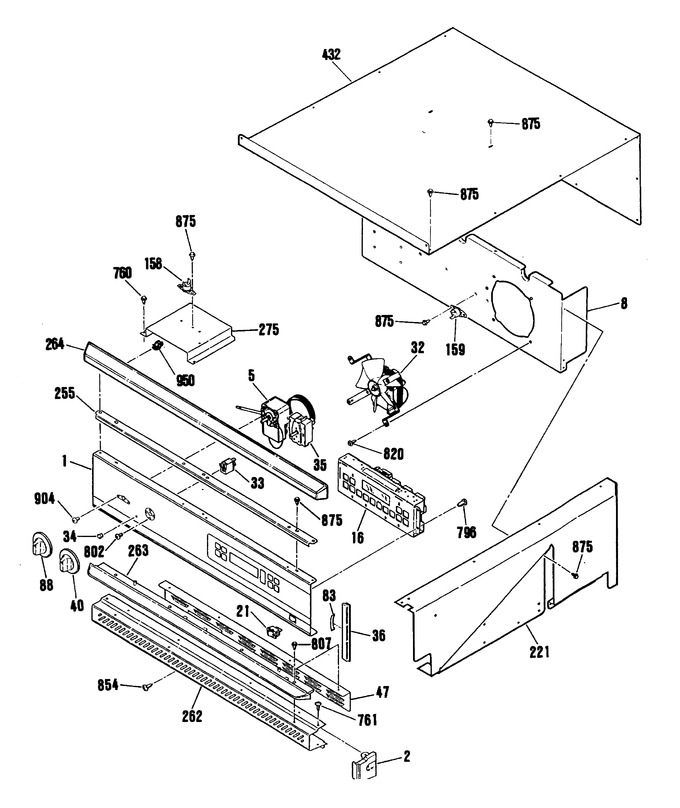

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB36K5512		Control Panel-black		Appelez-nous	-
2	WB36K5101		Vent Trim End Cap-lt-blk		Appelez-nous	-
2	WB36K5102		Vent Trim End Cap-rt-blk		Appelez-nous	-
5	WB20K5011		Thermostat		Appelez-nous	-
8	WB2K5257		Fan Support		Appelez-nous	-
8	WB2K5137		Fan Support		Appelez-nous	-
16	WB27K5190		Erc Ii C		Appelez-nous	-
21	WB24K5035		Rocker Switch		Appelez-nous	-
32	WB26K5045		Fan		Appelez-nous	-
33	WB25X92		Indicator Light-top Elem		Appelez-nous	-
34	WB25X94		Indicator Light Lens		Appelez-nous	-
35	WB24K5040		Selector Switch		Appelez-nous	-
36	WB7K5184		Trim Cntl Pnl End-lt-blk		Appelez-nous	-
36	WB7K5185		Trim Cntl Pnl End-rt-blk		Appelez-nous	-
40	WB3K5254		Selector Switch Knob-blk		Appelez-nous	-
47	WB38K5029		Vent Barrier		Appelez-nous	-
83	WB9K5008		End Trim Spring		Appelez-nous	-
88	WB3K5253		Thermostat Knob-blk		Appelez-nous	-
158	WB24K5029		Limit Switch		Appelez-nous	-
159	WG02F04523		Limit Switch   (Replaces: WB24K5085)				$ 28.58
221	WB63K5174		Body Side Extension-lowr		Appelez-nous	-
221	WB63K5083		Side Extension-lt-upper		Appelez-nous	-
221	WB63K5082		Side Extenstion-rt-upper		Appelez-nous	-
255	WB7K5280		Overlay Trim		Appelez-nous	-
262	WB7K5275		Vert Side Trim-lt-blk		Appelez-nous	-
262	WB7K5101		Vent Trim		Appelez-nous	-
262	WB7K5276		Vert Side Trim-rt-blk		Appelez-nous	-
263	WB7K5065		Trim-i Brow Black-lower		Appelez-nous	-
263	WB7K5378		I-brow Trim-blk		Appelez-nous	-
264	WB7K5272		Control Panel Top Trim		Appelez-nous	-
275	WB34K5078		Vent Box Cover		Appelez-nous	-
432	WB63K5081		Top Cover		Appelez-nous	-
760	WB1K5028		Screw		Appelez-nous	-
761	WB1K5029		Screw-black		Appelez-nous	-
796	WB1K5116		Screw		Appelez-nous	-
802	WB1K5123		Screw		Appelez-nous	-
807	WB1K5177		Trim Screw-black		Appelez-nous	-
820	WB1X1424		Screw		Appelez-nous	-
854	WB1X1164		Screw-brt. Ni.		Appelez-nous	-
854	WB1X1328		Screw-black		Appelez-nous	-
875	WG04A00781		Scr 8-18 Ab Hxw 3/8 S   (Replaces: WH2X930)			Immediately	$ 3.57
904	WB1X521		Scr 8/32 Tf Flr 5/16 S		Appelez-nous	-
950	WB1K5135		Cable Clip		Appelez-nous	-
