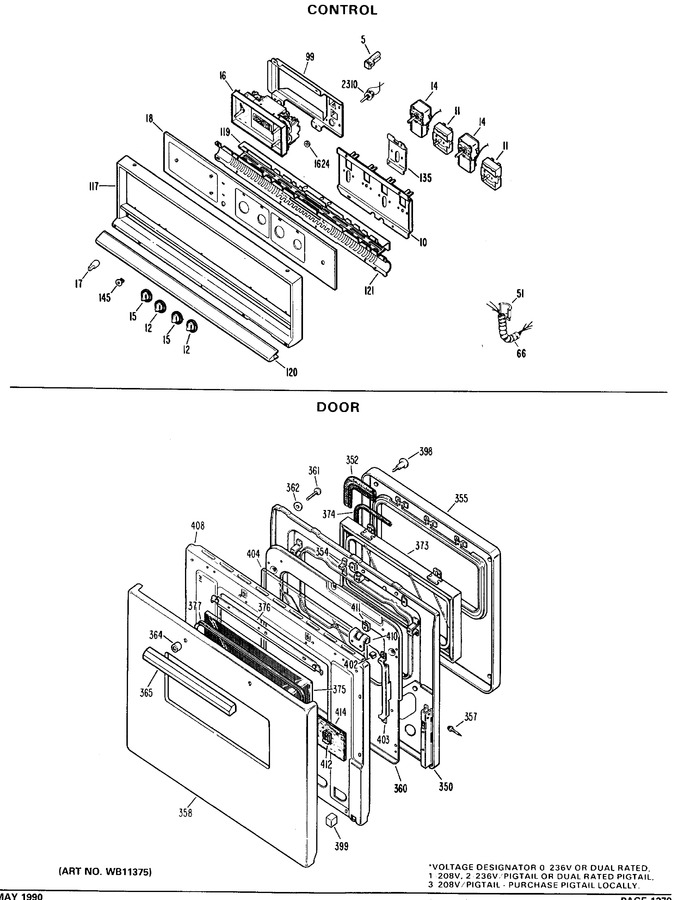

1 - Control
2 - Upper Oven Parts
3 - Lower Oven Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | WB2X3468 | Neon Lamp 240v |
|
- | |||||
| 5 | WB2X1608 | Neon Lamp 118v |
|
$ 31.65 | |||||
| 10 | WB1X5220 | Nut Mtg Instrument Brkts |
|
- | |||||
| 10 | WB2X3453 | Bracket Instrument |
|
- | |||||
| 11 | WB22X5141 | Switch, Oven |
|
- | |||||
| 11 | WB22X73 | Switch, Oven |
|
- | |||||
| 12 | WB3X5683 | Knob Oven Switch |
|
- | |||||
| 12 | WB3X5678 | Knob Oven Switch |
|
- | |||||
| 14 | WB21X5320 | Thermostat, Dual (Replaces: WB24X176) |
|
- | |||||
| 14 | WB21X5209 | Thermostat |
|
- | |||||
| 14 | WB2X6937 | Sleeve |
|
- | |||||
| 15 | WB3X5686 | Knob Thermostat |
|
- | |||||
| 15 | WB3X5685 | Knob Thermostat |
|
- | |||||
| 16 | WB19X5282 | Timer Digital |
|
- | |||||
| 17 | WB3X459 | Knob |
|
- | |||||
| 18 | WB36X5589 | Crystal |
|
- | |||||
| 18 | WB2X3232 | Pad Crystal |
|
- | |||||
| 51 | WB2X3061 | Clamp Conduit |
|
- | |||||
| 51 | WB2X1409 | Sleeve Conduit |
|
- | |||||
| 66 | OBT LOCAL | Flexible Conduit 1/2"x59 |
|
- | |||||
| 99 | WB2X7720 | Bracket Timer |
|
- | |||||
| 103 | WB2X1119 | Speednut |
|
- | |||||
| 117 | WB7X1122 | Trim |
|
- | |||||
| 119 | WB2X1973 | Deflector |
|
- | |||||
| 120 | WB7X1123 | Nose Control Trim |
|
- | |||||
| 121 | WB7X635 | Grille |
|
- | |||||
| 135 | WB2X1949 | Plate Instrument |
|
- | |||||
| 145 | WB2X3429 | Trim Switch |
|
- | |||||
| 350 | WB2X3312 | Insulation Door |
|
- | |||||
| 350 | WB2X3314 | Reflector Panel |
|
- | |||||
| 352 | WB2X3138 | Gasket Door |
|
- | |||||
| 355 | WB2X3313 | Insulation Door |
|
- | |||||
| 357 | WB1X558 | Screw |
|
- | |||||
| 358 | WB56X7014 | Panel Door Wh |
|
- | |||||
| 358 | WB56X7013 | Panel Door Ad |
|
- | |||||
| 358 | WB56X7016 | Panel Door L. O. |
|
- | |||||
| 358 | WB56X7015 | Panel Door L. O. |
|
- | |||||
| 360 | WB49X354 | Guard Insulation |
|
- | |||||
| 361 | WZ04X0425 | Screw |
|
- | |||||
| 362 | WB1X119 | Washer Screw |
|
- | |||||
| 364 | WB2X1404 | Spacer |
|
- | |||||
| 365 | WB15X94 | Handle |
|
- | |||||
| 373 | WB36X448 | Window |
|
- | |||||
| 375 | WB36X5478 | Crystal Window |
|
- | |||||
| 376 | WB2X2978 | Clip Crystal |
|
- | |||||
| 377 | WB7X7069 | Trim Crystal |
|
- | |||||
| 397 | WZ04X0384 | Screw Mtg End Cap |
|
- | |||||
| 397 | WB1X5754 | Screw Mtg End Cap |
|
- | |||||
| 398 | WB1X600 | Scr Shoulder |
|
- | |||||
| 399 | WB2X3285 | Pad Socket |
|
- | |||||
| 402 | WB1X591 | Speednut |
|
- | |||||
| 403 | WB2X7188 | Bracket Window |
|
- | |||||
| 404 | WB36X5477 | Crystal Window |
|
- | |||||
| 408 | WB55X419 | Panel Middle Door |
|
- | |||||
| 410 | WB2X3310 | Bracket Panel |
|
- | |||||
| 411 | WB1X439 | Speednut Bracket |
|
- | |||||
| 412 | WB1X589 | Speednut Panel |
|
- | |||||
| 414 | WB2X7207 | Reflector |
|
- | |||||
| 439 | WZ04X0426 | Screw Mtg Panel |
|
- | |||||
| 456 | WZ04X0345 | Screw |
|
- | |||||
| 461 | WB1X593 | Screw |
|
- | |||||
| 758 | WB1K5050 | Screw |
|
- | |||||
| 999 | 340732 | Tape |
|
- | |||||
| 1624 | WB1X245 | Nut Mtg Light Switch |
|
- | |||||
| 2095 | WB1X352 | Screw |
|
- | |||||
| 2310 | WB24X5237 | Switch |
|
- | |||||
| 32767 | 49-8128 | Manual Users |
|
- |
