SELECT A DIAGRAM

1 - Control Panel


2 - Body Parts


3 - Upper Door


4 - Lower Door


5 - Lock

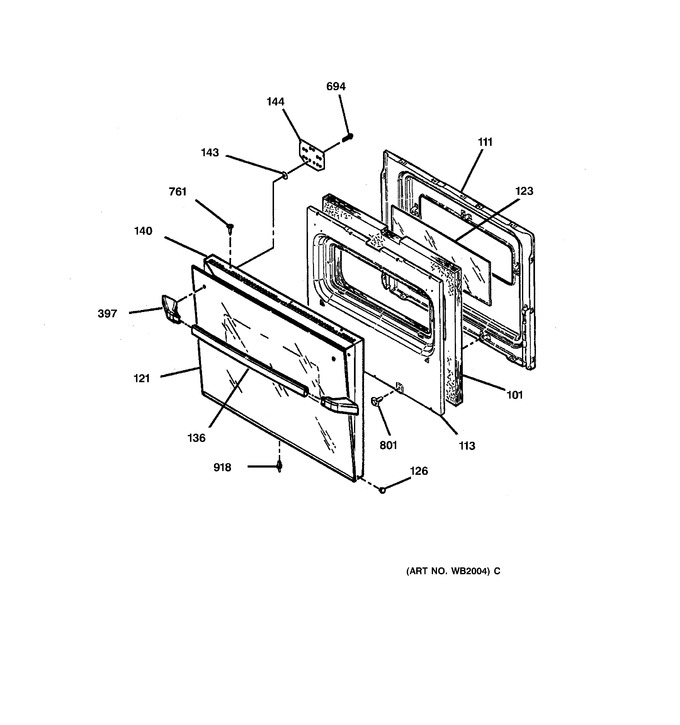

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
101	WB35K5039		Ov Door Insulation		Appelez-nous	-
111	WB55K5016		Ov Door Lining-lower		Appelez-nous	-
111	WB55K5018		Ov Dr Lining Plug-upper		Appelez-nous	-
113	WB2K5127		Ov Dr Ins Retainer		Appelez-nous	-
121	WB57K5248		Oven Door Glass-outer-bl		Appelez-nous	-
123	WB57K5038		Ov Dr Inner Glass-lower		Appelez-nous	-
126	WB3K5077		Plug Button		Appelez-nous	-
136	WB15K5068		Handle Ovn Dr		Appelez-nous	-
140	WB56K5158		Oven Door Frame-black		Appelez-nous	-
143	WB2K5147		Glass Spacer		Appelez-nous	-
144	WB2K5395		Reinforcement Plate		Appelez-nous	-
397	WB15K5069		Door Handle End Cap		Appelez-nous	-
694	WG02A00792		Screw 10-16 X .812 Hwh   (Replaces: WB1K5157)				$ 3.57
761	WB1K5062		Screw-brt. Ni.		Appelez-nous	-
761	WB1K5029		Screw-black		Appelez-nous	-
801	WB1M1		Screw		Appelez-nous	-
918	WB1K5071		Plastic Rivet		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
