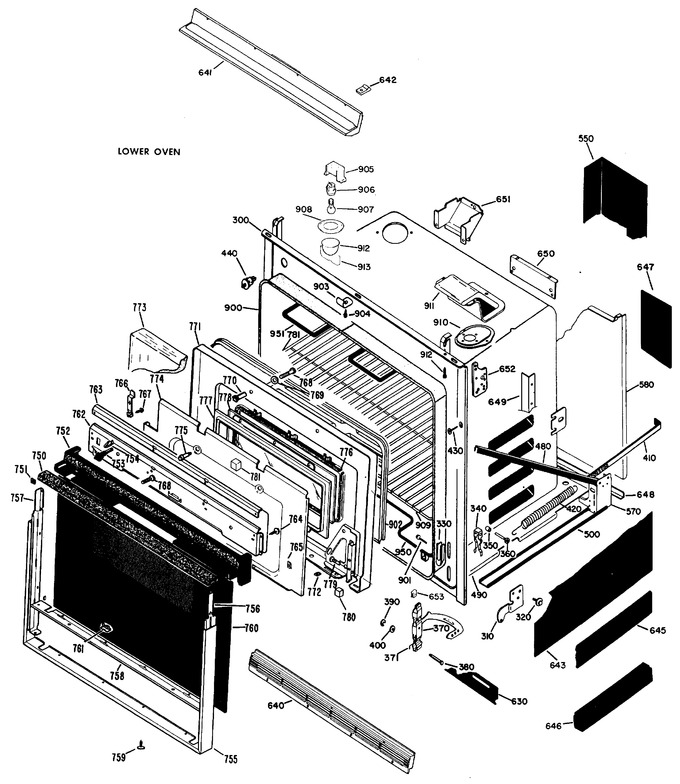

SELECT A DIAGRAM

1 - Upper Oven


2 - Lower Oven


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
252	WB2X1452		Support Broil Unit		Appelez-nous	-
300	WB56X1326		Frame		Appelez-nous	-
310	WB10X154		Hinge Support - Rh		Appelez-nous	-
310	WB10X155		Hinge Support - Lh		Appelez-nous	-
320	WZ06X0086		Screw Mt. Support		Appelez-nous	-
330	WB2X1460		Hinge Lever Guide		Appelez-nous	-
340	WB2X1461		Spring - Hinge Lever		Appelez-nous	-
350	WB2X1462		Roller		Appelez-nous	-
360	WB1X352		Screw Mt. Roller		Appelez-nous	-
370	WB10X151		Hinge Lever Kit		Appelez-nous	-
371	WB9X150		Stop Spring		Appelez-nous	-
380	WG02A00596		Hinge Pin   (Replaces: WB2X6195)				$ 4.20
390	WB2X1082		Hinge Pin Retainer		Appelez-nous	-
400	WZ10X0017		Washer		Appelez-nous	-
410	WB2X3289		Link		Appelez-nous	-
420	WB9X151		Spring		Appelez-nous	-
430	WB1X295		Screw 1 1/4"		Appelez-nous	-
430	WB1X292		Screw 3/4"		Appelez-nous	-
440	WB24X105		Oven Light Switch		Appelez-nous	-
480	WB2X2401		Channel Side		Appelez-nous	-
480	WB1X458		Screw Mt. Channel		Appelez-nous	-
490	WB59X69		Bottom Guard		Appelez-nous	-
500	WB59X107		Channel		Appelez-nous	-
550	WB59X64		Terminal Guard		Appelez-nous	-
570	WB59X108		Gusset		Appelez-nous	-
580	WB59X136		Back		Appelez-nous	-
630	WB2X2064		Support Trim (04)		Appelez-nous	-
630	WB2X3467		Support Trim (05 - Up)		Appelez-nous	-
640	WZ04X0237		Screw Mt. Trim (04)		Appelez-nous	-
640	WZ04X0349		Screw Mtg. Trim (05 - Up		Appelez-nous	-
640	WB7X673		Trim (04)		Appelez-nous	-
640	WB7X1236		Trim (05 - Up)		Appelez-nous	-
641	WB7X1124		Trim Middle		Appelez-nous	-
642	WB1X537		Screen Mt. Trim		Appelez-nous	-
642	WB2X3298		Clip		Appelez-nous	-
643	WB59X105		Case Side - Rh & Lh		Appelez-nous	-
645	WB59X106		Cover Side		Appelez-nous	-
646	WB2X2063		Spacer Bottom		Appelez-nous	-
647	WB59X137		Cover		Appelez-nous	-
648	WB59X71		Angle		Appelez-nous	-
649	WB2X3299		Angle		Appelez-nous	-
650	WB2X3300		Spacer		Appelez-nous	-
651	WB2X3301		Wire Guard		Appelez-nous	-
652	WB2X3302		Support		Appelez-nous	-
652	WZ04X0231		Screw Mount		Appelez-nous	-
653	WB2X3403		Shim		Appelez-nous	-
750	WB15X153		Grip		Appelez-nous	-
751	WB1X579		Speednut Mt. Grip		Appelez-nous	-
752	WB7X1151		Trim Door Top		Appelez-nous	-
753	WB2X3337		Plunger - Door Light		Appelez-nous	-
754	WB9X157		Spring Plunger		Appelez-nous	-
755	WB7X1153		Trim Door		Appelez-nous	-
756	WB2X3338		Brace Side Rh		Appelez-nous	-
757	WB2X3339		Brace Side Lh		Appelez-nous	-
758	WB2X3340		Brace Bottom		Appelez-nous	-
759	WS01A01150		Screw Mtg. Trim   (Replaces: WB1X5364)				$ 3.97
759	WB1X537		Screw Door Bottom		Appelez-nous	-
760	WB36X556		Crystal Blk.		Appelez-nous	-
760	WB2X3191		Pad		Appelez-nous	-
761	WB2X3341		Clip Mt. Crystal		Appelez-nous	-
762	WB2X3342		Brace Top		Appelez-nous	-
763	WB7X1154		Trim Filfer		Appelez-nous	-
764	WZ04X0231		Screw Mt. Brace & Trim		Appelez-nous	-
765	WB1X585		Speednut - Trim		Appelez-nous	-
766	WB2X3232		Pad		Appelez-nous	-
766	WB9X153		Toggle Spring		Appelez-nous	-
767	WZ04X0304		Screw Mt. Spring		Appelez-nous	-
768	WZ04X0410		Screw Mt. Grip		Appelez-nous	-
769	WB1X119		Washer		Appelez-nous	-
770	WB2X3025		Spacer Door		Appelez-nous	-
771	WB55X402		Liner		Appelez-nous	-
772	WB1X580		Liner Speednut - Bottom		Appelez-nous	-
773	WB2X3283		Liner Insulation		Appelez-nous	-
774	WB55X403		Insulation Guard		Appelez-nous	-
775	WB1X547		Screw Mt. Guard		Appelez-nous	-
776	WB2X3048		Window Gasket		Appelez-nous	-
777	WZ04X0231		Screw Mt. Frame		Appelez-nous	-
777	WB2X3284		Window Frame		Appelez-nous	-
778	WB36X526		Window				$ 140.86
779	WB1X558		Socket Screw		Appelez-nous	-
780	WB2X3285		Socket Pad		Appelez-nous	-
781	WB2X3331		Clamp Crystal		Appelez-nous	-
781	WZ05X0134		Screw Mtg. Clamp		Appelez-nous	-
900	WB53X242		Oven Liner		Appelez-nous	-
900	WB2X3290		Oven Liner Insulation Pk		Appelez-nous	-
901	WB1X556		Screw Mt. Liner		Appelez-nous	-
902	WB2X2058		Silicone Gasket		Appelez-nous	-
903	WB2X3393		Trim Clip		Appelez-nous	-
904	WZ04X0291		Screw		Appelez-nous	-
905	WB2X3477		Bracket, Support		Appelez-nous	-
906	WB8X191		Receptacle		Appelez-nous	-
908	WB2X3448		Trim		Appelez-nous	-
909	WB48X73		Shelf		Appelez-nous	-
911	WB36X61		Gasket Vent		Appelez-nous	-
911	WB1X556		Screw Mt. Vent		Appelez-nous	-
911	WB38X62		Vent		Appelez-nous	-
912	WG02F04576		Lamp Cover   (Replaces: WB36X389)				$ 20.65
913	WB2X2885		Bail		Appelez-nous	-
950	WB44X192		Bake Unit		Appelez-nous	-
950	WZ04X0231		Screw Mt. Units - Bake &		Appelez-nous	-
951	UT316		Broil Unit   (Replaces: WB44X180)			Immediately	$ 49.95
951	WB2X596		Capillary Tube Clip		Appelez-nous	-
951	WB2X1543		Gasket Broil Unit		Appelez-nous	-
951	WZ05X0128		Screw Mt. Support		Appelez-nous	-
