SELECT A DIAGRAM

1 - Control


2 - Upper Oven Parts

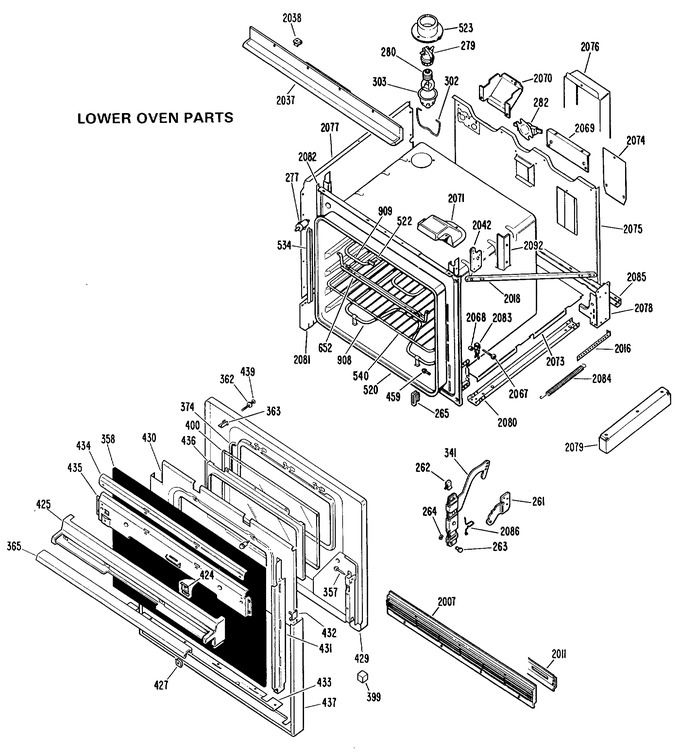

3 - Lower Oven Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
261	WB10X155		Support Hinge Lh		Appelez-nous	-
261	WB10X154		Support Hinge Rh		Appelez-nous	-
263	WG02A00596		Pin Hinge   (Replaces: WB2X6195)				$ 4.20
264	WB2X1082		Pin Hinge Retainer		Appelez-nous	-
265	WB2X3303		Guide Hinge Lever		Appelez-nous	-
265	WB2X1460		Guide Lever Lower Oven		Appelez-nous	-
277	WB24X105		Switch, Oven Light		Appelez-nous	-
279	WB8X5095		Receptacle		Appelez-nous	-
280	WX12X1510		Lamp 40w Appliance		Appelez-nous	-
282	WB24X5248		Temp Limit Switch		Appelez-nous	-
282	WB24X5164		Switch, Thermal		Appelez-nous	-
302	WB2X7694		Bail		Appelez-nous	-
303	WG02F04576		Glass Oven Lamp   (Replaces: WB36X389)				$ 20.65
341	WB10X151		Hinge Lever Rh & Lh		Appelez-nous	-
357	WB1X558		Screw		Appelez-nous	-
358	WB36X556		Glass Black Lower Oven		Appelez-nous	-
358	WB36X557		Glass Black		Appelez-nous	-
362	WB1X119		Washer Screw		Appelez-nous	-
363	WB2X3025		Spacer Door		Appelez-nous	-
365	WB15X154		Grip Asm Handle		Appelez-nous	-
374	WB2X3048		Gasket Window		Appelez-nous	-
399	WB2X3285		Pad Socket		Appelez-nous	-
400	WB36X526		Crystal Window				$ 140.86
424	WB2X3331		Clamp Crystal		Appelez-nous	-
425	WB7X6923		Trim Top Door		Appelez-nous	-
427	WB1X580		Speednut		Appelez-nous	-
429	WB2X3283		Insulation Door		Appelez-nous	-
429	WB55X5316		Door Liner		Appelez-nous	-
430	WB55X403		Guard Insulation		Appelez-nous	-
431	WB2X3338		Brace Side Rh		Appelez-nous	-
431	WB2X3339		Brace Side Lh		Appelez-nous	-
432	WB2X3341		Speed Clip		Appelez-nous	-
433	WB2X3340		Brace Bottom		Appelez-nous	-
434	WB7X1154		Trim Top		Appelez-nous	-
435	WB2X3342		Brace Top		Appelez-nous	-
436	WB2X3284		Frame Window		Appelez-nous	-
437	WB7X1153		Trim Door		Appelez-nous	-
439	WZ04X0426		Screw Mtg Panel		Appelez-nous	-
459	WB1X537		Screw		Appelez-nous	-
520	WB2X3417		Insulation		Appelez-nous	-
520	WB2X1125		Plug Button Cap Tube		Appelez-nous	-
520	WB2X1132		Clip Cap Tube Upper Oven		Appelez-nous	-
520	WB2X2116		Insulation		Appelez-nous	-
520	WB2X3471		Clip Capillary Tube Oven		Appelez-nous	-
520	WB53X5124		Oven Liner		Appelez-nous	-
520	WB53X5134		Oven Liner		Appelez-nous	-
522	WB2X3393		Trim Clip		Appelez-nous	-
523	WB2X7693		Housing Receptacle		Appelez-nous	-
534	WB2X2058		Gasket Silicone		Appelez-nous	-
540	WB48X73		Rack Oven		Appelez-nous	-
652	WB2X1452		Support Broil		Appelez-nous	-
908	WB44X192		Bake Unit 208/240v		Appelez-nous	-
909	UT316		Broil Unit 208/240v   (Replaces: WB44X180)			Immediately	$ 49.95
2007	WB7X7014		Grill		Appelez-nous	-
2011	WB2X3467		Support Trim		Appelez-nous	-
2016	WB2X3289		Link Door Spring		Appelez-nous	-
2018	WB2X2401		Channel Side		Appelez-nous	-
2037	WB7X1124		Trim Middle		Appelez-nous	-
2038	WB2X3298		Speednut		Appelez-nous	-
2042	WB2X3302		Support Double Oven		Appelez-nous	-
2067	WB1X524		Screw		Appelez-nous	-
2068	WB2X1462		Roller		Appelez-nous	-
2069	WB2X3300		Spacer Back		Appelez-nous	-
2070	WB2X3301		Guard Wire		Appelez-nous	-
2071	WB38X62		Vent Asm		Appelez-nous	-
2071	WB38X61		Gasket Vent		Appelez-nous	-
2073	WB59X69		Guard Bottom		Appelez-nous	-
2074	WB59X137		Cover		Appelez-nous	-
2075	WB59X5029		Guard		Appelez-nous	-
2076	WB59X64		Guard Terminal		Appelez-nous	-
2077	WB59X105		Guard Side		Appelez-nous	-
2078	WB59X108		Gusset		Appelez-nous	-
2079	WB2X2063		Spacer Bottom		Appelez-nous	-
2080	WB59X107		Channel Bottom		Appelez-nous	-
2081	WB59X106		Cover Side		Appelez-nous	-
2082	WB56X1326		Frame		Appelez-nous	-
2083	WB2X1461		Spring Hinge Lever		Appelez-nous	-
2084	WB9X151		Spring Door		Appelez-nous	-
2085	WB59X71		Angle Rear		Appelez-nous	-
2086	WB9X150		Spring Stop		Appelez-nous	-
2092	WB2X3299		Angle Rear		Appelez-nous	-
