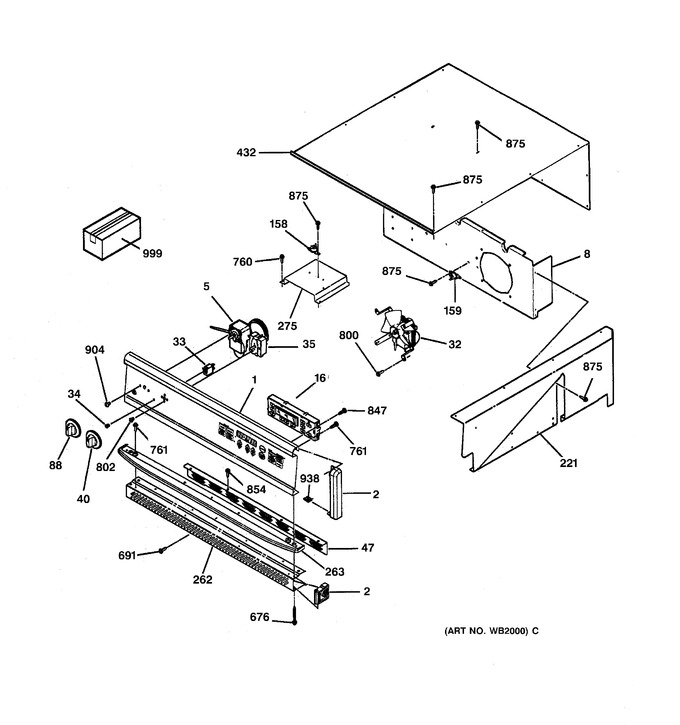

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Control Panel
2 - Body Parts
3 - Upper Door
4 - Lower Door
5 - Door Lock
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB36T10131 | Panel Cntl Asm W/oly |
|
- | |||||
| 2 | WB36K5642 | End Cap-rt-wht |
|
- | |||||
| 2 | WB36K5641 | End Cap-lt-wht |
|
- | |||||
| 2 | WB7K5442 | Vent Trim Cap |
|
- | |||||
| 5 | WB20K5011 | Thermostat |
|
- | |||||
| 8 | WB2K5137 | Fan Support-lower |
|
- | |||||
| 8 | WB2K5257 | Fan Support-upper |
|
- | |||||
| 16 | WB27K5299 | Clock/oven Control |
|
- | |||||
| 32 | WB26K5045 | Fan |
|
- | |||||
| 32 | WB26K5071 | Fan-upper |
|
- | |||||
| 33 | WB25X92 | Indicator Light-top Elem |
|
- | |||||
| 34 | WD1X1444 | Lens (red) |
|
- | |||||
| 35 | WB24K5040 | Selector Switch |
|
- | |||||
| 40 | WB3K5255 | Selector Knob-white |
|
- | |||||
| 47 | WB38K5058 | Vent Barrier |
|
- | |||||
| 88 | WB3K5256 | Thermostat Knob-white |
|
- | |||||
| 158 | WB24K5033 | Limit Switch |
|
- | |||||
| 159 | WG02F04523 | Limit Switch (Replaces: WB24K5085) |
|
$ 28.58 | |||||
| 221 | WB63K5174 | Body Side Extension-lowr |
|
- | |||||
| 221 | WB63K5210 | Body Side Extension-rt |
|
- | |||||
| 221 | WB63K5209 | Body Side Extension-lt |
|
- | |||||
| 262 | WB7K5464 | Verticl Side Trim,rt-wht |
|
- | |||||
| 262 | WB7K5483 | Vent Trim-white |
|
- | |||||
| 262 | WB7K5465 | Verticl Side Trim,lt-wht |
|
- | |||||
| 263 | WB7K5490 | I-brow Trim-lower-white |
|
- | |||||
| 263 | WB7K5445 | I-brow Trim (uppr) Wht |
|
- | |||||
| 275 | WB34T10004 | Cover Vnt Box Asm |
|
- | |||||
| 432 | WB63K5094 | Top Cover |
|
- | |||||
| 676 | WB1K5207 | Trim Screw-white |
|
- | |||||
| 691 | WB1K5223 | Screw-gray |
|
- | |||||
| 691 | WB1K5177 | Trim Screw-black |
|
- | |||||
| 760 | WB1K5028 | Screw |
|
- | |||||
| 761 | WB1K5185 | Screw-white |
|
- | |||||
| 761 | WB1K5029 | Screw-black |
|
- | |||||
| 800 | WB1K5138 | Screw |
|
- | |||||
| 802 | WB1K5123 | Screw |
|
- | |||||
| 847 | WB1X1180 | Screw-black |
|
- | |||||
| 854 | WB1X1328 | Screw-black |
|
- | |||||
| 875 | WG04A00781 | Screw (Replaces: WH2X930) |
|
Immediately | $ 3.57 | ||||
| 904 | WB1X521 | Scr 8/32 Tf Flr 5/16 S |
|
- | |||||
| 938 | WB1K5209 | Clip |
|
- | |||||
| 999 | 31-10200 | Installation Instruction |
|
- | |||||
| 999 | 31-13326 | Mini Manual W/wire Diag. |
|
- | |||||
| 999 | 49-8706 | Use Care Manual |
|
- |
