View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

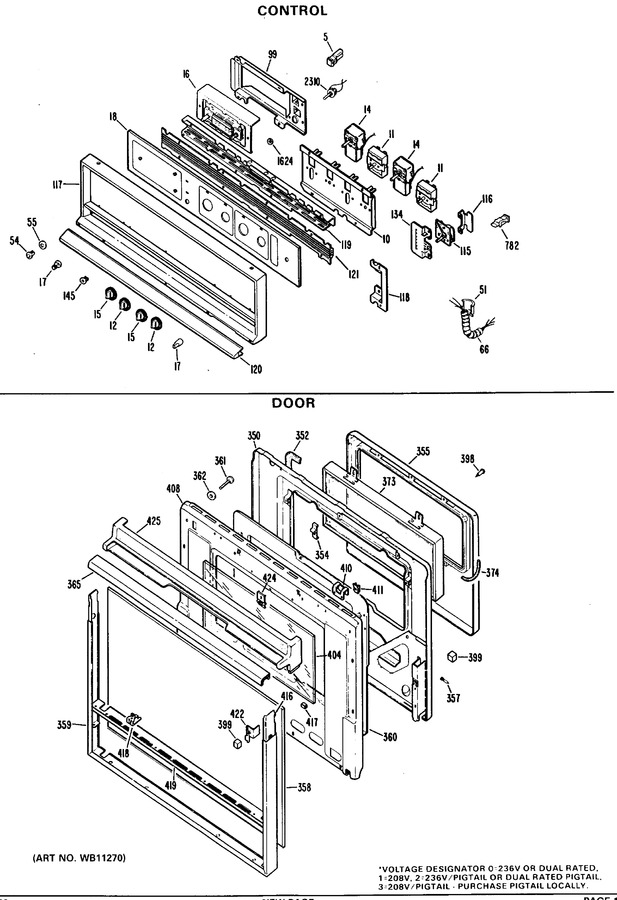

1 - Control
2 - Upper Oven Parts
3 - Lower Oven Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | WB2X1608 | Neon Lamp 118v |
|
$ 31.65 | |||||
| 5 | WB2X3468 | Neon Lamp 240v |
|
- | |||||
| 10 | WB1X5220 | Nut |
|
- | |||||
| 10 | WB2X3453 | Bracket Instrument |
|
- | |||||
| 11 | WB22X5140 | Switch, Oven Low Oven |
|
- | |||||
| 11 | WB22X5143 | Switch, Oven Upper |
|
- | |||||
| 12 | WB3X5733 | Knob Oven Switch |
|
- | |||||
| 12 | WB3X5735 | Knob Thermostat Lower |
|
- | |||||
| 14 | WB2X6937 | Sleeve |
|
- | |||||
| 14 | WB21X5320 | Thermostat, Dual (Replaces: WB24X176) |
|
- | |||||
| 14 | WB24X184 | Thermostat, Dual |
|
- | |||||
| 15 | WB3X5734 | Knob Oven Switch |
|
- | |||||
| 15 | WB3X5736 | Knob Thermostat |
|
- | |||||
| 16 | WB19X5292 | Timer Electronic |
|
- | |||||
| 17 | WB3X5709 | Knob Timer Meat Meter |
|
- | |||||
| 18 | WB2X3232 | Pad |
|
- | |||||
| 18 | WB36X5640 | Crystal |
|
- | |||||
| 51 | WB2X1409 | Sleeve Conduit |
|
- | |||||
| 51 | WB2X3061 | Clamp Conduit |
|
- | |||||
| 54 | WB2X7803 | Bushing Guide |
|
- | |||||
| 55 | WB2X7804 | Retainer Bushing |
|
- | |||||
| 99 | WB2X7720 | Bracket Timer |
|
- | |||||
| 115 | WB20X52 | Circuit Board Asm-thermo |
|
- | |||||
| 116 | WB2X3148 | Circuit Board Bracket |
|
- | |||||
| 117 | WB7X1122 | Trim |
|
- | |||||
| 118 | WB2X2407 | Bracket Meat Thermo |
|
- | |||||
| 119 | WB2X1973 | Deflector |
|
- | |||||
| 120 | WB7X6973 | Nose Control Trim |
|
- | |||||
| 121 | WB7X6974 | Grille |
|
- | |||||
| 134 | WB7X6971 | Faceplate Shaft Asm |
|
- | |||||
| 145 | WB2X7802 | Washer |
|
- | |||||
| 350 | WB2X3314 | Reflector Panel |
|
- | |||||
| 350 | WB2X3312 | Insulation Door |
|
- | |||||
| 350 | WB55X5318 | Door Liner |
|
- | |||||
| 352 | WB2X3138 | Gasket Door |
|
- | |||||
| 354 | WB9X154 | Strike Spring |
|
- | |||||
| 355 | WB2X2276 | Reflector Foil |
|
- | |||||
| 355 | WB2X3313 | Insulation Door |
|
- | |||||
| 357 | WB1X558 | Screw Nail Point |
|
- | |||||
| 358 | WB36X5641 | Glass White |
|
- | |||||
| 359 | WB7X1150 | Trim Frame-lower Door |
|
- | |||||
| 359 | WB7X1152 | Trim Frame-upper Door |
|
- | |||||
| 360 | WB49X354 | Guard Insulation |
|
- | |||||
| 361 | WZ04X0425 | Screw |
|
- | |||||
| 362 | WB1X119 | Washer Contoured |
|
- | |||||
| 365 | WB15X5176 | Grip Asm Handle |
|
- | |||||
| 373 | WB36X5495 | Window Pack |
|
- | |||||
| 374 | WB2X3048 | Gasket Window |
|
- | |||||
| 398 | WB1X600 | Scr Shoulder |
|
- | |||||
| 399 | WB2X3285 | Pad |
|
- | |||||
| 404 | WB36X5595 | Crystal Window |
|
- | |||||
| 408 | WB2X7208 | Reflector Panel |
|
- | |||||
| 408 | WB55X419 | Panel Middle Door |
|
- | |||||
| 410 | WB2X3310 | Bracket Panel |
|
- | |||||
| 411 | WB1X439 | Speednut Bracket |
|
- | |||||
| 416 | WB2X3335 | Brace Side Lh |
|
- | |||||
| 416 | WB2X3334 | Brace Side Rh |
|
- | |||||
| 417 | WB2X3332 | Clip Crystal |
|
- | |||||
| 418 | WB2X3333 | Bracket Crystal |
|
- | |||||
| 419 | WB2X3336 | Brace Bottom |
|
- | |||||
| 422 | WB2X7209 | Clip Door |
|
- | |||||
| 424 | WB2X3331 | Clamp Crystal |
|
- | |||||
| 425 | WB7X7029 | Trim Top Door |
|
- | |||||
| 782 | WB17X5060 | Terminal Blk Asm (2 Pin) |
|
- | |||||
| 1624 | WB1X245 | Nut |
|
- | |||||
| 2310 | WB24X5241 | Switch |
|
- | |||||
| 9999 | 31-0672 | Install Instructions |
|
- | |||||
| 9999 | 49-8003 | Manual Users |
|
- |
