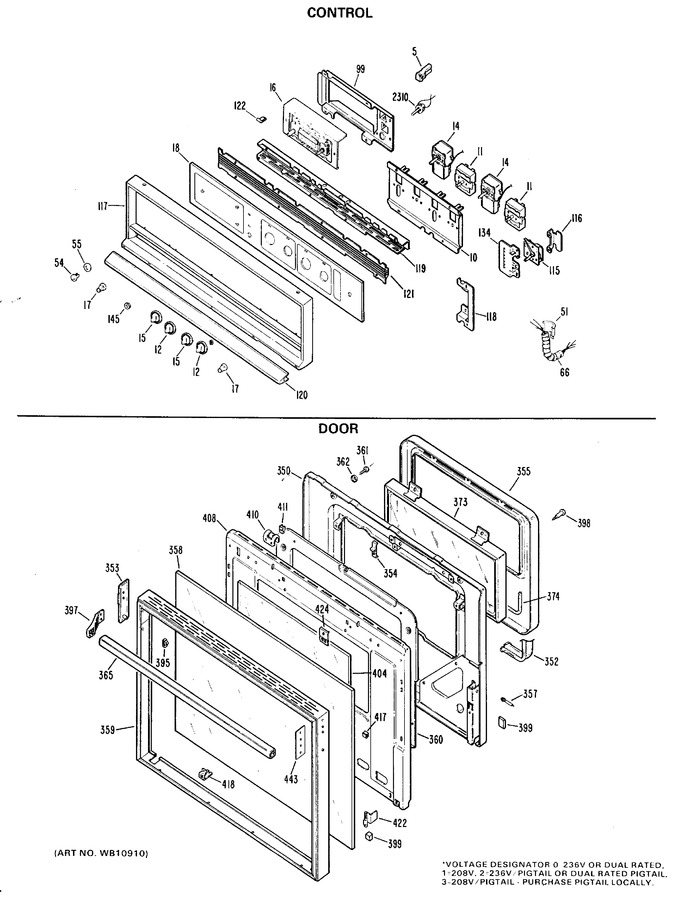

1 - Control
2 - Upper Oven Parts
3 - Lower Oven Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | WB2X3468 | Neon Lamp 240v |
|
- | |||||
| 5 | WB2X1608 | Neon Lamp 118v |
|
$ 31.65 | |||||
| 10 | WB1X5220 | Nut Mtg Instrument Brkts |
|
- | |||||
| 10 | WB2X3453 | Bracket Instrument |
|
- | |||||
| 11 | WB22X5140 | Switch, Oven |
|
- | |||||
| 11 | WB22X5143 | Switch, Oven |
|
- | |||||
| 12 | WB3X5700 | Knob Oven Switch |
|
- | |||||
| 12 | WB3X5704 | Knob Oven Switch |
|
- | |||||
| 14 | WB2X6937 | Sleeve |
|
- | |||||
| 14 | WB24X184 | Thermostat, Dual |
|
- | |||||
| 14 | WB21X5320 | Thermostat, Dual (Replaces: WB24X176) |
|
- | |||||
| 14 | WB2X6494 | Barrier |
|
- | |||||
| 15 | WB3X5702 | Knob Thermostat L.o. |
|
- | |||||
| 15 | WB3X5706 | Knob Thermostat |
|
- | |||||
| 16 | WB19X5292 | Timer Electronic |
|
- | |||||
| 17 | WB3X5709 | Knob Timer & Meat Meter |
|
- | |||||
| 18 | WB2X3232 | Pad Crystal |
|
- | |||||
| 18 | WB36X5626 | Crystal |
|
- | |||||
| 51 | WB2X3061 | Clamp Conduit |
|
- | |||||
| 51 | WB2X1409 | Sleeve Conduit |
|
- | |||||
| 54 | WB2X7803 | Bushing Guide |
|
- | |||||
| 55 | WB2X7804 | Retainer Bushing |
|
- | |||||
| 99 | WB2X7720 | Bracket Timer |
|
- | |||||
| 103 | WB2X1119 | Speednut |
|
- | |||||
| 115 | WB20X52 | Circuit Board Asm Thermo |
|
- | |||||
| 116 | WB2X3148 | Bracket Circuit Board |
|
- | |||||
| 117 | WB7X1122 | Trim |
|
- | |||||
| 118 | WB2X2407 | Bracket Meat Thermo |
|
- | |||||
| 119 | WB2X1973 | Deflector |
|
- | |||||
| 120 | WB7X6973 | Nose Control Trim |
|
- | |||||
| 121 | WB7X6974 | Grille |
|
- | |||||
| 122 | WB2X2006 | Clamp Harness |
|
- | |||||
| 134 | WB7X6971 | Faceplate & Shaft Asm |
|
- | |||||
| 145 | WB2X7802 | Trim Switch |
|
- | |||||
| 350 | WB55X5318 | Door Liner |
|
- | |||||
| 350 | WB2X3312 | Insulation Door |
|
- | |||||
| 350 | WB2X3314 | Reflector Panel |
|
- | |||||
| 352 | WB2X3138 | Gasket Door |
|
- | |||||
| 353 | WB2X7807 | Break Thermal Rh |
|
- | |||||
| 353 | WB2X7806 | Break Thermal Lh |
|
- | |||||
| 354 | WB9X154 | Strike Spring |
|
- | |||||
| 355 | WB2X3313 | Insulation Door |
|
- | |||||
| 355 | WB55X5299 | Panel Inner |
|
- | |||||
| 355 | WB2X2276 | Reflector Foil |
|
- | |||||
| 357 | WB1X558 | Screw |
|
- | |||||
| 358 | WB36X5628 | Glass White |
|
- | |||||
| 359 | WB7X6980 | Trim Door |
|
- | |||||
| 359 | WB7X6979 | Trim Door |
|
- | |||||
| 360 | WB49X354 | Guard Insulation |
|
- | |||||
| 361 | WZ04X0425 | Screw |
|
- | |||||
| 362 | WB1X5753 | Washer Screw |
|
- | |||||
| 365 | WB15X5168 | Handle |
|
- | |||||
| 373 | WB36X5495 | Window Pack |
|
- | |||||
| 374 | WB2X3048 | Gasket Window |
|
- | |||||
| 395 | WB2X3053 | Clip Mtg Door Trims |
|
- | |||||
| 397 | WB7X6978 | End Cap |
|
- | |||||
| 397 | WB1X5754 | Screw Mtg End Cap |
|
- | |||||
| 397 | WZ04X0384 | Screw Mtg End Cap |
|
- | |||||
| 398 | WB1X600 | Screw Shoulder |
|
- | |||||
| 399 | WB2X3285 | Pad |
|
- | |||||
| 404 | WB36X5595 | Crystal Window |
|
- | |||||
| 408 | WB55X5330 | Panel Middle Door |
|
- | |||||
| 410 | WB2X3310 | Bracket Panel |
|
- | |||||
| 411 | WB1X439 | Speednut Bracket |
|
- | |||||
| 417 | WB2X3332 | Clip Crystal |
|
- | |||||
| 418 | WB2X3333 | Bracket Crystal |
|
- | |||||
| 422 | WB2X7209 | Clip Door |
|
- | |||||
| 424 | WB2X3331 | Clamp Crystal |
|
- | |||||
| 443 | WB2X7805 | Clip Handle |
|
- | |||||
| 459 | WB1X537 | Screw |
|
- | |||||
| 461 | WB1X593 | Screw Mtg Clip |
|
- | |||||
| 1201 | WS01A01150 | Screw (Replaces: WB1X5364) |
|
$ 3.97 | |||||
| 1201 | WB1X575 | Screw Mtg Case Top |
|
- | |||||
| 1624 | WB1X245 | Nut Mtg Light Switch |
|
- | |||||
| 1645 | WB2X7006 | Clamp Harness |
|
- | |||||
| 2310 | WB24X5241 | Switch |
|
- | |||||
| 32767 | 49-4763 | Manual Users |
|
- | |||||
| 32767 | WB2X7802 | Washer |
|
- | |||||
| 32767 | WZ02X0528 | Scr 8-32 M Phr 3/16 S |
|
- | |||||
| 32767 | WB1X5550 | Scr 8/32 Tf Flr 1/4 S |
|
- | |||||
| 32767 | WZ04X0228 | Scr 8-18 B Rdr 3/16 S |
|
- | |||||
| 32767 | WB1X500 | Terminal Screw |
|
- | |||||
| 32767 | WB1X525 | Washer |
|
- | |||||
| 32767 | WB2X3152 | Pad |
|
- | |||||
| 32767 | WZ04X0396 | Scr 10-16 B Hxw 1/4 S |
|
- | |||||
| 32767 | WB1X438 | Screw & Washer Asm |
|
- | |||||
| 32767 | WZ04X0372 | Scr 6-20 Ab Hxw 3/8 S |
|
- | |||||
| 32767 | WB17X171 | Terminal Male & Female |
|
- | |||||
| 32767 | WB2X2115 | Insulation |
|
- | |||||
| 32767 | WB9X88 | Lockwasher |
|
- | |||||
| 32767 | WZ07X0035 | Nut Hex |
|
- | |||||
| 32767 | 31-0652 | Install Instructions |
|
- | |||||
| 32767 | WB1X549 | Scr 10-12 A Ihw 3/8 S |
|
- | |||||
| 32767 | WB1X284 | Scr 6-20 Ba Ihw 3/8 S |
|
- | |||||
| 32767 | 31-0543 | Pm Manual Mini |
|
- | |||||
| 32767 | WZ04X0345 | Screw |
|
- | |||||
| 32767 | WB1X528 | Speednut |
|
- | |||||
| 32767 | WS01A02255 | Scr 8-18 Ba Ihw 3/8 S (Replaces: WB1X536) |
|
$ 3.97 | |||||
| 32767 | WZ06X0038 | Scr 8-18 Ab Hxw 5/8 S |
|
- | |||||
| 32767 | WZ04X0397 | Scr 6-32 C Flr 5/16 S |
|
- | |||||
| 32767 | WZ04X0255 | Scr 8-18x1 Ab Ovr 1/2 S |
|
- | |||||
| 32767 | WB2X3251 | Insulation |
|
- | |||||
| 32767 | WZ05X0134 | Scr 8-32 T Hxw 3/8 S |
|
- | |||||
| 32767 | WB2X3191 | Gasket |
|
- | |||||
| 32767 | WZ05X0234 | Screw Mt Switch |
|
- | |||||
| 32767 | WZ10X0016 | Washer |
|
- | |||||
| 32767 | WB2X1659 | Speednut |
|
- | |||||
| 32767 | WB2X2116 | Insulation |
|
- | |||||
| 32767 | WB1X448 | Washer |
|
- | |||||
| 32767 | WB1X422 | Scr 8-18 T Ihw 1/2 S |
|
- | |||||
| 32767 | WZ05X0132 | Scr 8-32 T Hxw 5/16 S |
|
- | |||||
| 32767 | WZ05X0124 | Scr 4-40 D Hxw 5/8 S |
|
- |
