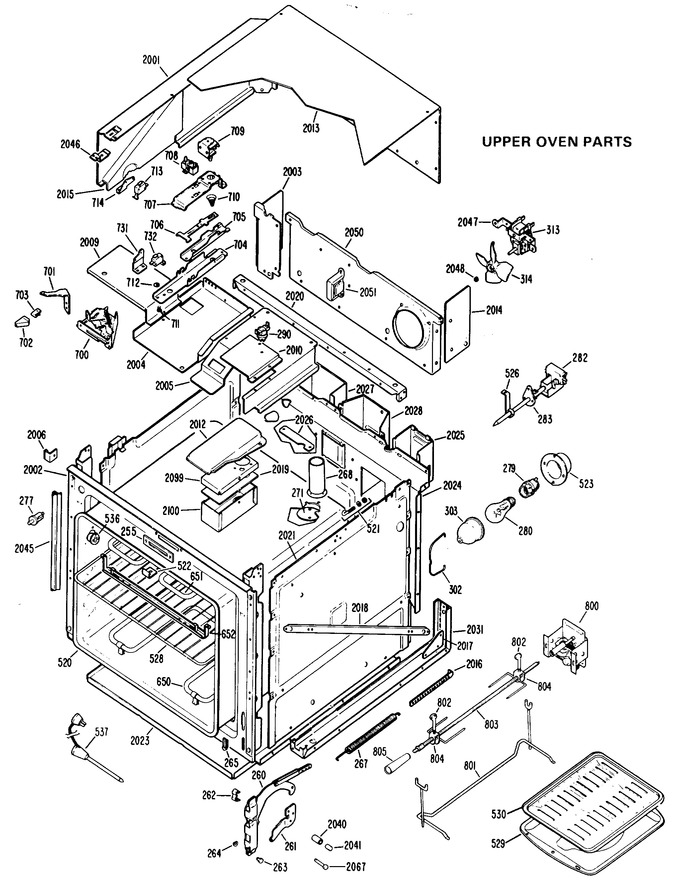

2 - Upper Oven Parts
3 - Lower Oven Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 255 | WB7X7036 | Trim Latch |
|
- | |||||
| 260 | WB10X158 | Hinge Lever Rh & Lh |
|
- | |||||
| 261 | WB10X154 | Support Hinge Rh |
|
- | |||||
| 261 | WB10X155 | Support Hinge Lh |
|
- | |||||
| 263 | WG02A00596 | Pin Hinge (Replaces: WB2X6195) |
|
$ 4.20 | |||||
| 264 | WB2X1082 | Pin Hinge Retainer |
|
- | |||||
| 265 | WB2X3303 | Guide Hinge Lever |
|
- | |||||
| 267 | WB9X156 | Spring Door |
|
- | |||||
| 268 | WB29X5018 | Smoke Elim & Tube Asm |
|
- | |||||
| 271 | WB2X818 | Cover Vent |
|
- | |||||
| 277 | WB24X105 | Switch, Oven Light |
|
- | |||||
| 279 | WB8X5095 | Receptacle |
|
- | |||||
| 280 | WX12X1510 | Lamp 40w Appliance |
|
- | |||||
| 282 | WB24X5164 | Switch, Thermal |
|
- | |||||
| 283 | WB2X3163 | Gasket |
|
$ 22.50 | |||||
| 283 | WB2X3164 | Plate |
|
- | |||||
| 290 | WB24X199 | Switch Thermal Fan |
|
- | |||||
| 302 | WB2X7694 | Bail |
|
- | |||||
| 303 | WG02F04576 | Glass Oven Lamp (Replaces: WB36X389) |
|
$ 20.65 | |||||
| 313 | WB26X5052 | Motor, Fan |
|
- | |||||
| 314 | WB2X2001 | Blade Fan, Upper |
|
- | |||||
| 314 | WB2X2911 | Blade Fan, Lower |
|
- | |||||
| 520 | WB2X1925 | Cover Roto Opening |
|
- | |||||
| 520 | WB2X1125 | Plug Button Cap Tube |
|
- | |||||
| 520 | WB53X5124 | Oven Liner |
|
- | |||||
| 520 | WB2X3471 | Clip Capillary Tube Oven |
|
- | |||||
| 520 | WB2X2116 | Insulation |
|
- | |||||
| 520 | WB2X1132 | Clip Cap Tube Upper Oven |
|
- | |||||
| 521 | WB9X88 | Hook Package |
|
- | |||||
| 522 | WB2X3393 | Trim Clip |
|
- | |||||
| 523 | WB2X7693 | Housing Receptacle |
|
- | |||||
| 526 | WB2X3165 | Hanger |
|
- | |||||
| 528 | WB48X82 | Rack Oven |
|
- | |||||
| 529 | WB49X5380 | Broil Pan |
|
- | |||||
| 530 | 4396923 | Broiler Pan Rack (Replaces: WB48X5093) |
|
Immediately | $ 60.71 | ||||
| 536 | WB20X5057 | Receptacle Asm |
|
- | |||||
| 537 | WB20X5058 | Probe |
|
- | |||||
| 650 | UB323 | Bake Unit 208/240v (Replaces: WB44X200) |
|
Immediately | $ 41.80 | ||||
| 651 | UT316 | Broil Unit 208/240v (Replaces: WB44X185) |
|
Immediately | $ 49.95 | ||||
| 652 | WB2X1452 | Support Broil |
|
- | |||||
| 700 | WB14X5036 | Latch |
|
- | |||||
| 701 | WB15X151 | Handle Latch |
|
- | |||||
| 701 | WB15X150 | Handle Latch |
|
- | |||||
| 702 | WB3X5732 | Knob Latch |
|
- | |||||
| 703 | WG02A00753 | Retainer Knob (Replaces: WB2X2030) |
|
$ 4.20 | |||||
| 704 | WB2X7717 | Channel Latch |
|
- | |||||
| 705 | WB2X7718 | Channel Locking |
|
- | |||||
| 706 | WB2X7708 | Pawl Locking |
|
- | |||||
| 707 | WB2X7716 | Plate Mounting |
|
- | |||||
| 708 | WB24X183 | Switch, Latch |
|
- | |||||
| 709 | WB24X197 | Solenoid |
|
- | |||||
| 709 | WB24X5097 | Solenoid |
|
- | |||||
| 710 | WB9X148 | Spring |
|
- | |||||
| 711 | WB2X6212 | Pivot Stud |
|
- | |||||
| 712 | WB2X1800 | Retainer Ring |
|
- | |||||
| 713 | WB24X5255 | Switch |
|
- | |||||
| 714 | WB2X3475 | Bracket Switch |
|
- | |||||
| 731 | WB2X7719 | Bracket Switch |
|
- | |||||
| 732 | WB24X5238 | Switch |
|
- | |||||
| 800 | WB26X5053 | Motor Rotisserie |
|
- | |||||
| 801 | WB48X62 | Support Spit |
|
- | |||||
| 802 | WB1X272 | Screw Thumb |
|
- | |||||
| 803 | WB2X1166 | Spitblade |
|
- | |||||
| 804 | WB2X1167 | Skewer Asm |
|
- | |||||
| 805 | WB15X80 | Handle Spit |
|
- | |||||
| 2001 | WB55X304 | Extension Side Rh |
|
- | |||||
| 2001 | WB55X305 | Extension Side Lh |
|
- | |||||
| 2002 | WB56X6066 | Frame Front |
|
- | |||||
| 2003 | WB2X2858 | Extension Air Shield |
|
- | |||||
| 2004 | WB59X5028 | Insulation Guard Lh |
|
- | |||||
| 2005 | WB59X134 | Insulation Guard Rh |
|
- | |||||
| 2006 | WB2X2104 | Spacer |
|
- | |||||
| 2009 | WB59X165 | Guard Wire |
|
- | |||||
| 2010 | WB2X3173 | Cover Vent |
|
- | |||||
| 2012 | WB38X75 | Vent Asm |
|
- | |||||
| 2013 | WB49X330 | Case Top |
|
- | |||||
| 2014 | WB2X2847 | Shield Wire |
|
- | |||||
| 2015 | WB2X2402 | Guard Wire |
|
- | |||||
| 2016 | WB2X3289 | Link Door Spring |
|
- | |||||
| 2017 | WB2X2861 | Gusset |
|
- | |||||
| 2018 | WB2X2401 | Channel Side |
|
- | |||||
| 2019 | WB2X3292 | Gasket |
|
- | |||||
| 2020 | WB2X2083 | Brace Latch |
|
- | |||||
| 2021 | WB59X164 | Side Inner |
|
- | |||||
| 2023 | WB55X302 | Guard Bottom |
|
- | |||||
| 2024 | WB49X327 | Back Asm |
|
- | |||||
| 2025 | WB2X2845 | Cover Light |
|
- | |||||
| 2026 | WB2X2842 | Plate Adapter |
|
- | |||||
| 2027 | WB2X3156 | Guard Asm |
|
- | |||||
| 2028 | WB49X268 | Guard Terminal |
|
- | |||||
| 2031 | WB59X167 | Channel Bottom |
|
- | |||||
| 2040 | WB2X3305 | Sleeve Roller |
|
- | |||||
| 2041 | WB2X3304 | Roller |
|
- | |||||
| 2045 | WB2X3422 | Gasket |
|
- | |||||
| 2046 | WB2X3291 | Bracket Trim |
|
- | |||||
| 2047 | WB2X2846 | Bracket Fan |
|
- | |||||
| 2048 | WR2X3198 | Ring Compression |
|
- | |||||
| 2050 | WB55X303 | Air Shield |
|
- | |||||
| 2051 | WB20X57 | Transformer |
|
- | |||||
| 2067 | WB1X524 | Screw |
|
- | |||||
| 2099 | WB2X7714 | Cover Vent Duct |
|
- | |||||
| 2100 | WB2X7715 | Duct Vent |
|
- |
