SELECT A DIAGRAM
1 - Component Group
2 - Component Group
3 - Component Group
New Model Search:

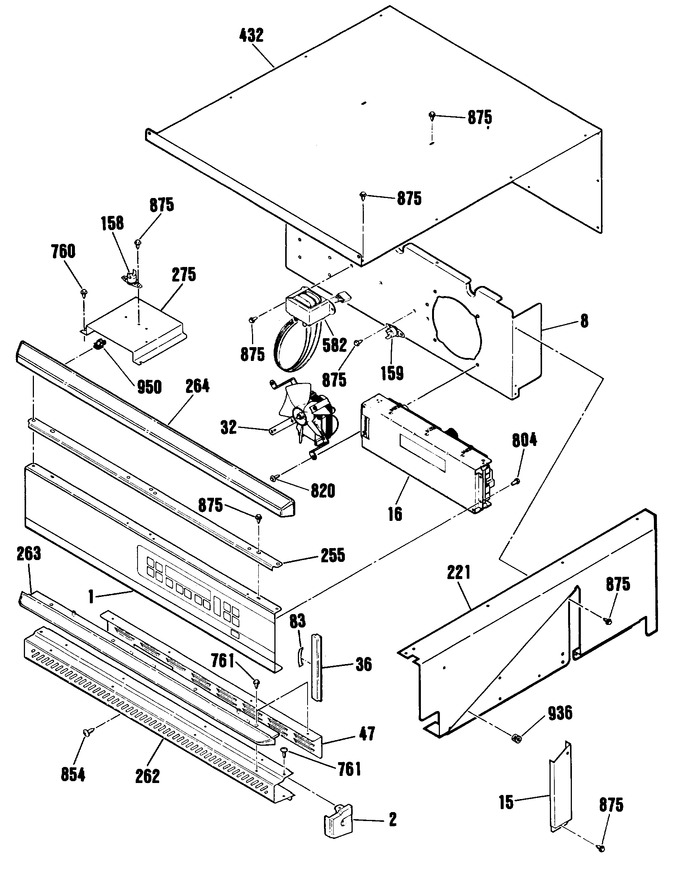

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB36K5066 | Control Panel |
|
- | |||||
| 2 | WB36K5102 | Vent Trim End Cap-rt-blk |
|
- | |||||
| 2 | WB36K5101 | Vent Trim End Cap-lt-blk |
|
- | |||||
| 8 | WB2K5137 | Fan Support-lower |
|
- | |||||
| 8 | WB2K5257 | Fan Support-upper |
|
- | |||||
| 15 | WB34K5090 | Meat Probe Wire Cover |
|
- | |||||
| 16 | WB27K5120 | Clock/oven Control |
|
- | |||||
| 32 | WB26X113 | Fan Asm-lower |
|
- | |||||
| 32 | WB26K5045 | Fanasm-upper |
|
- | |||||
| 36 | WB7K5185 | Trim Cntl Pnl End-rt-blk |
|
- | |||||
| 36 | WB7K5184 | Trim Cntl Pnl End-lt-blk |
|
- | |||||
| 47 | WB38K5029 | Vent Barrier |
|
- | |||||
| 83 | WB9K5008 | End Trim Spring |
|
- | |||||
| 126 | WB3K5077 | Plug Button |
|
- | |||||
| 158 | WB24K5033 | Limit Switch |
|
- | |||||
| 159 | WG02F04523 | Limit Switch (Replaces: WB24K5085) |
|
$ 28.58 | |||||
| 221 | WB63K5093 | Cab Side Extension-low |
|
- | |||||
| 221 | WB63K5083 | Side Extension-lt-upper |
|
- | |||||
| 221 | WB63K5082 | Side Extenstion-rt-upper |
|
- | |||||
| 242 | WB38K5041 | Air Channel |
|
- | |||||
| 255 | WB7K5280 | Overlay Trim |
|
- | |||||
| 262 | WB7K5101 | Vent Trim |
|
- | |||||
| 262 | WB7K5275 | Vert Side Trim-lt-blk |
|
- | |||||
| 262 | WB7K5276 | Vert Side Trim-rt-blk |
|
- | |||||
| 264 | WB7K5272 | Control Panel Top Trim |
|
- | |||||
| 268 | WB7K5256 | Lower Front Frame Trim |
|
- | |||||
| 275 | WB34K5078 | Vent Box Cover |
|
- | |||||
| 432 | WB63K5081 | Top Cover |
|
- | |||||
| 582 | WB20K5008 | Transformer |
|
- | |||||
| 760 | WB1K5028 | Screw |
|
- | |||||
| 761 | WB1K5029 | Screw-black |
|
- | |||||
| 803 | WB1X1176 | Screw-black |
|
- | |||||
| 804 | WB1X1127 | Screw |
|
- | |||||
| 820 | WB1X1424 | Screw |
|
- | |||||
| 854 | WB1X1328 | Screw-black |
|
- | |||||
| 875 | WG04A00781 | Scr 8-18 Ab Hxw 3/8 S (Replaces: WH2X930) |
|
Immediately | $ 3.57 | ||||
| 936 | WB1K5065 | Snap Bushing |
|
- | |||||
| 950 | WB1K5135 | Cable Clip |
|
- | |||||
| 999 | 49-8275 | Use & Care Manual |
|
- | |||||
| 999 | WB18K5451 | Main Wire Harness |
|
- | |||||
| 999 | WB18K5217 | Latch Motor W Harness-lo |
|
- | |||||
| 999 | 31-10119 | Installation Instruciton |
|
- | |||||
| 999 | WB18K5210 | Lock Mtr Wire Harness |
|
- | |||||
| 999 | 31-13131 | Mini Manual/wire Diagram |
|
- |
