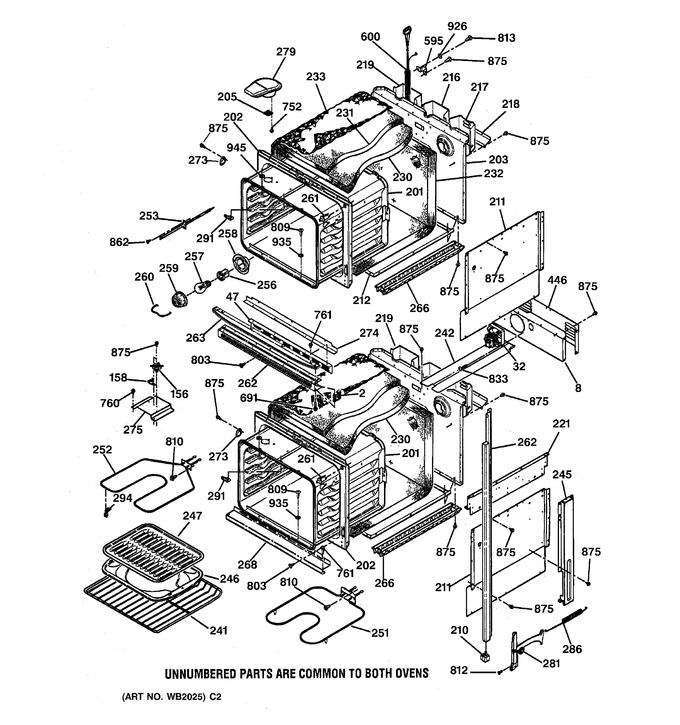

SELECT A DIAGRAM

1 - Control Panel


2 - Body Parts


3 - Oven Door


4 - Door Lock


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WB36K5638		End Cap-right-black		Appelez-nous	-
2	WB36K5639		End Cap-left-black		Appelez-nous	-
2	WB7K5442		Cap Vent Trim		Appelez-nous	-
8	WB2K5257		Fan Support-up		Appelez-nous	-
8	WB2K5137		Fan Support-lo		Appelez-nous	-
32	WB26K5072		Fan Assembly-lo		Appelez-nous	-
32	WB26K5071		Fan-up		Appelez-nous	-
47	WB38K5058		Vent Barrier		Appelez-nous	-
156	WB24K5049		Switch Limit		Appelez-nous	-
158	WB24K5033		Switch Limit		Appelez-nous	-
201	WB63K5086		Oven Body		Appelez-nous	-
202	WB63K5084		Front Frame Asm		Appelez-nous	-
203	WB63K5167		Back Main		Appelez-nous	-
205	WB6K5026		Smoke Elim Screen		Appelez-nous	-
210	WB7K5450		Cap Btm Trim (lt-blk)		Appelez-nous	-
210	WB7K5451		Cap Btm Trim (rt-blk)		Appelez-nous	-
211	WB63K5173		Body Side		Appelez-nous	-
212	WB63K5080		Cabinet Bottom		Appelez-nous	-
216	WB34K5069		Wire Cover-element		Appelez-nous	-
217	WB34K5070		Wire Cover-light		Appelez-nous	-
218	WB34K5067		Wire Cover Bottom		Appelez-nous	-
219	WB34K5082		Wire Cover-conduit		Appelez-nous	-
221	WB63K5210		Body Side Extnsion-rt		Appelez-nous	-
221	WB63K5174		Body Side Extension-lowr		Appelez-nous	-
221	WB63K5209		Body Side Extnsion-lt		Appelez-nous	-
230	WB35K5048		Insulation-wrapper-inner		Appelez-nous	-
231	WB35K5068		Insulation Wrapper-outer		Appelez-nous	-
232	WB35K5089		Insulation Back & Bttm		Appelez-nous	-
233	WB34K5080		Heat Reflector		Appelez-nous	-
241	WG02L02645		Oven Rack   (Replaces: WB48K5006)				$ 80.53
242	WB38K5041		Air Channel		Appelez-nous	-
245	WB2K5139		Support Vertical Side		Appelez-nous	-
246	WB48M3		Broiler Pan		Appelez-nous	-
247	WB48K5018		Broiler Pan Grid		Appelez-nous	-
251	WB44K5013		Bake Element				$ 113.30
252	WG02F05475		Broil Element   (Replaces: WB44K5009)				$ 115.36
253	WB21X5318		Sensor		Appelez-nous	-
256	WB8K5029		Receptacle		Appelez-nous	-
257	BUY LOCAL		Lamp Oven		Appelez-nous	-
258	WB2X7693		Oven Light Cup		Appelez-nous	-
259	WG02F04576		Ov Lamp Lens   (Replaces: WB36X389)				$ 20.65
260	WB2X7694		Light Lens Bail		Appelez-nous	-
261	318394803		Switch Oven Light (jam)   (Replaces: WB24K5061)			Immediately	$ 49.14
262	WB7K5486		Trim Vert Side Rt (blk)		Appelez-nous	-
262	WB7K5487		Trim Vert Side Lt (blk)		Appelez-nous	-
262	WB7K5481		Trim Vent (blk)		Appelez-nous	-
263	WB7K5488		I-brow Trim-lower-black		Appelez-nous	-
263	WB7K5440		I-brow Trim Upper Black		Appelez-nous	-
266	WB63K5079		Base Rail		Appelez-nous	-
268	WB7K5449		Bottom Trim-black		Appelez-nous	-
273	WB2K5365		Cover Hole		Appelez-nous	-
274	WB7K5489		Vent Trim Extension-blk		Appelez-nous	-
275	WB34K5078		Vent Box Cover		Appelez-nous	-
279	WB38K5028		Vent Box Asm		Appelez-nous	-
281	WB14K5006		Ov Dr Hinge-rt		Appelez-nous	-
281	WB14K5007		Ov Dr Hinge-lt		Appelez-nous	-
286	WB9K5022		Oven Door Spring		Appelez-nous	-
291	WB2X9152		Cover		Appelez-nous	-
294	WS01A01413		Broil Element Support   (Replaces: WB2X9719)				$ 11.71
446	WB34K5089		Wire Cover-center		Appelez-nous	-
595	WB2K5126		Conduit Clamp		Appelez-nous	-
600	WB18K5215		Wire Conduit Asm-double		Appelez-nous	-
691	WB1K5177		Trim Screw-black		Appelez-nous	-
752	WG02A00488		Screw   (Replaces: WB1K5200)				$ 4.20
760	WB1K5028		Screw		Appelez-nous	-
761	WB1K5062		Screw-brt. Ni.		Appelez-nous	-
761	WB1K5029		Screw-black		Appelez-nous	-
803	WB1K5162		Screw-black		Appelez-nous	-
809	WG02A00781		Screw St 10abx.500 Tr Ni   (Replaces: WB1X1137)				$ 15.88
810	WB1X1253		Screw 10-32 X 17/32		Appelez-nous	-
812	WB1K5191		Screw Tc 10-32x.625(zn)		Appelez-nous	-
813	WS01A00445		Sc Tf 10-32x.437 Hex Gr   (Replaces: WB1X1261)				$ 13.90
833	WB1X1131		Screw		Appelez-nous	-
862	WB1X1178		Screw Tc6-32x.250hexni		Appelez-nous	-
875	WG04A00781		Scr 8-18 Ab Hxw 3/8 S   (Replaces: WH2X930)			Immediately	$ 3.97
926	WB1X1260		Washer Ground		Appelez-nous	-
935	WB1K5174		Washer		Appelez-nous	-
945	WB1K5046		Lock Washer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
