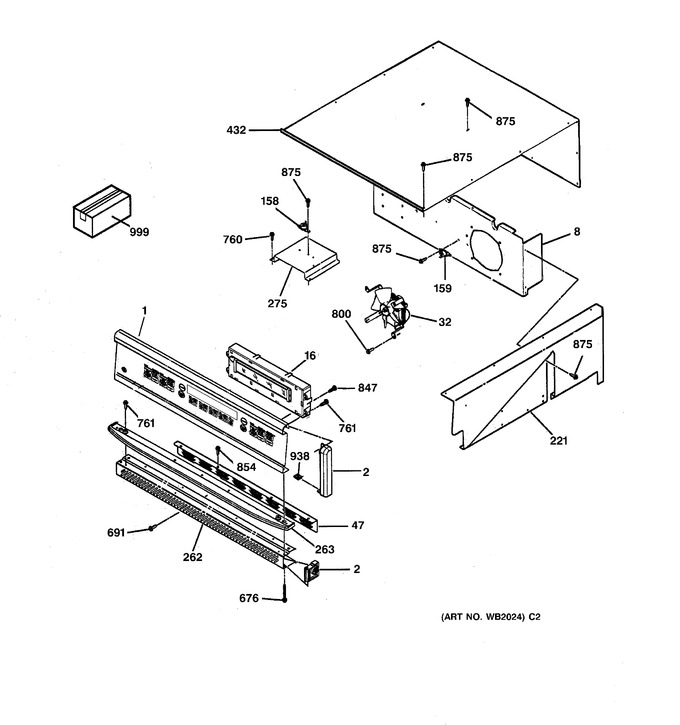

SELECT A DIAGRAM

1 - Control Panel


2 - Oven Body


3 - Oven Door


4 - Door Lock


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB36T10149		Panel Cntl Asm W/oly		Appelez-nous	-
2	WB7K5442		Vent Trim Cap		Appelez-nous	-
2	WB36K5638		End Cap-right-black		Appelez-nous	-
2	WB36K5639		End Cap-left-black		Appelez-nous	-
8	WB2K5257		Fan Support-upper		Appelez-nous	-
8	WB2K5137		Fan Support-lower		Appelez-nous	-
16	WB27K5318		Clock/oven Control		Appelez-nous	-
32	WB26K5072		Fan		Appelez-nous	-
32	WB26K5071		Fan-upper		Appelez-nous	-
47	WB38K5058		Vent Barrier		Appelez-nous	-
158	WB24K5033		Limit Switch		Appelez-nous	-
159	WG02F04523		Limit Switch   (Replaces: WB24K5085)				$ 28.58
221	WB63K5210		Body Side Extension-rt		Appelez-nous	-
221	WB63K5209		Body Side Extension-lt		Appelez-nous	-
221	WB63K5174		Body Side Extension-lowr		Appelez-nous	-
262	WB7K5481		Vent Trim-black		Appelez-nous	-
262	WB7K5486		Vert Side Trim-rt-blk		Appelez-nous	-
262	WB7K5487		Vert Side Trim-lt-blk		Appelez-nous	-
263	WB7K5440		I-brow Trim Upper Black		Appelez-nous	-
263	WB7K5488		I-brow Trim-lower-black		Appelez-nous	-
275	WB34K5078		Vent Box Cover		Appelez-nous	-
432	WB63K5094		Top Cover		Appelez-nous	-
676	WB1K5206		Trim Screw-black		Appelez-nous	-
691	WB1K5177		Trim Screw-black		Appelez-nous	-
760	WB1K5028		Screw		Appelez-nous	-
761	WB1K5029		Screw-black		Appelez-nous	-
800	WB1K5138		Screw		Appelez-nous	-
847	WB1X1180		Screw-black		Appelez-nous	-
854	WB1X1164		Screw		Appelez-nous	-
875	WG04A00781		Screw   (Replaces: WH2X930)			Immediately	$ 3.57
938	WB1K5209		Clip		Appelez-nous	-
999	31-13334		Mini Manual W/wire Diag.		Appelez-nous	-
999	49-8708		Use Care Manual		Appelez-nous	-
999	31-10200		Installation Instruction		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
