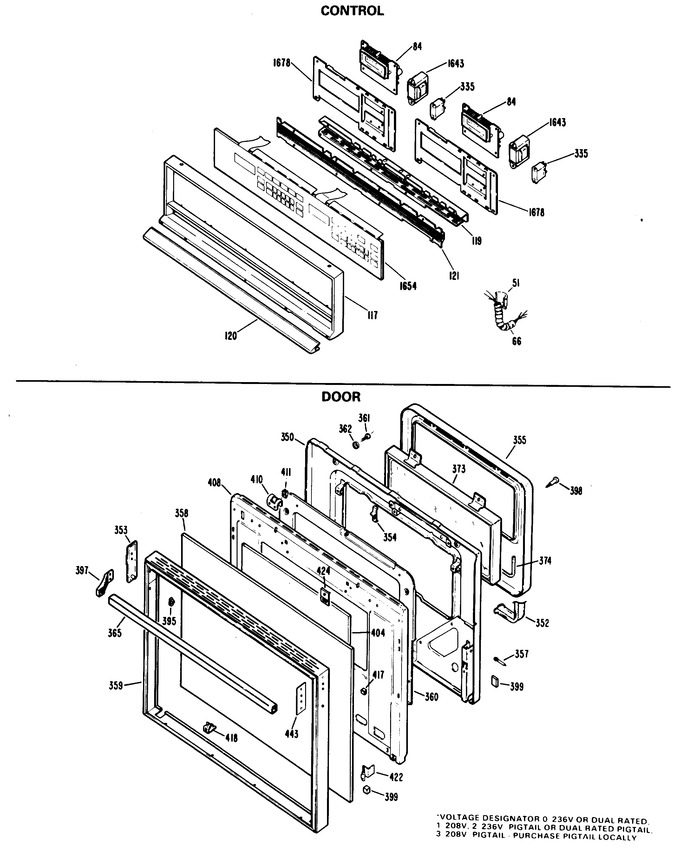

1 - Control
2 - Upper Oven Parts
3 - Lower Oven Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | WB1X5220 | Nut Mtg Instrument Brkts |
|
- | |||||
| 14 | WB2X6494 | Barrier |
|
- | |||||
| 18 | WB2X3232 | Pad Crystal |
|
- | |||||
| 51 | WB2X1409 | Sleeve Conduit |
|
- | |||||
| 51 | WB2X3061 | Clamp Conduit |
|
- | |||||
| 66 | OBT LOCAL | Flexible Conduit 1/2"x59 |
|
- | |||||
| 84 | WB27X5417 | Smart Board Control |
|
- | |||||
| 117 | WB7X1122 | Trim |
|
- | |||||
| 119 | WB2X1973 | Deflector |
|
- | |||||
| 120 | WB7X6973 | Nose Control Trim |
|
- | |||||
| 121 | WB7X6974 | Grille |
|
- | |||||
| 335 | WB21X5222 | Relay Latch |
|
- | |||||
| 350 | WB2X3314 | Reflector Panel |
|
- | |||||
| 350 | WB55X5318 | Door Liner |
|
- | |||||
| 350 | WB2X3312 | Insulation Door |
|
- | |||||
| 352 | WB2X3138 | Gasket Door |
|
- | |||||
| 353 | WB2X7807 | Break Thermal Rh |
|
- | |||||
| 353 | WB2X7806 | Break Thermal Lh |
|
- | |||||
| 354 | WB9X154 | Strike Spring |
|
- | |||||
| 355 | WB2X3313 | Insulation Door |
|
- | |||||
| 355 | WB2X2276 | Reflector Foil |
|
- | |||||
| 355 | WB55X5338 | Panel Inner |
|
- | |||||
| 357 | WB1X558 | Screw |
|
- | |||||
| 358 | WB36X5628 | Glass White |
|
- | |||||
| 359 | WB7X6980 | Trim Door |
|
- | |||||
| 359 | WB7X6979 | Trim Door |
|
- | |||||
| 360 | WB49X354 | Guard Insulation |
|
- | |||||
| 361 | WZ04X0425 | Screw |
|
- | |||||
| 362 | WB1X119 | Washer Screw |
|
- | |||||
| 365 | WB15X5168 | Handle |
|
- | |||||
| 373 | WB36X448 | Window |
|
- | |||||
| 374 | WB2X3048 | Gasket Window |
|
- | |||||
| 395 | WB2X3053 | Clip Mtg Door Trims |
|
- | |||||
| 397 | WZ04X0384 | Screw Mtg End Cap |
|
- | |||||
| 397 | WB7X6978 | End Cap |
|
- | |||||
| 397 | WB1X5754 | Screw Mtg End Cap |
|
- | |||||
| 398 | WB1X600 | Scr Shoulder |
|
- | |||||
| 399 | WB2X3285 | Pad Socket |
|
- | |||||
| 404 | WB36X5595 | Crystal Window |
|
- | |||||
| 408 | WB55X5330 | Panel Middle Door |
|
- | |||||
| 410 | WB2X3310 | Bracket Panel |
|
- | |||||
| 411 | WB1X439 | Speednut Bracket |
|
- | |||||
| 417 | WB2X3332 | Clip Crystal |
|
- | |||||
| 418 | WB2X3333 | Bracket Crystal |
|
- | |||||
| 422 | WB2X7209 | Clip Door |
|
- | |||||
| 424 | WB2X3331 | Clamp Crystal |
|
- | |||||
| 443 | WB2X7805 | Clip Handle |
|
- | |||||
| 456 | WZ04X0345 | Screw |
|
- | |||||
| 461 | WB1X593 | Screw Mtg Clip |
|
- | |||||
| 541 | WB2X7300 | Cover |
|
- | |||||
| 1201 | WS01A01150 | Screw (Replaces: WB1X5364) |
|
$ 3.97 | |||||
| 1201 | WB1X575 | Screw Mtg Case Top |
|
- | |||||
| 1643 | WB27X5286 | Transformer |
|
- | |||||
| 1654 | WB27X5470 | Key Panel |
|
- | |||||
| 1678 | WB2X7862 | Bracket Control |
|
- | |||||
| 32767 | 49-4935 | Manual Users |
|
- | |||||
| 32767 | 31-0672 | Install Instructions |
|
- |
