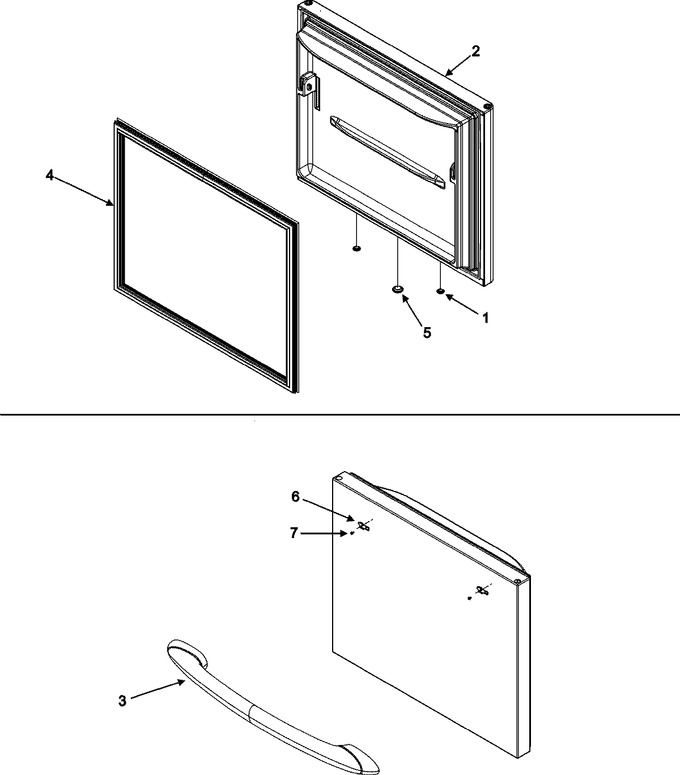

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67004838		Plug, Button (blk)   (Replaces: 67001016)	10			$ 10.68
2	67004052		Door Assy., Frz. Foam (stnls)	10	Appelez-nous	-
3	67003919		Handle, Assembly (stnls)	10	Appelez-nous	-
3	67003876		Card, Handle Release	10			$ 6.43
4	WPW10436247		Gasket, Fz Door (blk)   (Replaces: 67003551)	10		Immediately	$ 355.53
5	A3080001		Plug, Button (blk)	10	Appelez-nous	-
6	WP67007126		Clip, Handle Keyhole   (Replaces: 67007126)	13			$ 7.88
6	WP67006852		Clip,handle Butterfly   (Replaces: 12723002)	10			$ 25.47
7	WP12992902		Screw, Handle Shoulder   (Replaces: 12992902)	13			$ 11.07
7	WP7101P126-60		Screw, Sm No.10   (Replaces: 67003800)	10		Immediately	$ 7.61
