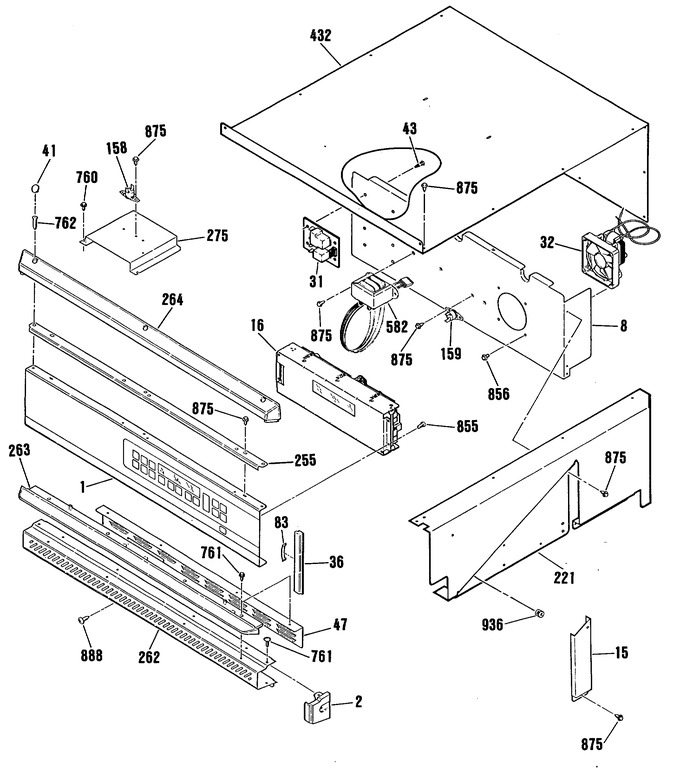

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB36K5240 | Control Panel Asm |
|
- | |||||
| 2 | WB36K5101 | Vent Trim End Cap-lt-blk |
|
- | |||||
| 2 | WB36K5102 | Vent Trim End Cap-rt-blk |
|
- | |||||
| 8 | WB2K5137 | Fan Support-lower |
|
- | |||||
| 8 | WB2K5133 | Fan Support-upper |
|
- | |||||
| 15 | WB34K5090 | Meat Probe Wire Cover |
|
- | |||||
| 16 | WB27K5048 | Clock/oven Control |
|
- | |||||
| 31 | WB27K5077 | Relay Board |
|
- | |||||
| 32 | WB26X115 | Fan Assembly |
|
- | |||||
| 32 | WB26X113 | Fan Asm |
|
- | |||||
| 36 | WB7K5185 | Trim Cntl Pnl End-rt-blk |
|
- | |||||
| 36 | WB7K5184 | Trim Cntl Pnl End-lt-blk |
|
- | |||||
| 41 | WB36K5270 | Screw Cap-black |
|
- | |||||
| 43 | WB2X9158 | Pc Board Spacer |
|
- | |||||
| 47 | WB38K5029 | Vent Barrier |
|
- | |||||
| 83 | WB9K5008 | End Trim Spring |
|
- | |||||
| 126 | WB3K5077 | Plug Button |
|
- | |||||
| 158 | WB24K5033 | Limit Switch |
|
- | |||||
| 159 | WB24K5034 | Limit Switch-erc |
|
- | |||||
| 221 | WB63K5083 | Side Extension-lt-upper |
|
- | |||||
| 221 | WB63K5082 | Side Extension-rt-upper |
|
- | |||||
| 221 | WB63K5093 | Cab Side Extension-low |
|
- | |||||
| 255 | WB7K5045 | Overlay Trim-27"-blk |
|
- | |||||
| 262 | WB7K5101 | Vent Trim |
|
- | |||||
| 263 | WB7K5041 | Trim-i Brow Blk-upper |
|
- | |||||
| 263 | WB7K5065 | Trim-i Brow Black-lower |
|
- | |||||
| 264 | WB7K5039 | Cnt Pnl Top Trim-blk |
|
- | |||||
| 275 | WB34K5078 | Vent Box Cover |
|
- | |||||
| 432 | WB63K5081 | Top Cover |
|
- | |||||
| 582 | WB20K5008 | Transformer |
|
- | |||||
| 760 | WB1K5028 | Screw |
|
- | |||||
| 761 | WB1K5062 | Screw |
|
- | |||||
| 762 | WB1K5110 | Screw |
|
- | |||||
| 833 | WB1X1131 | Screw |
|
- | |||||
| 856 | WG02F04011 | Screw (Replaces: WB1X1293) |
|
$ 3.57 | |||||
| 858 | WB1X1413 | Wood Screw |
|
- | |||||
| 862 | WB1X1178 | Screw |
|
- | |||||
| 875 | WB1K5057 | Screw |
|
- | |||||
| 888 | WB1X1328 | Screw |
|
- | |||||
| 936 | WB1K5065 | Snap Bushing |
|
- | |||||
| 970 | WB1K5044 | Speed Nut |
|
- | |||||
| 999 | WB18K5355 | Harness Wire Main |
|
- | |||||
| 999 | WB18K5356 | Harness Wire Relay Board |
|
- | |||||
| 999 | 31-10021 | Installation Instruction |
|
- | |||||
| 999 | 49-8303 | Cookbook |
|
- | |||||
| 999 | WB18K5360 | Harness Wire Main |
|
- | |||||
| 999 | WB18K5217 | Latch Motor W Harness-lo |
|
- | |||||
| 999 | 31-13076 | Manual Mini & Wire Diag |
|
- | |||||
| 999 | WB18K5210 | Lock Mtr Wire Harness |
|
- | |||||
| 999 | WB18K5220 | Main Wire Harness-lo |
|
- | |||||
| 999 | 49-8306 | Manual Use & Care |
|
- |
