SELECT A DIAGRAM

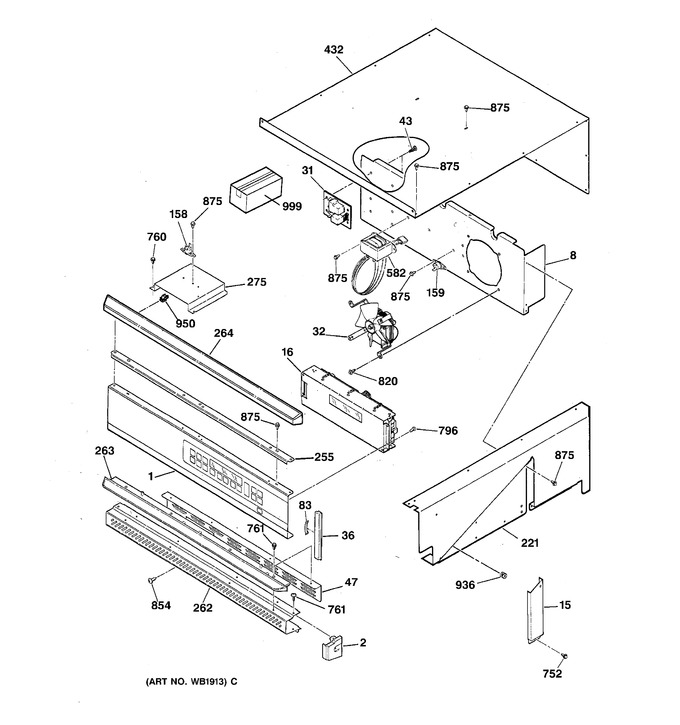

1 - Control Panel


2 - Body Parts


3 - Oven Door


4 - Latch


5 - Blower


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB36K5240		Control Panel Asm		Appelez-nous	-
2	WB36K5101		Vent Trim End Cap-lt-blk		Appelez-nous	-
2	WB36K5102		Vent Trim End Cap-rt-blk		Appelez-nous	-
8	WB2K5137		Fan Support-lower		Appelez-nous	-
8	WB2K5257		Fan Support		Appelez-nous	-
15	WB34K5090		Meat Probe Wire Cover		Appelez-nous	-
16	WB27K5048		Clock/oven Control		Appelez-nous	-
31	WB27K5077		Relay Board		Appelez-nous	-
32	WB26X113		Fan Asm-lower		Appelez-nous	-
32	WB26K5045		Fan-upper		Appelez-nous	-
36	WB7K5185		Trim Cntl Pnl End-rt-blk		Appelez-nous	-
36	WB7K5184		Trim Cntl Pnl End-lt-blk		Appelez-nous	-
43	WB2X9158		Pc Board Spacer		Appelez-nous	-
47	WB38K5029		Vent Barrier		Appelez-nous	-
83	WB9K5008		End Trim Spring		Appelez-nous	-
158	WB24K5033		Limit Switch		Appelez-nous	-
159	WB24K5034		Limit Switch-erc		Appelez-nous	-
221	WB63K5093		Cab Side Extension-low		Appelez-nous	-
221	WB63K5082		Side Extenstion-rt-upper		Appelez-nous	-
221	WB63K5083		Side Extension-lt-upper		Appelez-nous	-
255	WB7K5045		Overlay Trim-27"-blk		Appelez-nous	-
262	WB7K5203		Vert Side Trim-rt-blk		Appelez-nous	-
262	WB7K5101		Vent Trim		Appelez-nous	-
262	WB7K5202		Vert Side Trim-lt-blk		Appelez-nous	-
263	WB7K5041		Trim-i Brow Blk-upper		Appelez-nous	-
263	WB7K5065		Trim-i Brow Black-center		Appelez-nous	-
264	WB7K5196		Top Cont Pnl Trim-blk		Appelez-nous	-
275	WB34K5078		Vent Box Cover		Appelez-nous	-
432	WB63K5081		Top Cover		Appelez-nous	-
464	WB48K5011		Rack Convx Roast		Appelez-nous	-
465	WB48K5012		Rack Grid Convx Roast		Appelez-nous	-
582	WB20K5008		Transformer		Appelez-nous	-
752	WZ04X0345		Screw		Appelez-nous	-
760	WB1K5028		Screw		Appelez-nous	-
761	WB1K5029		Screw-black		Appelez-nous	-
761	WB1K5062		Screw-brt. Ni.		Appelez-nous	-
796	WB1K5116		Screw		Appelez-nous	-
820	WB1X1424		Screw		Appelez-nous	-
854	WB1X1328		Screw		Appelez-nous	-
875	WB1K5057		Screw		Appelez-nous	-
936	WB1K5065		Snap Bushing		Appelez-nous	-
950	WB1K5135		Cable Clip		Appelez-nous	-
999	49-8303		Cookbook		Appelez-nous	-
999	49-8306		Manual Use & Care		Appelez-nous	-
999	WB18K5210		Lock Mtr Wire Harness		Appelez-nous	-
999	WB18K5217		Latch Motor W Harness-lo		Appelez-nous	-
999	WB18K5220		Main Wire Harness-lo		Appelez-nous	-
999	WB18K5355		Harness Wire Main		Appelez-nous	-
999	WB18K5356		Harness Wire Relay Board		Appelez-nous	-
999	WB18K5360		Harness Wire Main		Appelez-nous	-
999	31-10057		Installaion Instruction		Appelez-nous	-
999	31-13091		Manual Mini & Wire Diag		Appelez-nous	-
