SELECT A DIAGRAM
1 - Upper Oven

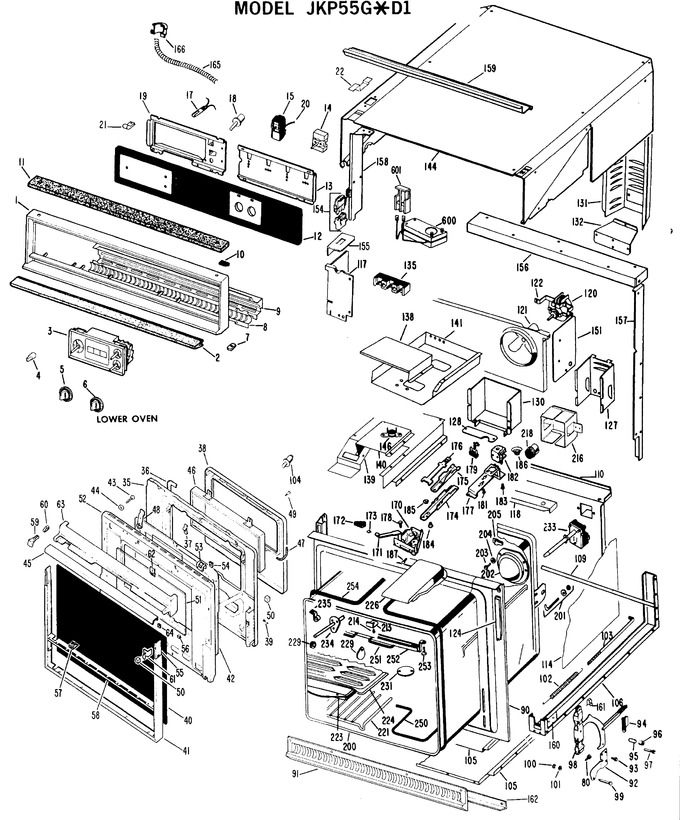

2 - Lower Oven
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB7X1122 | Control Trim |
|
- | |||||
| 2 | WZ05X0226 | Screw. Mtg. Nose |
|
- | |||||
| 2 | WB7X1123 | Nose |
|
- | |||||
| 2 | WB2X3297 | Nose, Spacer |
|
- | |||||
| 3 | WB19M160CP | Timer (Replaces: WB19X5231) |
|
- | |||||
| 4 | WB1X540 | Nut, Mt. Timer |
|
- | |||||
| 4 | WB3X218 | Knob - Timer |
|
- | |||||
| 5 | WB3X463 | Knob - Thermostat |
|
- | |||||
| 6 | WB3X462 | Knob - Oven Switch |
|
- | |||||
| 7 | WB1X544 | Speednut - Mtg. Trim To |
|
- | |||||
| 7 | WZ04X0218 | Screw - Mt. Trim |
|
- | |||||
| 8 | WB7X635 | Grill |
|
- | |||||
| 9 | WB2X1973 | Deflector |
|
- | |||||
| 9 | WZ05X0132 | Screw - Mt. Defl. & Gril |
|
- | |||||
| 10 | WB2X6671 | Catch - Trim |
|
- | |||||
| 10 | WZ04X0304 | Screw, Catch |
|
- | |||||
| 11 | WB2X6668 | Filler Strip |
|
- | |||||
| 12 | WB36X5500 | Crystal |
|
- | |||||
| 13 | WB22X5083 | Oven Switch |
|
- | |||||
| 13 | WZ02X0528 | Screw - Mt. Switch |
|
- | |||||
| 13 | WB2X3453 | Instrument Bracket |
|
- | |||||
| 13 | WB1X5220 | Nut Mtg. Brkt. |
|
- | |||||
| 13 | WB2X6494 | Barrier |
|
- | |||||
| 15 | WB1X5220 | Nut Mtg. Brkt. |
|
- | |||||
| 15 | WB21X5320 | Thermostat (Replaces: WB24X176) |
|
- | |||||
| 17 | WB2X1608 | Neon Lamp - 118v |
|
$ 31.65 | |||||
| 17 | WB2X1609 | Neon Lamp - 240v |
|
- | |||||
| 18 | WB2X1838 | Trim Switch |
|
- | |||||
| 18 | WB24X108 | Latch Switch |
|
- | |||||
| 19 | WB1X5220 | Nut, Hex |
|
- | |||||
| 19 | WB2X3405 | Timer Bracket |
|
- | |||||
| 20 | WB2X6937 | Sleeve Thermostat |
|
- | |||||
| 21 | WB2X2006 | Clamp |
|
- | |||||
| 22 | WZ04X0369 | Screw Mtg. Brkt. To Trim |
|
- | |||||
| 22 | WB2X3291 | Brkt. Trim |
|
- | |||||
| 22 | WZ04X0372 | Screw Mtg. Brkt. To Top |
|
- | |||||
| 35 | WB55X5247 | Liner Door |
|
- | |||||
| 35 | WB2X3312 | Insulation Door |
|
- | |||||
| 35 | WB2X3314 | Reflector Panel |
|
- | |||||
| 36 | WB2X3138 | Gasket |
|
- | |||||
| 37 | WB9X154 | Strike Spring |
|
- | |||||
| 38 | WB55X5246 | Panel Inner |
|
- | |||||
| 39 | WB1X558 | Screw |
|
- | |||||
| 40 | WB36X557 | Glass Black |
|
- | |||||
| 41 | WB7X1150 | Trim Door |
|
- | |||||
| 42 | WB49X354 | Guard Insulation |
|
- | |||||
| 43 | WZ04X0425 | Screw |
|
- | |||||
| 44 | WB1X119 | Washer Screw |
|
- | |||||
| 45 | WB15X153 | Grip Handle |
|
- | |||||
| 46 | WB36X5495 | Window |
|
- | |||||
| 47 | WB2X3048 | Gasket Window |
|
- | |||||
| 48 | WB9X153 | Spring Toggle |
|
- | |||||
| 49 | WB1X600 | Screw Mtg. Panel |
|
- | |||||
| 50 | WB2X3285 | Pad |
|
- | |||||
| 51 | WB36X540 | Crystal Window |
|
- | |||||
| 52 | WB55X419 | Panel Middle Door |
|
- | |||||
| 52 | WB2X7208 | Reflector Panel |
|
- | |||||
| 53 | WB2X3310 | Bracket Panel |
|
- | |||||
| 54 | WB1X439 | Speednut Bracket |
|
- | |||||
| 55 | WB2X3335 | Brace Side Lh |
|
- | |||||
| 55 | WB2X3334 | Brace Side Rh |
|
- | |||||
| 56 | WB2X3332 | Clip Crystal Bottom |
|
- | |||||
| 57 | WB2X3333 | Bracket Crystal |
|
- | |||||
| 58 | WB2X3336 | Brace Bottom |
|
- | |||||
| 59 | WB2X3337 | Plunger Door Light |
|
- | |||||
| 60 | WB9X157 | Spring Plunger |
|
- | |||||
| 61 | WB2X7209 | Clip Door |
|
- | |||||
| 62 | WB2X3331 | Clamp Crystal |
|
- | |||||
| 63 | WB7X1151 | Trim Top Door |
|
- | |||||
| 64 | WB1X579 | Speednut |
|
- | |||||
| 90 | WB56X1327 | Frame Asm. |
|
- | |||||
| 91 | WB7X636 | Bottom Trim |
|
- | |||||
| 91 | WZ04X0237 | Screw Mt. Btm. Trim |
|
- | |||||
| 92 | WB10X154 | Hinge Support - Rh |
|
- | |||||
| 92 | WB10X155 | Hinge Support - Lh |
|
- | |||||
| 93 | WZ06X0086 | Screw Mt. Support |
|
- | |||||
| 94 | WB2X3303 | Hinge Lever Guide |
|
- | |||||
| 95 | WB2X3305 | Sleeve |
|
- | |||||
| 96 | WB2X3304 | Roller |
|
- | |||||
| 97 | WB1X524 | Screw |
|
- | |||||
| 98 | WB10X158 | Hinge Lever - Rh |
|
- | |||||
| 99 | WG02A00596 | Hinge Pin (Replaces: WB2X6195) |
|
$ 4.20 | |||||
| 100 | WB2X1082 | Hinge Pin Retainer |
|
- | |||||
| 101 | WZ10X0017 | Washer |
|
- | |||||
| 102 | WB9X156 | Door Spring Rh & Lh |
|
- | |||||
| 103 | WB2X3289 | Link |
|
- | |||||
| 104 | WB24X105 | Switch Door |
|
- | |||||
| 104 | WB2X3421 | Barrier, Switch |
|
- | |||||
| 105 | WB55X302 | Bottom Outer Inner |
|
- | |||||
| 106 | WB59X163 | Channel & Spacer - Rh & |
|
- | |||||
| 109 | WB2X2401 | Side Brace Rh & Lh |
|
- | |||||
| 110 | WB49X327 | Back Inner |
|
- | |||||
| 114 | WB59X164 | Side Inner Rh & Lh |
|
- | |||||
| 117 | WB2X2858 | Extension Air Shield |
|
- | |||||
| 118 | WB2X2083 | Brace Latch |
|
- | |||||
| 119 | WB55X303 | Air Shield & Mtg. Bracke |
|
- | |||||
| 119 | WB2X6426 | Pad |
|
- | |||||
| 120 | WB26X5052 | Fan Motor |
|
- | |||||
| 121 | WR2X3198 | Blade Mt. Clamp |
|
- | |||||
| 121 | WB2X2001 | Fan Blade |
|
- | |||||
| 122 | WZ05X0345 | Screw Mt. Motor Brkt. |
|
- | |||||
| 122 | WB2X2846 | Bracket Mtg. Fan |
|
- | |||||
| 123 | WB55X5221 | Ext. Side - Lh |
|
- | |||||
| 123 | WB55X304 | Ext. Side - Rh |
|
- | |||||
| 124 | WB2X3422 | Gasket |
|
- | |||||
| 127 | WB2X2845 | Cover Light |
|
- | |||||
| 128 | WB2X2842 | Plate |
|
- | |||||
| 130 | WB2X3156 | Guard Thermostat |
|
- | |||||
| 131 | WB49X268 | Guard |
|
- | |||||
| 132 | WB49X223 | Cap Guard |
|
- | |||||
| 135 | WZ04X0384 | Screw Mt. Block |
|
- | |||||
| 135 | WB17X167 | Terminal Block |
|
- | |||||
| 138 | WB59X165 | Wire - Guard |
|
- | |||||
| 139 | WB59X134 | Insul. Guard - Rh |
|
- | |||||
| 140 | WB2X3173 | Vent Cover |
|
- | |||||
| 141 | WB59X170 | Insul. Guard - Lh |
|
- | |||||
| 144 | WB49X5182 | Case Top |
|
- | |||||
| 146 | WB24X199 | Fan Switch |
|
- | |||||
| 151 | WB2X2847 | Shield Wire |
|
- | |||||
| 154 | WB17X5061 | Block Assembly (w/termin |
|
- | |||||
| 155 | WB2X3427 | Plate - Mt. Receptacle |
|
- | |||||
| 156 | WB63X5198 | Support - Rear |
|
- | |||||
| 157 | WB63X5200 | Post Rear - Lh |
|
- | |||||
| 157 | WB1X438 | Screw - Mt. Post |
|
- | |||||
| 157 | WB63X5199 | Post Rear - Rh |
|
- | |||||
| 158 | WB2X6669 | Post - Front Rh |
|
- | |||||
| 158 | WB1X438 | Screw Mt. Post |
|
- | |||||
| 158 | WB2X6670 | Post - Front Lh |
|
- | |||||
| 159 | WB49X5185 | Rail Support - Front |
|
- | |||||
| 159 | WB1X438 | Screw - Mt. Support |
|
- | |||||
| 160 | WB2X2861 | Gusset, Rear |
|
- | |||||
| 160 | WB2X3423 | Gusset, Front |
|
- | |||||
| 161 | WB2X3403 | Shim, Hinge |
|
- | |||||
| 162 | WB2X2082 | Bracket Trim |
|
- | |||||
| 165 | WB2X1409 | Sleeve Conduit |
|
- | |||||
| 166 | WZ04X0294 | Screw Clamp |
|
- | |||||
| 166 | WB2X1409 | Sleeve Conduit |
|
- | |||||
| 170 | WB14X5035 | Latch Assembly |
|
- | |||||
| 171 | WB15X150 | Handle |
|
- | |||||
| 171 | WB1X438 | Screw Mt. Handle |
|
- | |||||
| 172 | WB3X434 | Knob - Latch |
|
- | |||||
| 173 | WG02A00753 | Retainer - Knob (Replaces: WB2X2030) |
|
$ 4.20 | |||||
| 174 | WB2X3157 | Channel - Latch |
|
- | |||||
| 175 | WB2X3158 | Channel - Locking |
|
- | |||||
| 176 | WB2X3159 | Pawl - Locking |
|
- | |||||
| 177 | WB1X458 | Screw Mtg. Plate |
|
- | |||||
| 177 | WB2X7301 | Plate - Mounting |
|
- | |||||
| 178 | WZ04X0396 | Screw - Channel To Latch |
|
- | |||||
| 179 | WB24X183 | Switch - Latch |
|
- | |||||
| 181 | WZ04X0397 | Screw Mt. Switch |
|
- | |||||
| 182 | WB24X197 | Solenoid |
|
- | |||||
| 183 | WB1X438 | Screw Mt. Solenoid |
|
- | |||||
| 184 | WB2X6212 | Pivot Stud |
|
- | |||||
| 185 | WB2X1800 | Retaining Ring |
|
- | |||||
| 186 | WB9X148 | Spring |
|
- | |||||
| 187 | WZ02X0503 | Screw Mt. Latch |
|
- | |||||
| 200 | WB53X252 | Oven Liner |
|
- | |||||
| 200 | WB2X3471 | Clip Tube Support |
|
- | |||||
| 200 | WB2X2116 | Oven Insul. |
|
- | |||||
| 200 | WB2X125 | Plug Button Cap. Tube Op |
|
- | |||||
| 201 | WB9X88 | Oven Hook Pkg. |
|
- | |||||
| 202 | WG02F04576 | Lamp Cover Asm. (Replaces: WB36X192) |
|
$ 20.65 | |||||
| 203 | WZ04X0292 | Screw Mt. Cover |
|
- | |||||
| 204 | WB2X1847 | Washer Mt. Cover |
|
- | |||||
| 205 | WB2X1659 | Clip Mt. Cover |
|
- | |||||
| 213 | WB2X3393 | Trim Clip |
|
- | |||||
| 214 | WZ04X0291 | Screw Mt. Clip |
|
- | |||||
| 216 | WB2X3466 | Lamp Housing |
|
- | |||||
| 218 | WB8X191 | Lamp Socket |
|
- | |||||
| 221 | WB48X82 | Rack - Oven |
|
- | |||||
| 223 | WB49X88 | Broil Pan |
|
- | |||||
| 224 | WB48X5002 | Broil Pan Rack |
|
- | |||||
| 226 | WZ04X0231 | Screw Mt. Vent |
|
- | |||||
| 226 | WB38X75 | Vent |
|
- | |||||
| 229 | WB1X422 | Screw Mt. Cover |
|
- | |||||
| 229 | WB2X3230 | Cover, Receptacle Open |
|
- | |||||
| 231 | WB2X818 | Vent Cover |
|
- | |||||
| 233 | WB24X175 | Thermal Switch |
|
- | |||||
| 234 | WB2X3163 | Gasket - Plate |
|
$ 22.50 | |||||
| 234 | WB2X3164 | Plate Mt. Switch |
|
- | |||||
| 234 | WZ04X0291 | Screw Mt. Plate |
|
- | |||||
| 235 | WZ04X0291 | Screw Mt. Hanger |
|
- | |||||
| 235 | WB2X3165 | Hanger |
|
- | |||||
| 250 | WZ04X0291 | Screw Mt. Unit |
|
- | |||||
| 250 | UB323 | Bake Unit (Replaces: WB44X200) |
|
Immediately | $ 41.80 | ||||
| 251 | UT316 | Broil Unit (Replaces: WB44X185) |
|
Immediately | $ 49.95 | ||||
| 251 | WB2X1543 | Gasket - Broil |
|
- | |||||
| 251 | WZ04X0291 | Screw Mt Support |
|
- | |||||
| 252 | WB2X1452 | Support Broil |
|
- | |||||
| 253 | WZ04X0291 | Screw Mt. Support |
|
- | |||||
| 254 | WB2X3328 | Barrier |
|
- | |||||
| 254 | WB2X3452 | Insulator Terminals Mull |
|
- | |||||
| 254 | WB44X207 | Mullion |
|
- | |||||
| 254 | WB2X3293 | Spacer Mullion |
|
- | |||||
| 600 | WZ04X0291 | Screw Mt. Eliminator |
|
- | |||||
| 600 | WB29X53 | Smoke Eliminator |
|
- | |||||
| 600 | WB2X3292 | Gasket Eliminator |
|
- | |||||
| 602 | WB2X3388 | Terminal Block |
|
- |
