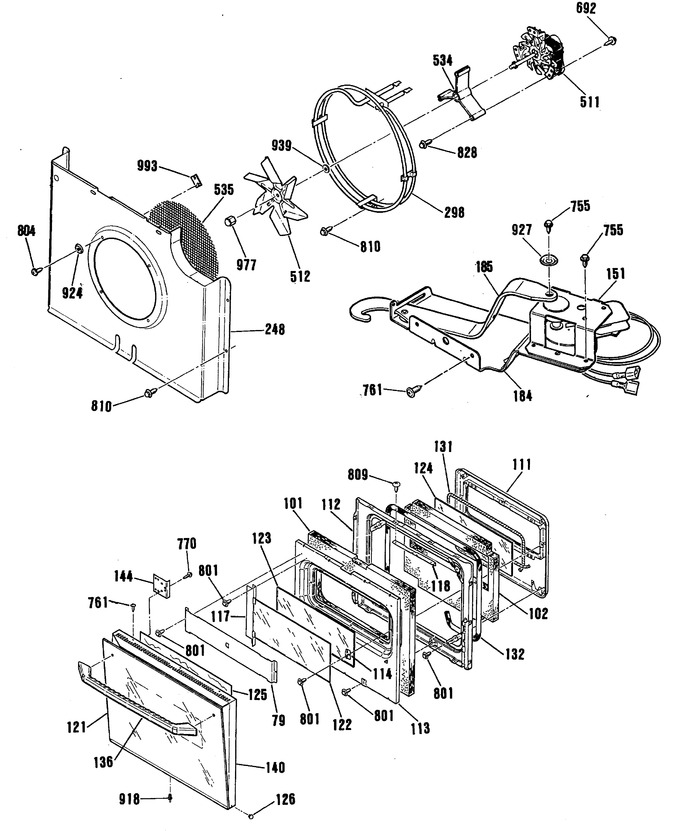

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 79 | WB34K5077 | Ov Dr Baffle |
|
- | |||||
| 101 | WB35K5039 | Ov Door Insulation |
|
- | |||||
| 102 | WB35K5050 | Door Plug Insulation |
|
- | |||||
| 111 | WB55K5018 | Ov Dr Lining Plug |
|
- | |||||
| 112 | WB55K5017 | Ov Dr Lining Asm |
|
- | |||||
| 113 | WB2K5127 | Ov Dr Ins Retainer |
|
- | |||||
| 114 | WB2M1 | Ov Dr Glass Retainer |
|
- | |||||
| 117 | WB2K5131 | Ov Dr Glass Retainer |
|
- | |||||
| 118 | WB2K5215 | Ov Dr Stiffener Asm |
|
- | |||||
| 121 | WB57K5250 | Ov Door Glass W/refl Asm |
|
- | |||||
| 122 | WB57K5102 | Ov Dr Intermediate Glass |
|
- | |||||
| 123 | WB57K5038 | Ov Dr Inner Glass-lower |
|
- | |||||
| 124 | WB57K5063 | Ov Dr Inner Glass |
|
- | |||||
| 125 | WB34K5203 | Heat Reflector |
|
- | |||||
| 126 | WB3K5077 | Plug Button |
|
- | |||||
| 131 | WB2X9168 | Inner Glass Seal |
|
- | |||||
| 132 | WB32K5038 | Oven Door Gasket |
|
- | |||||
| 136 | WB15K5071 | Oven Door Handle-wht |
|
- | |||||
| 140 | WB55K5049 | Oven Door Frame Asm |
|
- | |||||
| 144 | WB2K5316 | Reinforcement Plate |
|
- | |||||
| 151 | WG02F05623 | Lock Motor (Replaces: WB26K5030) |
|
$ 151.67 | |||||
| 184 | WB34K5079 | Door Lock Plate |
|
- | |||||
| 185 | WB15K5016 | Lock Lever Asm |
|
- | |||||
| 248 | WB63K5137 | Panel Ov Inner Asm |
|
- | |||||
| 298 | WG02F05489 | Element-convx (Replaces: WB44K5029) |
|
Immediately | $ 104.36 | ||||
| 511 | WB26K5041 | Motor Fan |
|
- | |||||
| 512 | WB26K5040 | Blade Fan |
|
- | |||||
| 534 | WB26K5050 | Oven Cavity Support |
|
- | |||||
| 535 | WB26K5042 | Screen (s.s. Convx) |
|
- | |||||
| 692 | WZ04X0416 | Screw |
|
- | |||||
| 694 | WG02A00792 | Screw (Replaces: WB1K5157) |
|
$ 3.57 | |||||
| 755 | WZ04X0044 | Screw |
|
- | |||||
| 761 | WB1K5062 | Screw-brt. Ni. |
|
- | |||||
| 801 | WB1M1 | Screw |
|
- | |||||
| 804 | WB1X1127 | Screw |
|
- | |||||
| 809 | WG02A00781 | Screw (Replaces: WB1X1137) |
|
$ 14.29 | |||||
| 810 | WB1X1253 | Screw |
|
- | |||||
| 828 | WB1X1141 | Screw |
|
- | |||||
| 918 | WB1K5071 | Plastic Rivet |
|
- | |||||
| 924 | WB1K5146 | Washer |
|
- | |||||
| 927 | WB1X1254 | Washer |
|
- | |||||
| 939 | WB1K5126 | Washer |
|
- | |||||
| 977 | WB1K5125 | Nut |
|
- | |||||
| 993 | WB1K5141 | Speed Nut-flat |
|
- | |||||
| 999 | 31-10119 | Installation Instruciton |
|
- | |||||
| 999 | 31-13191 | Mini Manual W/wire Diag. |
|
- | |||||
| 999 | WB18K5532 | Main Wire Harness |
|
- | |||||
| 999 | 49-8504 | Use & Care Mahnual |
|
- | |||||
| 999 | WB18K5356 | Harness Wire Relay Board |
|
- | |||||
| 999 | WB18K5210 | Lock Mtr Wire Harness |
|
- | |||||
| 999 | 49-8443 | Pm Cookbook |
|
- | |||||
| 999 | WB18K5217 | Latch Motor W Harness-lo |
|
- |
