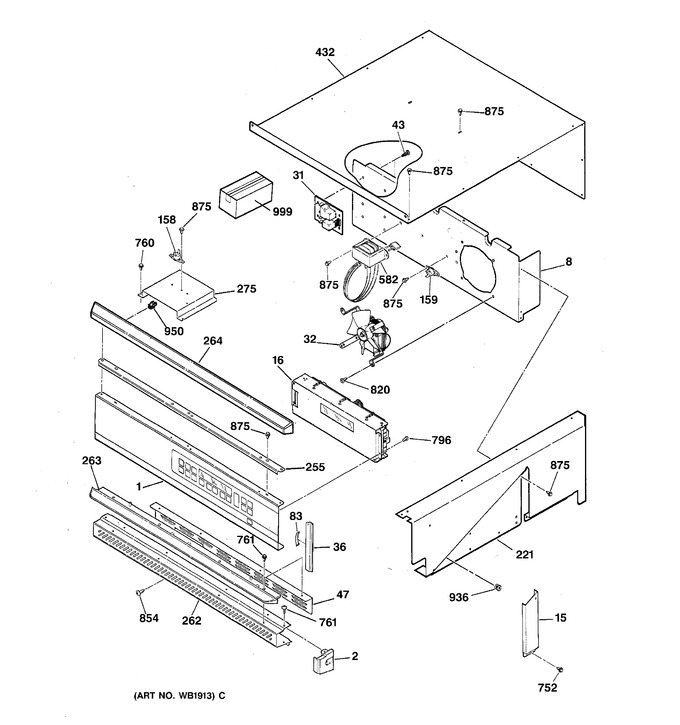

SELECT A DIAGRAM

1 - Control Panel


2 - Body Parts


3 - Oven Door


4 - Lock


5 - Component Group


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB36K5503		Control Panel-almond		Appelez-nous	-
2	WB36K5340		Vent Trim End Cap-lt-ad		Appelez-nous	-
2	WB36K5339		Vent Trim End Cap-rt-ad		Appelez-nous	-
8	WB2K5257		Fan Support-upper		Appelez-nous	-
8	WB2K5137		Fan Support-lower		Appelez-nous	-
15	WB34K5090		Meat Probe Wire Cover		Appelez-nous	-
16	WB27K5211		Clock/oven Control		Appelez-nous	-
31	WB27K5077		Relay Board		Appelez-nous	-
32	WB26K5045		Fan-upper		Appelez-nous	-
32	WB26X113		Fan-lower		Appelez-nous	-
36	WB7K5243		Control Panel End Trm-rt		Appelez-nous	-
36	WB7K5242		Control Panel End Trm-lt		Appelez-nous	-
43	WB2X9158		Pc Board Spacer		Appelez-nous	-
47	WB38K5029		Vent Barrier		Appelez-nous	-
83	WB9K5008		End Trim Spring		Appelez-nous	-
158	WB24K5033		Limit Switch		Appelez-nous	-
159	WG02F04523		Limit Switch   (Replaces: WB24K5085)				$ 28.58
221	WB63K5082		Side Extenstion-rt-upper		Appelez-nous	-
221	WB63K5174		Body Side Extension-lowr		Appelez-nous	-
221	WB63K5083		Side Extension-lt-upper		Appelez-nous	-
255	WB7K5244		Overlay Trim-ad		Appelez-nous	-
262	WB7K5251		Vertical Side Trim-rt/ad		Appelez-nous	-
262	WB7K5254		Vent Trim		Appelez-nous	-
262	WB7K5252		Vertical Side Trim-lt/ad		Appelez-nous	-
263	WB7K5250		I-brow Trim-ad-center		Appelez-nous	-
263	WB7K5231		Trim (i-brow Ad)		Appelez-nous	-
264	WB7K5245		Control Panel Top Trm-ad		Appelez-nous	-
275	WB34K5078		Vent Box Cover		Appelez-nous	-
432	WB63K5081		Top Cover		Appelez-nous	-
582	WB20X5063		Transformer		Appelez-nous	-
752	WB0X6542		Screw		Appelez-nous	-
760	WB1K5028		Screw		Appelez-nous	-
761	WB1K5029		Screw-black		Appelez-nous	-
796	WB1K5116		Screw		Appelez-nous	-
820	WB1X1424		Screw		Appelez-nous	-
854	WB1X1164		Screw-brt. Ni.		Appelez-nous	-
854	WB1X1328		Screw-black		Appelez-nous	-
875	WG04A00781		Scr 8-18 Ab Hxw 3/8 S   (Replaces: WH2X930)			Immediately	$ 3.57
936	WB1K5065		Snap Bushing		Appelez-nous	-
950	WB1K5135		Cable Clip		Appelez-nous	-
999	WB18K5356		Harness Wire Relay Board		Appelez-nous	-
999	WB18K5217		Latch Motor W Harness-lo		Appelez-nous	-
999	WB18K5210		Lock Mtr Wire Harness		Appelez-nous	-
999	49-8605		Use & Care Manual		Appelez-nous	-
999	49-8443		Pm Cookbook		Appelez-nous	-
999	31-13191		Mini Manual W/wire Diag.		Appelez-nous	-
999	WB18K5532		Main Wire Harness		Appelez-nous	-
999	31-10119		Installation Instruciton		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
