SELECT A DIAGRAM

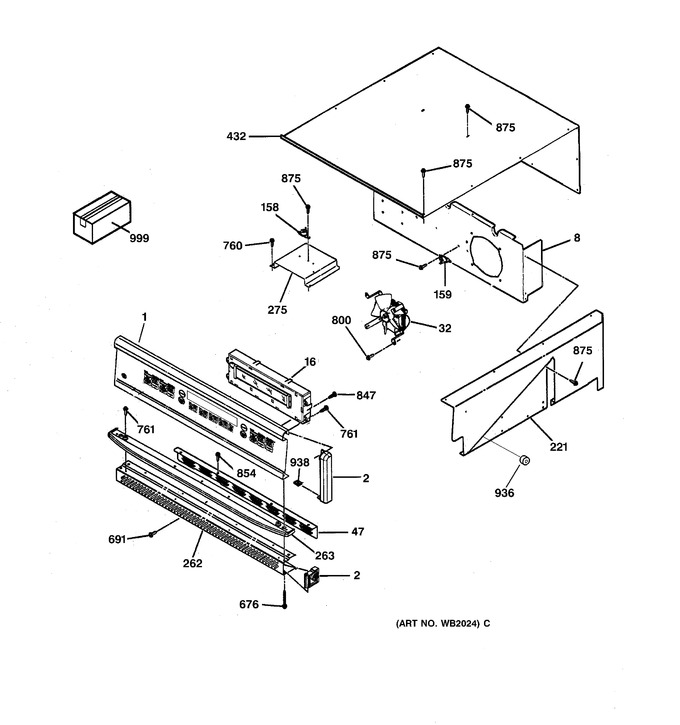

1 - Control Panel


2 - Body Parts


3 - Door


4 - Door Lock


5 - Convection Fan


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB36T10152		Panel Cntl Asm W/oly		Appelez-nous	-
2	WB7K5461		End Cap-lt-ad-ctl Pnl		Appelez-nous	-
2	WB7K5442		Vent Trim Cap		Appelez-nous	-
2	WB7K5460		End Cap-rt-ad-ctl Pnl		Appelez-nous	-
8	WB2K5137		Fan Support-lower		Appelez-nous	-
8	WB2K5257		Fan Support-upper		Appelez-nous	-
16	WB27K5319		Clock/oven Control		Appelez-nous	-
32	WB26K5071		Fan-upper		Appelez-nous	-
32	WB26K5072		Fan		Appelez-nous	-
47	WB38K5058		Vent Barrier		Appelez-nous	-
158	WB24K5033		Limit Switch		Appelez-nous	-
159	WG02F04523		Limit Switch   (Replaces: WB24K5085)				$ 28.58
221	WB63K5210		Body Side Extension-rt		Appelez-nous	-
221	WB63K5209		Body Side Extension-lt		Appelez-nous	-
221	WB63K5174		Body Side Extension-lowr		Appelez-nous	-
262	WB7K5480		Vent Trim-ad		Appelez-nous	-
262	WB7K5506		Vertical Side Trim-rt-ad		Appelez-nous	-
262	WB7K5507		Vertical Side Trim-lt-ad		Appelez-nous	-
263	WB7K5508		I-brow Trim-lower-ad		Appelez-nous	-
263	WB7K5458		I-brow Trim-almond		Appelez-nous	-
275	WB34K5078		Vent Box Cover		Appelez-nous	-
432	WB63K5094		Top Cover		Appelez-nous	-
676	WB1K5208		Trim Screw-almond		Appelez-nous	-
691	WB1K5176		Trim Screw-almond		Appelez-nous	-
760	WB1K5028		Screw		Appelez-nous	-
761	WB1K5029		Screw-black		Appelez-nous	-
761	WB1K5211		Trim Screw-ad		Appelez-nous	-
800	WB1K5138		Screw		Appelez-nous	-
847	WB1X1180		Screw-black		Appelez-nous	-
854	WB1X1164		Screw		Appelez-nous	-
875	WG04A00781		Screw   (Replaces: WH2X930)			Immediately	$ 3.57
936	WB1K5065		Snap Bushing		Appelez-nous	-
938	WB1K5209		Clip		Appelez-nous	-
999	49-8709		Use Care Manual		Appelez-nous	-
999	31-13342		Mini Manual W/wire Diag.		Appelez-nous	-
999	31-10200		Installation Instruction		Appelez-nous	-
999	49-8443		Pm Cookbook		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
