View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Wiring Material

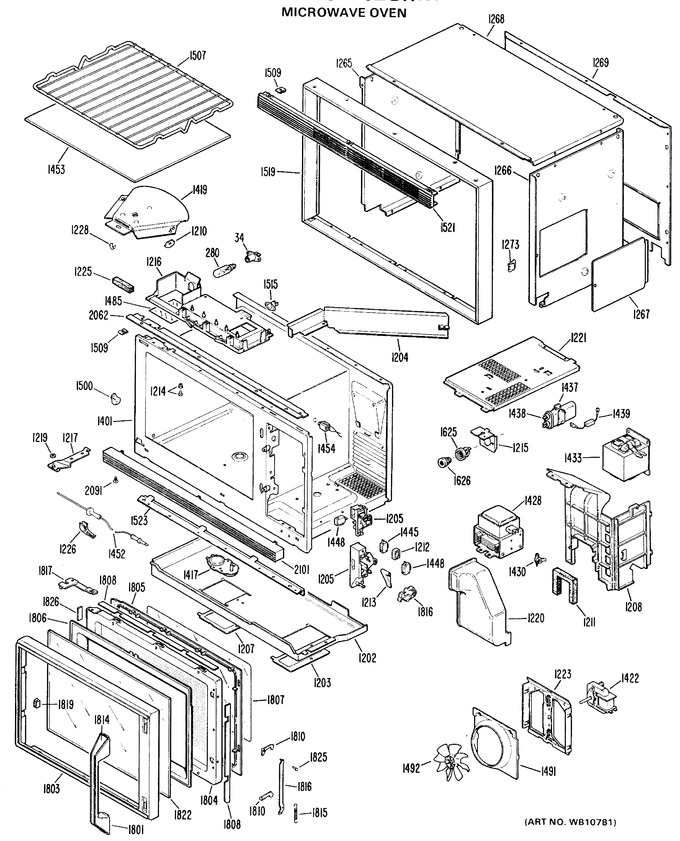

2 - Microwave Oven
3 - Lower Oven
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 34 | WB8X5096 | Socket Lamp |
|
- | |||||
| 280 | WB2X7560 | Oven Lamp |
|
- | |||||
| 280 | WX12X1510 | Lamp 40w Appliance |
|
- | |||||
| 715 | WB1X5751 | Clip Canoe |
|
- | |||||
| 733 | WB2X7750 | Bracket Trim |
|
- | |||||
| 739 | WB8X5097 | Receptacle, Fustat |
|
- | |||||
| 750 | WB2X7726 | Bracket |
|
- | |||||
| 752 | WB10X5184 | Hinge Lower |
|
- | |||||
| 753 | WB2X7103 | Spacer |
|
- | |||||
| 755 | WB2X7732 | Bracket |
|
- | |||||
| 756 | WB2X7733 | Bracket |
|
- | |||||
| 757 | WB2X7734 | Cushion |
|
- | |||||
| 758 | WB2X7660 | Holder Probe |
|
- | |||||
| 760 | WB2X7625 | Stopper |
|
- | |||||
| 766 | WB26X5080 | Motor, Stirrer |
|
- | |||||
| 768 | WB26X5082 | Motor, Blower |
|
- | |||||
| 769 | 10QBP0234 | Magnetron (Replaces: WB27X5410) |
|
$ 114.50 | |||||
| 772 | WB2X7731 | Bracket |
|
- | |||||
| 773 | WB27X254 | Capacitor |
|
- | |||||
| 774 | WB27X5333 | Rectifier |
|
- | |||||
| 775 | WB24X353 | Switch, Monitor |
|
- | |||||
| 776 | WG02F01561 | Switch, Door (Replaces: WB24X352) |
|
Immediately | $ 25.41 | ||||
| 777 | WB20X5054 | Probe |
|
- | |||||
| 778 | WB48X5084 | Shelf Oven |
|
- | |||||
| 779 | WB2X7552 | Spacer |
|
- | |||||
| 779 | WB20X5053 | Receptacle Probe |
|
- | |||||
| 779 | WB1X5588 | Nut Receptacle |
|
- | |||||
| 786 | WB2X4114 | Blade Fan |
|
- | |||||
| 787 | WB2X7640 | Support Rack |
|
- | |||||
| 790 | WB1X365 | Speednut |
|
- | |||||
| 792 | WB27X5381 | Thermal Cutout |
|
- | |||||
| 793 | WB7X6931 | Trim Frame |
|
- | |||||
| 809 | WB15X5163 | Handle Door |
|
- | |||||
| 811 | WB55X5285 | Liner & Choke |
|
- | |||||
| 814 | WB2X7647 | Film |
|
- | |||||
| 815 | WB2X7642 | Ferrite Rubber Top & Btm |
|
- | |||||
| 815 | WB2X7643 | Ferrite Rubber Rh |
|
- | |||||
| 818 | WB7X6900 | Trim Handle |
|
- | |||||
| 821 | WB10X5179 | Hinge Upper |
|
- | |||||
| 822 | WB2X7735 | Sash |
|
- | |||||
| 824 | WB2X7559 | Pin Key Lever |
|
- | |||||
| 825 | WB2X7857 | Cushion Rubber |
|
- | |||||
| 924 | WB49X5387 | Cover Magnetron |
|
- | |||||
| 959 | WB10X5174 | Door Hook Lower |
|
- | |||||
| 959 | WB10X5165 | Door Hook Top |
|
- | |||||
| 994 | WB2X7723 | Cover Access |
|
- | |||||
| 996 | WB2X7624 | Stopper |
|
- | |||||
| 997 | WB2X7580 | Spacer |
|
- | |||||
| 998 | WB2X7628 | Hook Spacer |
|
- | |||||
| 1202 | WB49X5386 | Base |
|
- | |||||
| 1204 | WB2X7722 | Air Guide |
|
- | |||||
| 1208 | WB2X7724 | Air Guide |
|
- | |||||
| 1211 | WB2X7725 | Cushion Rubber |
|
- | |||||
| 1216 | WB2X7727 | Exhaust Guide |
|
- | |||||
| 1220 | WB2X7635 | Air Guide |
|
- | |||||
| 1265 | WB56X5931 | Side Case Upper Lh |
|
- | |||||
| 1266 | WB56X5932 | Side Case Upper Rh |
|
- | |||||
| 1267 | WB2X7255 | Cover Access |
|
- | |||||
| 1268 | WB56X5933 | Top Case Upper |
|
- | |||||
| 1269 | WB49X5388 | Back Case |
|
- | |||||
| 1273 | WB2X7258 | Clip Trim |
|
- | |||||
| 1401 | WB53X5129 | Cavity & Frame Asm |
|
- | |||||
| 1419 | WB2X7626 | Antenna Asm |
|
- | |||||
| 1433 | WB27X5398 | Transformer, Hi-voltage |
|
- | |||||
| 1462 | WB2X7544 | Clip |
|
- | |||||
| 1485 | WB2X7730 | Shield Lamp |
|
- | |||||
| 1491 | WB2X7728 | Orifice |
|
- | |||||
| 1521 | WB7X6933 | Grille |
|
- | |||||
| 1523 | WB49X5185 | Rail Support Front |
|
- | |||||
| 1803 | WB7X6925 | Trim Door |
|
- | |||||
| 1805 | WB55X5286 | Frame Inner |
|
- | |||||
| 1806 | WB55X5287 | Door Inner |
|
- | |||||
| 1815 | WB9X5112 | Spring Door Key |
|
- | |||||
| 1822 | WB36X5602 | Window Outer |
|
- | |||||
| 2062 | WB2X7741 | Bracket Grille |
|
- | |||||
| 2101 | WB7X6932 | Trim Lower |
|
- |
