SELECT A DIAGRAM

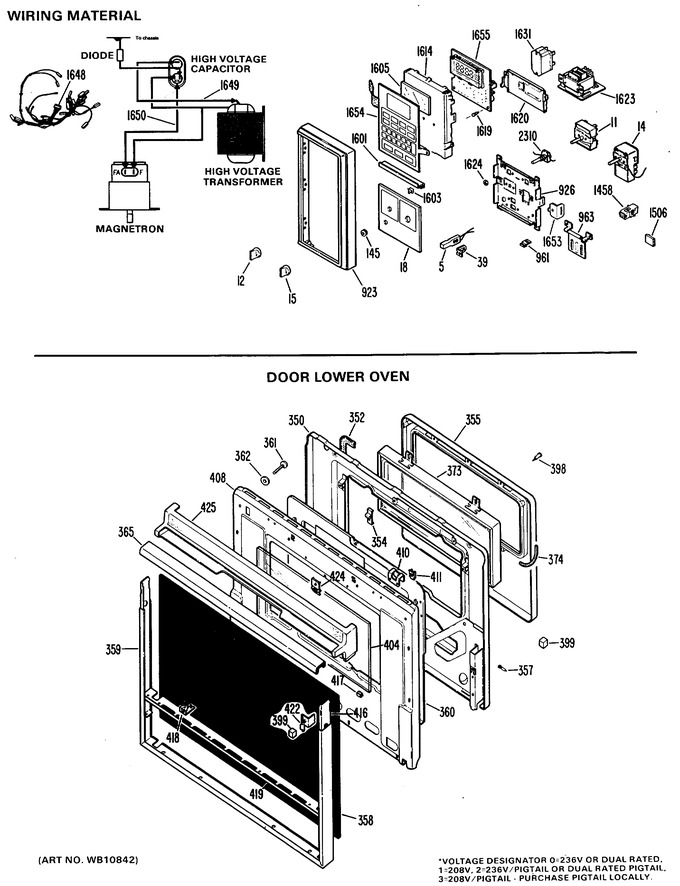

1 - Wiring Material
2 - Microwave Oven
3 - Lower Oven
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | WB2X1608 | Neon Lamp 118v |
|
$ 31.65 | |||||
| 5 | WB2X3468 | Neon Lamp 240v |
|
- | |||||
| 11 | WB22X5148 | Switch, Oven |
|
- | |||||
| 12 | WB3X5627 | Knob Oven Switch |
|
- | |||||
| 14 | WB21X5320 | Thermostat, Dual (Replaces: WB24X176) |
|
- | |||||
| 14 | WB2X6494 | Barrier |
|
- | |||||
| 15 | WB3X5695 | Knob Thermostat |
|
- | |||||
| 18 | WB36X5609 | Crystal |
|
- | |||||
| 39 | WB2X6239 | Bracket Lamp |
|
- | |||||
| 103 | WB2X1119 | Speednut |
|
- | |||||
| 145 | WB2X3429 | Trim Switch |
|
- | |||||
| 148 | WS01A01408 | Screw (Replaces: WB1X5716) |
|
$ 4.20 | |||||
| 265 | WB2X3303 | Guide Hinge Lever |
|
- | |||||
| 268 | WB29X5018 | Smoke Elim & Tube Asm |
|
- | |||||
| 350 | WB2X3314 | Reflector Panel |
|
- | |||||
| 350 | WB2X3312 | Insulation Door |
|
- | |||||
| 350 | WB55X5318 | Door Liner |
|
- | |||||
| 352 | WB2X3138 | Gasket Door |
|
- | |||||
| 354 | WB9X154 | Strike Spring |
|
- | |||||
| 355 | WB2X3313 | Insulation Door |
|
- | |||||
| 355 | WB55X5299 | Panel Inner |
|
- | |||||
| 355 | WB2X2276 | Reflector Foil |
|
- | |||||
| 357 | WB1X558 | Screw |
|
- | |||||
| 358 | WB36X557 | Glass Black |
|
- | |||||
| 359 | WB7X1150 | Trim Frame-lower Door |
|
- | |||||
| 360 | WB49X354 | Guard Insulation |
|
- | |||||
| 361 | WZ04X0425 | Screw |
|
- | |||||
| 362 | WB1X119 | Washer Screw |
|
- | |||||
| 365 | WB15X154 | Grip Asm Handle |
|
- | |||||
| 373 | WB36X5495 | Window Pack |
|
- | |||||
| 374 | WB2X3048 | Gasket Window |
|
- | |||||
| 397 | WZ04X0384 | Screw Mtg End Cap |
|
- | |||||
| 398 | WB1X600 | Screw Shoulder |
|
- | |||||
| 399 | WB2X3285 | Pad |
|
- | |||||
| 404 | WB36X5595 | Crystal Window |
|
- | |||||
| 408 | WB55X419 | Panel Middle Door |
|
- | |||||
| 408 | WB2X7208 | Reflector Panel |
|
- | |||||
| 410 | WB2X3310 | Bracket Panel |
|
- | |||||
| 411 | WB1X439 | Speednut Bracket |
|
- | |||||
| 412 | WB1X589 | Speednut Panel |
|
- | |||||
| 416 | WB2X3334 | Brace Side Rh |
|
- | |||||
| 416 | WB2X3335 | Brace Side Lh |
|
- | |||||
| 417 | WB2X3332 | Clip Crystal |
|
- | |||||
| 418 | WB2X3333 | Bracket Crystal |
|
- | |||||
| 419 | WB2X3336 | Brace Bottom |
|
- | |||||
| 422 | WB2X7209 | Clip Door |
|
- | |||||
| 424 | WB2X3331 | Clamp Crystal |
|
- | |||||
| 425 | WB7X6923 | Trim Top Door |
|
- | |||||
| 461 | WB1X593 | Screw Mtg Clip |
|
- | |||||
| 734 | WB2X7738 | Bracket |
|
- | |||||
| 737 | WB27X5407 | Power Supply Asm |
|
- | |||||
| 737 | WB2X7766 | Bracket Support |
|
- | |||||
| 742 | WB27X5405 | Relay, Power |
|
- | |||||
| 743 | WB18X5094 | Wire Harness |
|
- | |||||
| 744 | WB18X5096 | Lead Wire |
|
- | |||||
| 745 | WB18X5097 | Lead Wire |
|
- | |||||
| 746 | WB2X7777 | Bracket Mounting |
|
- | |||||
| 748 | WB27X5399 | Smart Board & Display |
|
- | |||||
| 795 | WB7X6930 | Trim Crystal |
|
- | |||||
| 796 | WB2X6654 | Speednut U Type |
|
- | |||||
| 797 | WB36X5604 | Crystal |
|
- | |||||
| 798 | WB2X7736 | Bracket |
|
- | |||||
| 799 | WB2X7769 | Holder |
|
- | |||||
| 923 | WB7X6927 | Trim Control |
|
- | |||||
| 926 | WB2X7780 | Bracket Instrument |
|
- | |||||
| 961 | WB1X5750 | Clip Crystal |
|
- | |||||
| 963 | WB2X7729 | Hinge Control Panel |
|
- | |||||
| 1201 | WS01A01150 | Screw (Replaces: WB1X5364) |
|
$ 3.97 | |||||
| 1266 | WB56X5932 | Side Case Upper Rh |
|
- | |||||
| 1458 | WB17X5062 | Terminal Blk Asm (12pin) |
|
- | |||||
| 1506 | WB17X5078 | Housing Socket Pkg 5 Pin |
|
- | |||||
| 1624 | WB1X245 | Nut Mtg Light Switch |
|
- | |||||
| 1654 | WB27X5401 | Key Panel Asm |
|
- | |||||
| 2310 | WB24X5237 | Switch |
|
- | |||||
| 32767 | WZ05X0124 | Scr 4-40 D Hxw 5/8 S |
|
- | |||||
| 32767 | WS01A02255 | Scr 8-18 Ba Ihw 3/8 S (Replaces: WB1X536) |
|
$ 3.97 | |||||
| 32767 | WZ05X0234 | Screw Mt Switch |
|
- | |||||
| 32767 | WB26X5052 | Motor, Fan |
|
- | |||||
| 32767 | WB24X105 | Switch, Oven Light |
|
- | |||||
| 32767 | WZ04X0255 | Scr 8-18x1 Ab Ovr 1/2 S |
|
- | |||||
| 32767 | 49-4706 | Cookbook |
|
- | |||||
| 32767 | WZ04X0397 | Scr 6-32 C Flr 5/16 S |
|
- | |||||
| 32767 | WZ07X0029 | Nut |
|
- | |||||
| 32767 | WB2X3429 | Washer |
|
- | |||||
| 32767 | WB2X2116 | Insulation |
|
- | |||||
| 32767 | WZ05X0134 | Scr 8-32 T Hxw 3/8 S |
|
- | |||||
| 32767 | WB1X448 | Washer |
|
- | |||||
| 32767 | WB2X2115 | Insulation |
|
- | |||||
| 32767 | UB323 | Bake Unit 208/240v L.o. (Replaces: WB44X200) |
|
Immediately | $ 41.80 | ||||
| 32767 | WB2X3191 | Gasket |
|
- | |||||
| 32767 | WZ06X0038 | Scr 8-18 Ab Hxw 5/8 S |
|
- | |||||
| 32767 | WB24X5164 | Switch, Thermal |
|
- | |||||
| 32767 | 31-0425 | Install Instructions |
|
- | |||||
| 32767 | WB1X438 | Screw & Washer Asm |
|
- | |||||
| 32767 | WB9X88 | Lockwasher |
|
- | |||||
| 32767 | WZ04X0414 | Scr 8-18 Ab Ovr 1/2 S#6h |
|
- | |||||
| 32767 | 49-4790 | Manual Users |
|
- | |||||
| 32767 | WB22X5148 | Switch, Oven L.o. |
|
- | |||||
| 32767 | WB2X3152 | Pad |
|
- | |||||
| 32767 | WZ04X0345 | Screw |
|
- | |||||
| 32767 | WZ04X0249 | Scr 8-18 Ab Ovr 3/4 S |
|
- | |||||
| 32767 | 31-0556 | Pm Manual Mini |
|
- | |||||
| 32767 | WZ07X0035 | Nut Hex |
|
- | |||||
| 32767 | UT316 | Broil Unit 208/240v L.o. (Replaces: WB44X185) |
|
Immediately | $ 49.95 | ||||
| 32767 | WZ02X0528 | Scr 8-32 M Phr 3/16 S |
|
- | |||||
| 32767 | WB1X500 | Terminal Screw |
|
- | |||||
| 32767 | WZ04X0396 | Scr 10-16 B Hxw 1/4 S |
|
- |
