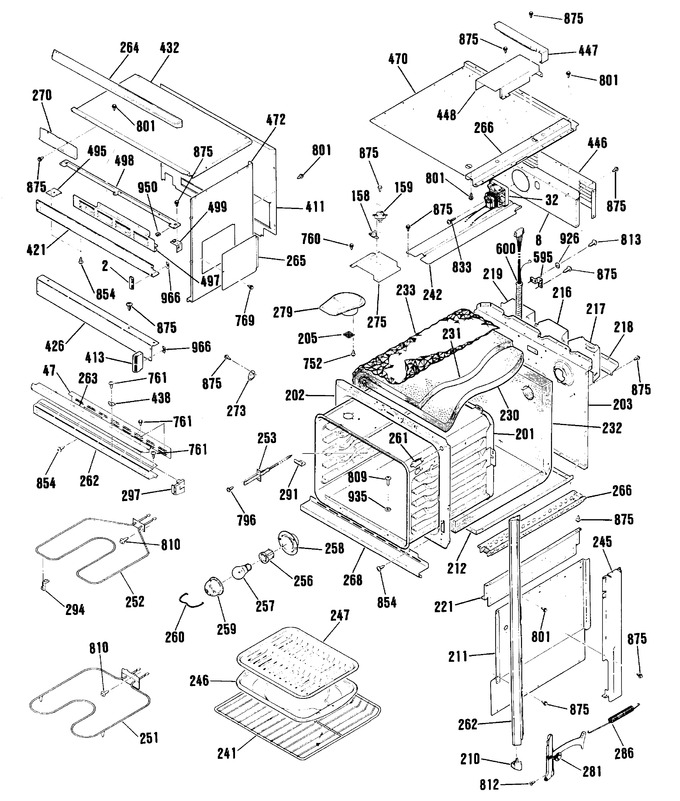

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WB36K5113 | End Cap-lt |
|
- | |||||
| 2 | WB36K5114 | End Cap-rt |
|
- | |||||
| 8 | WB2K5137 | Fan Support |
|
- | |||||
| 32 | WB26X113 | Fan Asm |
|
- | |||||
| 47 | WB2X7724 | Air Guide |
|
- | |||||
| 47 | WB38K5029 | Vent Barrier |
|
- | |||||
| 158 | WB24K5033 | Limit Switch |
|
- | |||||
| 159 | WB24K5049 | Limit Switch |
|
- | |||||
| 201 | WB63K5086 | Oven Body |
|
- | |||||
| 203 | WB63K5078 | Main Back |
|
- | |||||
| 205 | WB6K5026 | Smoke Elim Screen |
|
- | |||||
| 210 | WB7K5159 | Trim End Cap-btm Lt-blk |
|
- | |||||
| 210 | WB7K5158 | Trim End Cap-btm Rt-blk |
|
- | |||||
| 211 | WB63K5085 | Cabinet Side |
|
- | |||||
| 212 | WB63K5080 | Cabinet Bottom |
|
- | |||||
| 216 | WB34K5069 | Wire Cover-element |
|
- | |||||
| 217 | WB34K5070 | Wire Cover-light |
|
- | |||||
| 218 | WB34K5067 | Wire Cover Bottom |
|
- | |||||
| 219 | WB34K5082 | Wire Cover-conduit |
|
- | |||||
| 221 | WB63K5093 | Cab Side Extension-low |
|
- | |||||
| 230 | WB35K5048 | Insulation-wrapper-inner |
|
- | |||||
| 231 | WB35K5068 | Insulation Wrapper-outer |
|
- | |||||
| 232 | WB35K5089 | Insulation Back & Bttm |
|
- | |||||
| 233 | WB34K5080 | Heat Reflector |
|
- | |||||
| 241 | WG02L02645 | Oven Rack (Replaces: WB48K5006) |
|
$ 80.53 | |||||
| 242 | WB38K5041 | Air Channel |
|
- | |||||
| 246 | WB48M3 | Broiler Pan |
|
- | |||||
| 246 | WB6K5020 | Ceramic Tray |
|
- | |||||
| 247 | WB48K5018 | Broiler Pad Grid |
|
- | |||||
| 252 | WG02F05475 | Broil Element (Replaces: WB44K5009) |
|
$ 115.36 | |||||
| 261 | 318394803 | Jamb Switch (Replaces: WB24K5061) |
|
Immediately | $ 49.14 | ||||
| 262 | WB7K5274 | Vert Side Trim-rt-blk |
|
- | |||||
| 262 | WB7K5273 | Vert Side Trim-lt-blk |
|
- | |||||
| 263 | WB7K5041 | Trim-i Brow Blk |
|
- | |||||
| 264 | WB7K5272 | Control Panel Top Trim |
|
- | |||||
| 265 | WB2X7255 | Access Cover |
|
- | |||||
| 266 | WB63K5079 | Base Rail |
|
- | |||||
| 266 | WB63K5088 | Base Rail Microwave |
|
- | |||||
| 270 | WB34K5085 | Light Cover |
|
- | |||||
| 275 | WB34K5078 | Vent Box Cover |
|
- | |||||
| 279 | WB38K5028 | Vent Box Asm-black |
|
- | |||||
| 281 | WB14K5006 | Ov Dr Hinge-rt |
|
- | |||||
| 281 | WB14K5007 | Ov Dr Hinge-lt |
|
- | |||||
| 286 | WB9K5010 | Ov Dr Spring |
|
- | |||||
| 294 | WS01A01413 | Broil Element Support (Replaces: WB2X9719) |
|
$ 11.71 | |||||
| 297 | WB36K5101 | Vent Trim End Cap-lt-blk |
|
- | |||||
| 297 | WB36K5102 | Vent Trim End Cap-rt-blk |
|
- | |||||
| 411 | WB63K5087 | Cabinet Back |
|
- | |||||
| 413 | WB36K5116 | End Cap-center-rt-blk |
|
- | |||||
| 413 | WB63K5124 | Bottom Plate |
|
- | |||||
| 413 | WB36K5115 | Ctr Trim End Cap-lt-blk |
|
- | |||||
| 421 | WB2X7626 | Antenna |
|
- | |||||
| 421 | WB7K5101 | Vent Trim |
|
- | |||||
| 421 | WB7K5277 | Upper Vent Trim-blk |
|
- | |||||
| 426 | WB7K5264 | Lower Microwave Trim |
|
- | |||||
| 432 | WB63K5092 | Cabinet Top |
|
- | |||||
| 438 | WB1K5063 | Lo Trim Spring Clip |
|
- | |||||
| 438 | WB2X7723 | Bottom Window |
|
- | |||||
| 446 | WB34K5089 | Wire Cover-center |
|
- | |||||
| 447 | WB34K5086 | Wire Cover-micro Side |
|
- | |||||
| 448 | WB34K5185 | Wire Cover |
|
- | |||||
| 470 | WB55K5022 | Compartment Bottom |
|
- | |||||
| 472 | WB63K5090 | Cabinet Side-rt |
|
- | |||||
| 472 | WB63K5091 | Cabinet Side-lt |
|
- | |||||
| 495 | WB2K5204 | Vent Trim Bracket |
|
- | |||||
| 497 | WB38K5047 | Vent Trim Barrier |
|
- | |||||
| 498 | WB2K5136 | Cabinet Brace |
|
- | |||||
| 499 | WB2K5205 | Cabinet Brace Bracket |
|
- | |||||
| 595 | WB2K5126 | Conduit Clamp |
|
- | |||||
| 600 | WB18K5215 | Wire Conduit Asm-double |
|
- | |||||
| 752 | WB0X6542 | Screw |
|
- | |||||
| 760 | WB1K5028 | Screw |
|
- | |||||
| 761 | WB1K5029 | Screw-black |
|
- | |||||
| 769 | WB1X500 | Screw |
|
- | |||||
| 801 | WB1M1 | Screw |
|
- | |||||
| 809 | WG02A00781 | Screw (Replaces: WB1X1137) |
|
$ 15.88 | |||||
| 810 | WB1X1253 | Screw |
|
- | |||||
| 813 | WS01A00445 | Screw (Replaces: WB1X1261) |
|
$ 13.90 | |||||
| 833 | WB1X1131 | Screw |
|
- | |||||
| 854 | WB1X1328 | Screw-black |
|
- | |||||
| 854 | WB1X1164 | Screw-brt. Ni. |
|
- | |||||
| 875 | WG04A00781 | Scr 8-18 Ab Hxw 3/8 S (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 926 | WB1X1260 | Ground Washer |
|
- | |||||
| 935 | WB1X1201 | Washer |
|
- | |||||
| 950 | WB1K5135 | Cable Clip |
|
- | |||||
| 966 | WB1K5064 | Push On Clip |
|
- |
