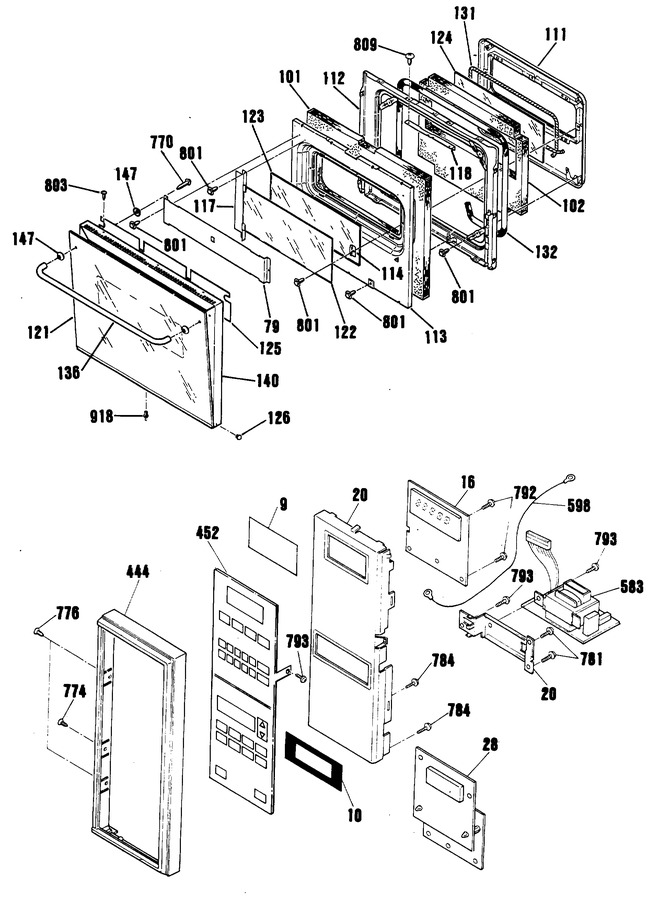

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	WB57K5076		Smoke Plate-upper		Appelez-nous	-
10	WB57K5079		Smoke Plate-lower		Appelez-nous	-
16	WB27K5067		Dp Circuit Ass'y				$ 258.77
20	WB2K5295		Upper Panel Bracket		Appelez-nous	-
20	WB2K5192		Bracket-instrument		Appelez-nous	-
20	WB2X7733		Fan Motor Bracket		Appelez-nous	-
20	WB2X7731		Hv Capacitor Bracket		Appelez-nous	-
20	WB2K5193		Bracket-transformer		Appelez-nous	-
28	WB12K5005		Elec Oven Control (t07)		Appelez-nous	-
79	WB34K5077		Ov Dr Baffle		Appelez-nous	-
101	WB35K5039		Ov Door Insulation		Appelez-nous	-
102	WB35K5050		Door Plug Insulation		Appelez-nous	-
111	WB55K5018		Ov Dr Lining Plug		Appelez-nous	-
112	WB55K5017		Ov Dr Lining Asm		Appelez-nous	-
112	WB55K5028		Door Frame M/w		Appelez-nous	-
113	WB2K5127		Ov Dr Ins Retainer		Appelez-nous	-
114	WB2M1		Ov Dr Glass Retainer		Appelez-nous	-
117	WB2K5131		Ov Dr Glass Retainer		Appelez-nous	-
118	WB2K5215		Ov Dr Stiffener Asm		Appelez-nous	-
121	WB57K5205		Door Screen		Appelez-nous	-
121	WB57K5051		Dr Glass W/reflector-lo		Appelez-nous	-
122	WB57K5102		Ov Dr Intermediate Glass		Appelez-nous	-
123	WB55K5030		Door Screen-m/w		Appelez-nous	-
123	WB57K5038		Ov Dr Inner Glass-lower		Appelez-nous	-
124	WB57K5063		Ov Dr Inner Glass		Appelez-nous	-
124	WB7X6925		Trim Door		Appelez-nous	-
125	WB34K5091		Heat Reflector		Appelez-nous	-
126	WB3K5077		Plug Button		Appelez-nous	-
131	WB2X9168		Inner Glass Seal		Appelez-nous	-
132	WB32K5038		Oven Door Gasket		Appelez-nous	-
136	WB15K5023		Ov Dr Handle-blk		Appelez-nous	-
140	WB56K5114		Ov Dr Frame W/ref-up-blk		Appelez-nous	-
140	WB55X5326		Frame Inner		Appelez-nous	-
147	WB2K5312		Door Handle Spacer-blk		Appelez-nous	-
444	WB7K5141		Escutcheon Base		Appelez-nous	-
452	WB24K5106		Keyboard Unit		Appelez-nous	-
583	WB20K5036		Transformer		Appelez-nous	-
598	WB18K5297		Lead Wire		Appelez-nous	-
770	WB1K5072		Screw		Appelez-nous	-
774	WB1K5090		Screw		Appelez-nous	-
776	WB1K5092		Screw		Appelez-nous	-
781	WB1K5095		Screw		Appelez-nous	-
784	WB1K5098		Screw		Appelez-nous	-
792	WB1K5104		Screw		Appelez-nous	-
793	WB1K5105		Screw		Appelez-nous	-
801	WB1M1		Screw		Appelez-nous	-
803	WB1X1176		Screw-black		Appelez-nous	-
809	WG02A00781		Screw   (Replaces: WB1X1137)				$ 15.88
918	WB1K5071		Plastic Rivet		Appelez-nous	-
