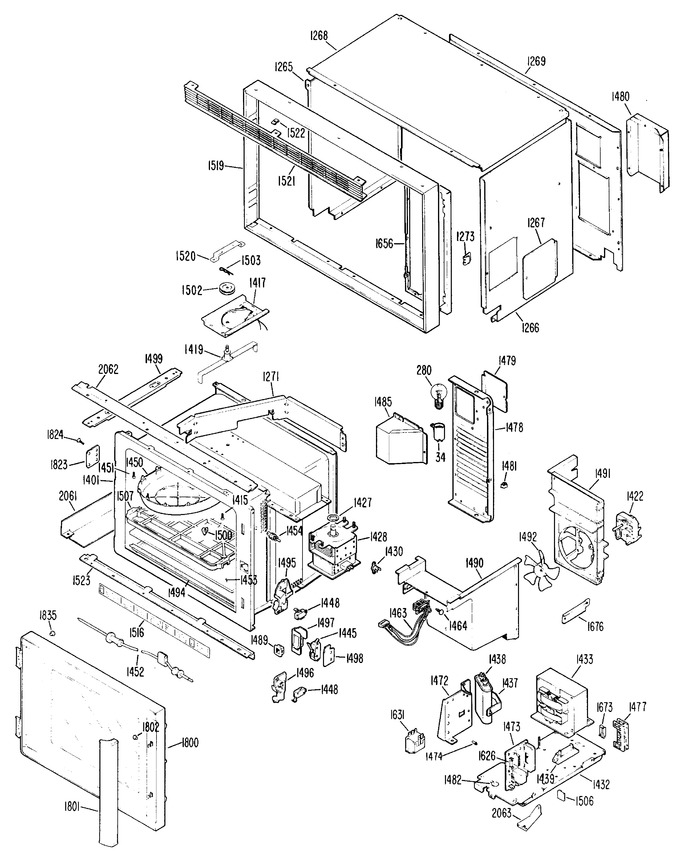

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Door Lower Oven
2 - Component Group
3 - Lower Oven
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 34 | WB8X5086 | Socket Lamp |
|
- | |||||
| 280 | WX12X1510 | Lamp 40w Appliance |
|
- | |||||
| 740 | WB2X7226 | Clip Wire Black |
|
- | |||||
| 740 | WB2X7066 | Clip Wire(natural) Large |
|
- | |||||
| 789 | WB27X5271 | Relay |
|
- | |||||
| 1265 | WB56X5931 | Side Case Upper Lh |
|
- | |||||
| 1266 | WB56X5932 | Side Case Upper Rh |
|
- | |||||
| 1267 | WB2X7255 | Cover Access |
|
- | |||||
| 1268 | WB56X5933 | Top Case Upper |
|
- | |||||
| 1269 | WB49X5301 | Back Case |
|
- | |||||
| 1271 | WB49X5303 | Baffle Air |
|
- | |||||
| 1273 | WB2X7258 | Clip Trim |
|
- | |||||
| 1401 | WB53X5085 | Cavity & Frame Asm |
|
- | |||||
| 1415 | WB1X5627 | Fastener |
|
- | |||||
| 1417 | WB26X5071 | Antenna Drive Asm |
|
- | |||||
| 1419 | WB2X7214 | Antenna Asm |
|
- | |||||
| 1422 | WB26X5063 | Motor, Blower |
|
- | |||||
| 1427 | WB2X6046 | Rf Gasket |
|
- | |||||
| 1428 | WB18X5048 | Hi Voltage Wire |
|
- | |||||
| 1428 | WB27X5142 | Magnetron |
|
- | |||||
| 1430 | WB27X5219 | Thermostat |
|
- | |||||
| 1432 | WB2X7063 | Component Plate Asm |
|
- | |||||
| 1433 | WB2X7202 | Barrier |
|
- | |||||
| 1433 | WB27X5215 | Transformer, Hi-voltage |
|
- | |||||
| 1437 | WB2X7061 | Strap Capacitor |
|
- | |||||
| 1438 | WB27X5212 | Capacitor |
|
- | |||||
| 1439 | 11QBP0235 | Rectifier (Replaces: WB27X5070) |
|
$ 15.33 | |||||
| 1445 | WB24X5157 | Switch, Monitor |
|
- | |||||
| 1448 | WB24X5168 | Switch Door |
|
- | |||||
| 1450 | WB56X5882 | Cover Stirrer |
|
- | |||||
| 1451 | WB1X5453 | Fastener |
|
- | |||||
| 1452 | WB20X5045 | Probe |
|
- | |||||
| 1453 | WB48X5062 | Shelf Oven |
|
- | |||||
| 1454 | WB20X5042 | Receptacle Probe |
|
- | |||||
| 1463 | WB27X5165 | Sensor Asm |
|
- | |||||
| 1464 | WB1X5543 | Clip Mtg Sensor |
|
- | |||||
| 1472 | WB2X7060 | Bracket Capacitor |
|
- | |||||
| 1473 | WB27X5246 | Control, Power Module |
|
- | |||||
| 1474 | WB2X7062 | Spacer |
|
- | |||||
| 1477 | WB2X7065 | Shield |
|
- | |||||
| 1478 | WB49X5275 | Extension Back |
|
- | |||||
| 1479 | WB2X7068 | Cover |
|
- | |||||
| 1480 | WB49X5302 | Cover Intake |
|
- | |||||
| 1481 | WB2X7069 | Clip Wire |
|
- | |||||
| 1485 | WB2X6855 | Shield (film) |
|
- | |||||
| 1485 | WB2X7073 | Shield Lamp |
|
- | |||||
| 1489 | WB10X5138 | Receptacle Prong |
|
- | |||||
| 1490 | WB49X5300 | Plenum Air |
|
- | |||||
| 1491 | WB2X7254 | Housing Fan |
|
- | |||||
| 1492 | WB2X7079 | Blade Fan |
|
- | |||||
| 1494 | WB2X7080 | Side Support Rh |
|
- | |||||
| 1494 | WB2X7081 | Side Support Lh |
|
- | |||||
| 1494 | WB2X7082 | Support Shelf (front) |
|
- | |||||
| 1494 | WB2X7098 | Support Shelf (rear) |
|
- | |||||
| 1495 | WB2X7083 | Support Switch Top |
|
- | |||||
| 1496 | WB2X7084 | Support Switch Bottom |
|
- | |||||
| 1497 | WB2X7085 | Support Switch |
|
- | |||||
| 1498 | WB2X7086 | Barrier |
|
- | |||||
| 1499 | WB49X5274 | Brace Extension |
|
- | |||||
| 1500 | WB2X7087 | Support Rack |
|
- | |||||
| 1502 | WB2X7292 | Pulley |
|
- | |||||
| 1506 | WB17X5077 | Housing Socket Pkg 7 Pin |
|
- | |||||
| 1506 | WB17X5078 | Housing Socket Pkg 5 Pin |
|
- | |||||
| 1507 | WB48X5063 | Rack Meal |
|
- | |||||
| 1516 | WB7X6801 | Label Menu Code |
|
- | |||||
| 1519 | WB7X6805 | Trim Frame |
|
- | |||||
| 1520 | WB2X7303 | Bracket Stop |
|
- | |||||
| 1521 | WB7X6813 | Grille |
|
- | |||||
| 1523 | WB49X5185 | Rail Support Front |
|
- | |||||
| 1626 | CF15FB | Fuse (Replaces: WB27X7) |
|
Immediately | $ 3.63 | ||||
| 1626 | WB2X7224 | Barrier Fuse |
|
- | |||||
| 1656 | WB2X7252 | Extension Frame |
|
- | |||||
| 1676 | WB2X7253 | Brace |
|
- | |||||
| 1800 | WB56X5925 | Door Asm |
|
- | |||||
| 1801 | WB15X5139 | Handle |
|
- | |||||
| 1823 | WB10X5133 | Support Hinge |
|
- | |||||
| 1824 | WB1X5581 | Screw Torx |
|
- | |||||
| 1835 | WB1X5584 | Screw Mtg Hinge |
|
- | |||||
| 2061 | WB2X7249 | Guide Shim |
|
- | |||||
| 2062 | WB2X7250 | Bracket Grille |
|
- | |||||
| 2063 | WB2X7251 | Bracket |
|
- | |||||
| 32767 | WB27X5230 | Varistor |
|
- | |||||
| 32767 | WB1X5582 | Screw Mtg Handle |
|
- |
