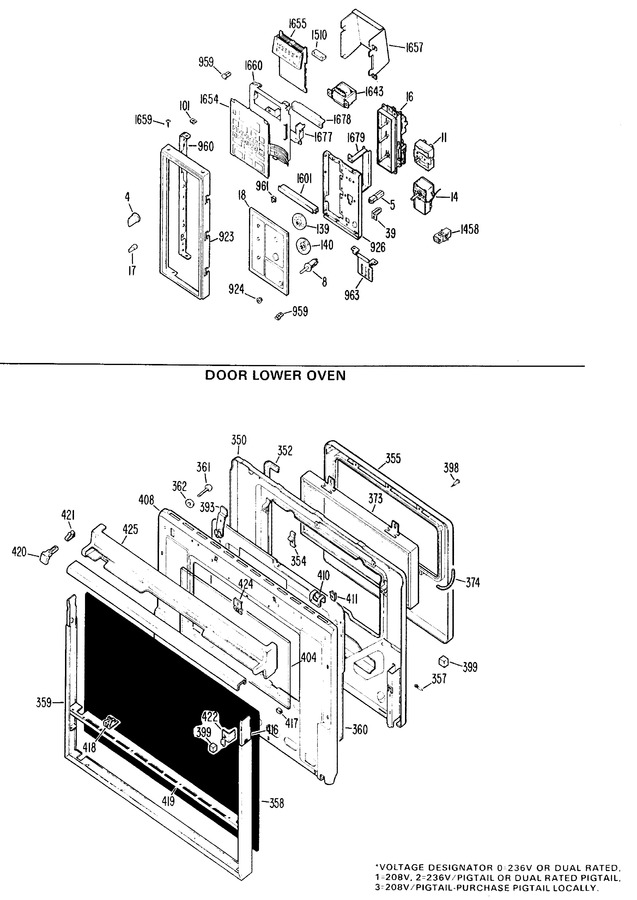

1 - Door Lower Oven
2 - Component Group
3 - Lower Oven
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | WB3X5618 | Knob |
|
- | |||||
| 5 | WB2X3468 | Neon Lamp 240v |
|
- | |||||
| 5 | WB2X1608 | Neon Lamp 118v |
|
$ 31.65 | |||||
| 8 | WB24X108 | Switch, Latch Release |
|
- | |||||
| 11 | WB22X5116 | Switch, Oven |
|
- | |||||
| 14 | WB24X234 | Thermostat, Dual |
|
- | |||||
| 14 | WB2X6494 | Barrier |
|
- | |||||
| 16 | WB19X5268 | Timer |
|
- | |||||
| 17 | WB3X5630 | Knob Timer |
|
- | |||||
| 18 | WB36X5512 | Crystal |
|
- | |||||
| 18 | WB2X3232 | Pad Crystal |
|
- | |||||
| 39 | WB2X6624 | Bracket Lamp Neon |
|
- | |||||
| 103 | WB2X1119 | Speednut |
|
- | |||||
| 139 | WB4X5107 | Dial Oven |
|
- | |||||
| 140 | WB4X5106 | Dial Temp |
|
- | |||||
| 146 | WB1X271 | Nut Mtg Cap |
|
- | |||||
| 148 | WB1X5763 | Screw |
|
- | |||||
| 148 | WS01A01408 | Screw (Replaces: WB1X5716) |
|
$ 4.20 | |||||
| 260 | WB10X158 | Hinge Lever Rh & Lh |
|
- | |||||
| 303 | WG02F04576 | Glass Oven Lamp (Replaces: WB36X389) |
|
$ 20.65 | |||||
| 350 | WB2X3314 | Reflector Panel |
|
- | |||||
| 350 | WB2X3312 | Insulation Door |
|
- | |||||
| 350 | WB55X5247 | Door Liner |
|
- | |||||
| 352 | WB2X3138 | Gasket Door |
|
- | |||||
| 354 | WB9X154 | Strike Spring |
|
- | |||||
| 355 | WB55X5246 | Panel Inner |
|
- | |||||
| 355 | WB2X2276 | Reflector Foil |
|
- | |||||
| 355 | WB2X3313 | Insulation Door |
|
- | |||||
| 357 | WB1X558 | Screw |
|
- | |||||
| 358 | WB36X557 | Glass Black |
|
- | |||||
| 359 | WB7X1150 | Trim Frame-lower Door |
|
- | |||||
| 360 | WB49X354 | Guard Insulation |
|
- | |||||
| 361 | WZ04X0425 | Screw |
|
- | |||||
| 362 | WB1X119 | Washer Screw |
|
- | |||||
| 365 | WB15X154 | Grip Asm Handle |
|
- | |||||
| 373 | WB36X5495 | Window Pack |
|
- | |||||
| 374 | WB2X3048 | Gasket Window |
|
- | |||||
| 393 | WB9X153 | Spring Toggle |
|
- | |||||
| 397 | WB1X5754 | Screw Mtg End Cap |
|
- | |||||
| 398 | WB1X600 | Screw Shoulder |
|
- | |||||
| 399 | WB2X3285 | Pad |
|
- | |||||
| 404 | WB36X540 | Crystal Window |
|
- | |||||
| 408 | WB55X419 | Panel Middle Door |
|
- | |||||
| 408 | WB2X7208 | Reflector Panel |
|
- | |||||
| 410 | WB2X3310 | Bracket Panel |
|
- | |||||
| 411 | WB1X439 | Speednut Bracket |
|
- | |||||
| 412 | WB1X589 | Speednut Panel |
|
- | |||||
| 416 | WB2X3334 | Brace Side Rh |
|
- | |||||
| 416 | WB2X3335 | Brace Side Lh |
|
- | |||||
| 417 | WB2X3332 | Clip Crystal |
|
- | |||||
| 418 | WB2X3333 | Bracket Crystal |
|
- | |||||
| 419 | WB2X3336 | Brace Bottom |
|
- | |||||
| 420 | WB2X3337 | Plunger Door Light |
|
- | |||||
| 421 | WB9X157 | Spring Plunger |
|
- | |||||
| 422 | WB2X7209 | Clip Door |
|
- | |||||
| 424 | WB2X3331 | Clamp Crystal |
|
- | |||||
| 425 | WB7X1151 | Trim Top Door |
|
- | |||||
| 456 | WZ04X0345 | Screw |
|
- | |||||
| 461 | WB1X593 | Screw Mtg Clip |
|
- | |||||
| 749 | WB1X5578 | Screw Mtg Trim |
|
- | |||||
| 790 | WB1X365 | Speednut |
|
- | |||||
| 796 | WB2X6654 | Speednut U Type |
|
- | |||||
| 923 | WB7X6806 | Trim Control |
|
- | |||||
| 924 | WB2X6497 | Plug Button |
|
- | |||||
| 926 | WB2X7259 | Bracket Instrument |
|
- | |||||
| 959 | WB2X7238 | Clip Mtg Trim |
|
- | |||||
| 960 | WB2X7239 | Support Side L H |
|
- | |||||
| 960 | WB2X7240 | Support Side R H |
|
- | |||||
| 961 | WB1X5628 | Screw Mtg Crystal |
|
- | |||||
| 961 | WB2X7241 | Clip |
|
- | |||||
| 963 | WB2X7223 | Hinge Control Panel |
|
- | |||||
| 1201 | WS01A01150 | Screw (Replaces: WB1X5364) |
|
$ 3.97 | |||||
| 1415 | WB1X5627 | Fastener |
|
- | |||||
| 1451 | WB1X5714 | Fastener |
|
- | |||||
| 1452 | WB20X5045 | Probe |
|
- | |||||
| 1454 | WB20X5042 | Receptacle Probe |
|
- | |||||
| 1458 | WB17X5073 | Terminal Blk Asm (1 Pin) |
|
- | |||||
| 1458 | WB17X5062 | Terminal Blk Asm (12pin) |
|
- | |||||
| 1503 | WB2X6844 | Pin Cotter |
|
- | |||||
| 1510 | WB17X5076 | Conn Blk Smart Bd (9pin) |
|
- | |||||
| 1527 | WB2X7606 | Barrier |
|
- | |||||
| 1601 | WB7X6807 | Trim Crystal |
|
- | |||||
| 1643 | WB27X5303 | Transformer |
|
- | |||||
| 1654 | WB27X5306 | Key Panel Asm |
|
- | |||||
| 1655 | WB27X5301 | Smart Board & Display |
|
- | |||||
| 1657 | WB2X7229 | Cover |
|
- | |||||
| 1660 | WB2X7260 | Bracket Instrument |
|
- | |||||
| 1677 | WB2X7262 | Support Smart Board |
|
- | |||||
| 1678 | WB2X7263 | Bracket Transformer |
|
- | |||||
| 1679 | WB2X7264 | Bracket Wiring |
|
- | |||||
| 1680 | WB2X7587 | Stand Off Circuit Board |
|
- | |||||
| 32767 | WB26X5063 | Motor, Blower |
|
- | |||||
| 32767 | WB1X5510 | Scr 8-18 B T 11/16 S |
|
- | |||||
| 32767 | CF15FB | Fuse (Replaces: WB27X7) |
|
Immediately | $ 3.63 | ||||
| 32767 | 31-0425 | Install Instructions |
|
- | |||||
| 32767 | WZ04X0394 | Screw |
|
- | |||||
| 32767 | WB1X5471 | Scr 8-18 Ab T 15/32 S |
|
- | |||||
| 32767 | 11QBP0235 | Rectifier (Replaces: WB27X5070) |
|
$ 15.33 | |||||
| 32767 | WB24X5168 | Switch, Door |
|
- | |||||
| 32767 | WZ07X0035 | Nut Hex |
|
- | |||||
| 32767 | WZ04X0372 | Scr 6-20 Ab Hxw 3/8 S |
|
- | |||||
| 32767 | WS01A02255 | Scr 8-18 Ba Ihw 3/8 S (Replaces: WB1X536) |
|
$ 3.97 | |||||
| 32767 | WB27X5301 | Smart Board & Display |
|
- | |||||
| 32767 | WZ04X0255 | Scr 8-18x1 Ab Ovr 1/2 S |
|
- | |||||
| 32767 | 04-9073 | Pm Sheet Tip In |
|
- | |||||
| 32767 | WB2X2115 | Insulation |
|
- | |||||
| 32767 | WB20X5045 | Probe |
|
- | |||||
| 32767 | 31-0364 | Pm Manual Mini |
|
- | |||||
| 32767 | WZ04X0397 | Scr 6-32 C Flr 5/16 S |
|
- | |||||
| 32767 | WB1X5582 | Screw Mtg Handle |
|
- | |||||
| 32767 | WZ04X0396 | Scr 10-16 B Hxw 1/4 S |
|
- | |||||
| 32767 | WB1X448 | Washer |
|
- | |||||
| 32767 | WB27X5142 | Magnetron |
|
- | |||||
| 32767 | WB2X2116 | Insulation |
|
- | |||||
| 32767 | WB1X5577 | Speednut |
|
- | |||||
| 32767 | WZ04X0413 | Screw |
|
- | |||||
| 32767 | WB27X5212 | Capacitor |
|
- | |||||
| 32767 | WB24X5157 | Switch, Monitor |
|
- | |||||
| 32767 | WZ05X0234 | Screw Mt Switch |
|
- | |||||
| 32767 | WB17X171 | Terminal Male & Female |
|
- | |||||
| 32767 | WZ07X0029 | Nut |
|
- | |||||
| 32767 | 31-0335 | Pm Manual Mini |
|
- | |||||
| 32767 | WZ04X0345 | Screw |
|
- | |||||
| 32767 | WB27X5215 | Transformer, Hi-voltage |
|
- | |||||
| 32767 | WZ10X0114 | Lockwasher |
|
- | |||||
| 32767 | WB2X6659 | Pad |
|
- | |||||
| 32767 | WB1X500 | Terminal Screw |
|
- | |||||
| 32767 | WB2X3191 | Gasket |
|
- | |||||
| 32767 | 49-4662 | Cookbook |
|
- | |||||
| 32767 | WZ04X0421 | Scr 8-18 B Hxw 3/8 S |
|
- | |||||
| 32767 | WB1X528 | Speednut |
|
- | |||||
| 32767 | WB27X5219 | Thermostat |
|
- | |||||
| 32767 | 49-4608 | Manual Users |
|
- | |||||
| 32767 | WZ04X0232 | Scr 8-18 Ab Hxs 3/8 S |
|
- | |||||
| 32767 | WB2X3152 | Pad |
|
- | |||||
| 32767 | WB9X88 | Lockwasher |
|
- | |||||
| 32767 | WB1X438 | Screw & Washer Asm |
|
- |
