SELECT A DIAGRAM

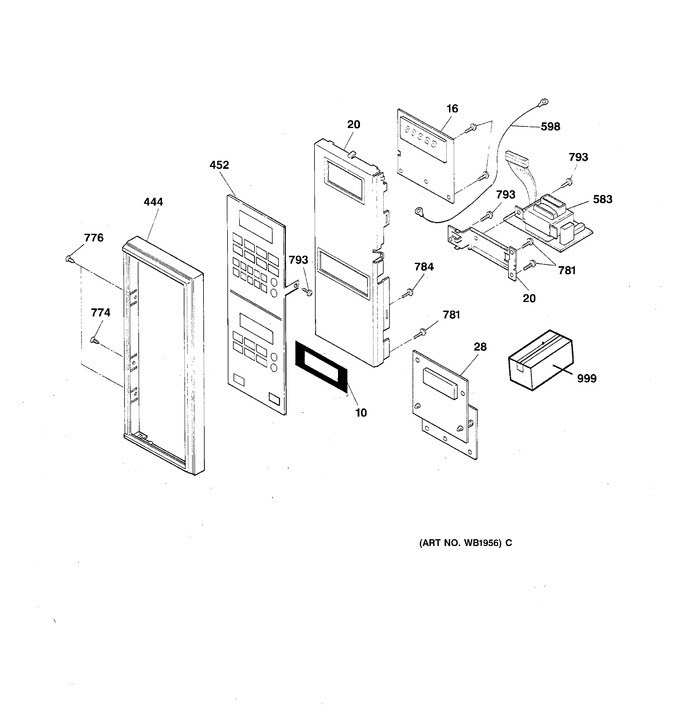

1 - Control Panel


2 - Microwave Door


3 - Microwave Body


4 - Body With Microwave Inclosure


5 - Oven Door


6 - Door Lock


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	WB57K5302		Smoke Plate-lower		Appelez-nous	-
16	WB27K5067		Dp Circuit Asm				$ 258.77
20	WB2X7731		Hv Capacitor Bracket		Appelez-nous	-
20	WB2X7733		Fan Motor Bracket		Appelez-nous	-
20	WB2K5295		Upper Panel Bracket		Appelez-nous	-
20	WB2K5382		Bracket-transformer		Appelez-nous	-
20	WB2K5383		Bracket-instrument		Appelez-nous	-
28	WB12K5005		Elec Oven Control (t07)		Appelez-nous	-
444	WB7K5142		Excutcheon Base-m/w		Appelez-nous	-
452	WB24T10003		Membrane Unit-wht		Appelez-nous	-
583	WB20K5042		Transformer		Appelez-nous	-
598	WB18K5297		Lead Wire		Appelez-nous	-
760	WB1K5028		Screw		Appelez-nous	-
774	WB1K5089		Screw		Appelez-nous	-
776	WB1K5091		Screw-chrome		Appelez-nous	-
781	WB1K5095		Screw		Appelez-nous	-
784	WB1K5098		Screw		Appelez-nous	-
793	WB1X5618		Screw		Appelez-nous	-
847	WB1X1180		Screw-black		Appelez-nous	-
999	49-8762		Pm Manual Use Care		Appelez-nous	-
999	WB0X6432		Lead Wire		Appelez-nous	-
999	WB6K5022		Cook Book		Appelez-nous	-
999	WB18K5216		Main Wire Harness		Appelez-nous	-
999	WB18K5300		Main Wire Harness M/w		Appelez-nous	-
999	WB18K5301		Lead Wire		Appelez-nous	-
999	WB18K5470		Hv Lead Wire-mag To Cap		Appelez-nous	-
999	WB18K5650		Lock Motor Harness-lower		Appelez-nous	-
999	31-10117		Installation Instr.		Appelez-nous	-
999	31-13034		Mw-mini Man/wire Diagram		Appelez-nous	-
999	31-13111		Mini Manual W/w Diagram		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
