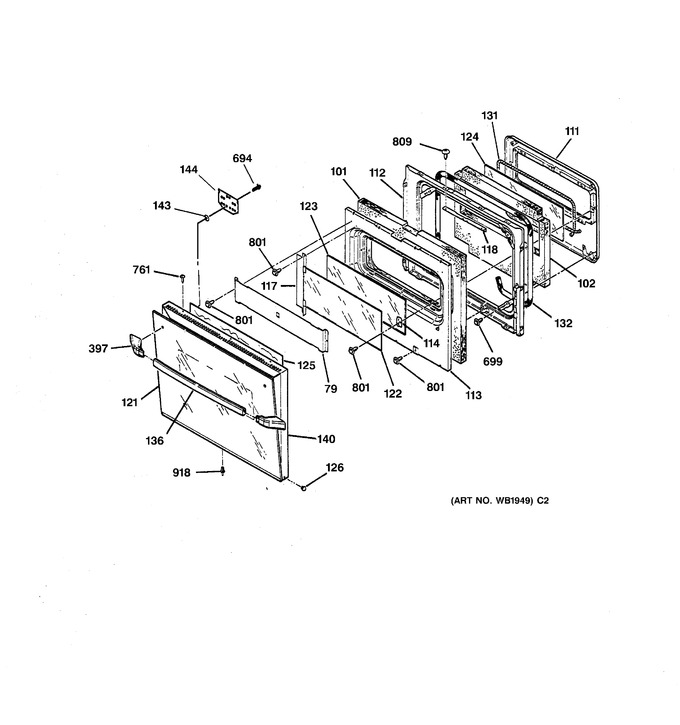

SELECT A DIAGRAM

1 - Control Panel


2 - Microwave Door


3 - Microwave Body


4 - Body Section With Microwave Enclosure


5 - Door


6 - Door Lock


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
79	WB34K5077		Ov Dr Baffle		Appelez-nous	-
101	WB35K5039		Ov Door Insulation		Appelez-nous	-
102	WB35K5050		Door Plug Insulation		Appelez-nous	-
111	WB55T10007		Door Plug		Appelez-nous	-
112	WB55K5029		Door Frame-m/w		Appelez-nous	-
112	WB55T10006		Door Lining		Appelez-nous	-
113	WB2K5127		Ov Dr Ins Retainer		Appelez-nous	-
114	WB2M1		Ov Dr Glass Retainer		Appelez-nous	-
117	WB2K5131		Ov Dr Glass Retainer		Appelez-nous	-
118	WB2K5132		Ov Dr Lining Stiffener		Appelez-nous	-
121	WB57K5259		Oven Door Glass-white		Appelez-nous	-
121	WB57K5229		Door Screen-starfire		Appelez-nous	-
122	WB57K5102		Ov Dr Intermediate Glass		Appelez-nous	-
123	WB57K5038		Ov Dr Inner Glass-lower		Appelez-nous	-
123	WB55K5030		Door Screen-m/w		Appelez-nous	-
124	WB7K5140		Door Trim M/w		Appelez-nous	-
124	WB56X1907		Center Glass		Appelez-nous	-
126	WB3K5077		Plug Button		Appelez-nous	-
131	WB2X9168		Inner Glass Seal		Appelez-nous	-
132	WB32K5038		Oven Door Gasket		Appelez-nous	-
136	WB15K5085		Oven Door Handle-white		Appelez-nous	-
140	WB55X5326		Frame Inner		Appelez-nous	-
140	WB56K5159		Oven Door Frame-white		Appelez-nous	-
143	WB2K5191		Door Sash Left M/w		Appelez-nous	-
143	WB2K5147		Glass Spacer		Appelez-nous	-
144	WB2K5395		Reinforcement Plate		Appelez-nous	-
397	WB7K5319		Handle End Caps		Appelez-nous	-
694	WG02A00792		Screw   (Replaces: WB1K5157)				$ 3.97
699	WB1K5150		Screw		Appelez-nous	-
761	WB1K5185		Screw-white		Appelez-nous	-
761	WB1K5029		Screw-black		Appelez-nous	-
801	WB1M1		Screw		Appelez-nous	-
809	WG02A00781		Screw   (Replaces: WB1X1137)				$ 15.88
918	WB1K5071		Plastic Rivet		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
