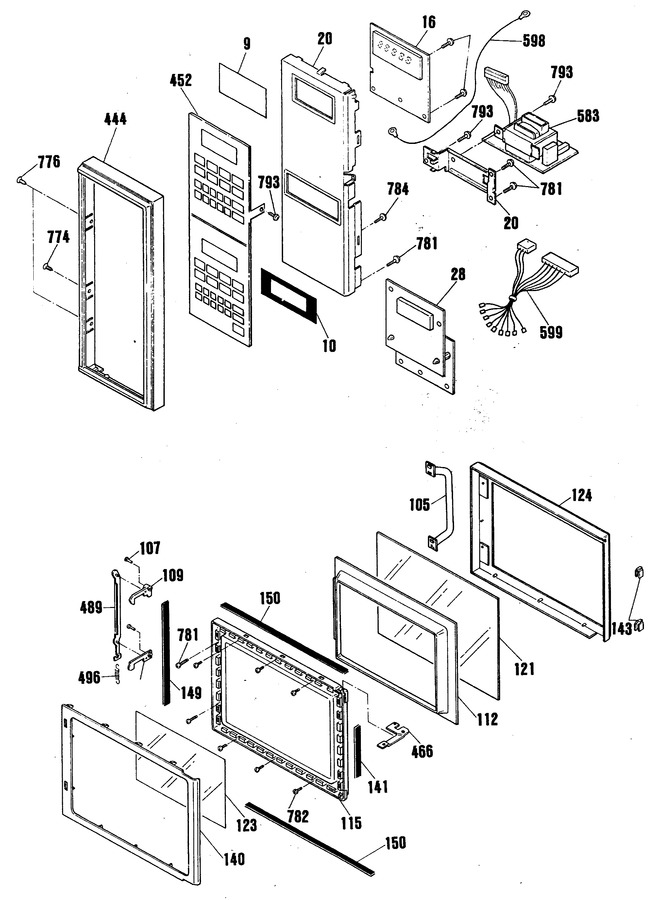

SELECT A DIAGRAM

1 - Component Group


2 - Component Group


3 - Component Group


4 - Component Group


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WB36K5113		End Cap-lt		Appelez-nous	-
2	WB36K5114		End Cap-rt		Appelez-nous	-
9	WB57K5076		Smoke Plate-upper		Appelez-nous	-
10	WB57K5079		Smoke Plate-lower		Appelez-nous	-
16	WB27K5067		Dr Circuit Board				$ 258.77
20	WB2X7731		Hv Capacitor Bracket		Appelez-nous	-
20	WB2K5192		Bracket-instrument		Appelez-nous	-
20	WB2K5193		Bracket-transformer		Appelez-nous	-
20	WB2X7733		Fan Motor Bracket		Appelez-nous	-
20	WB2K5189		Upper Panel Bracket		Appelez-nous	-
28	WB12K5005		Elec Oven Control (t07)		Appelez-nous	-
105	WB15K5033		Door Handle		Appelez-nous	-
107	WB2X7559		Pin Key Lever		Appelez-nous	-
109	WB15K5037		Door Key-upper		Appelez-nous	-
109	WB15K5038		Door Key-lower		Appelez-nous	-
112	WB55K5028		Door Frame M/w		Appelez-nous	-
112	WB55K5017		Ov Dr Lining Asm		Appelez-nous	-
115	WB55X5285		Door Asm		Appelez-nous	-
121	WB36X5637		Door Screen-m/w		Appelez-nous	-
121	WB57K5051		Dr Glass W/reflector-lo		Appelez-nous	-
123	WB56X1901		Oven Door Glass-center		Appelez-nous	-
123	WB55K5030		Door Screen-m/w		Appelez-nous	-
124	WB57K5063		Ov Dr Inner Glass		Appelez-nous	-
124	WB7X6925		Trim Door		Appelez-nous	-
140	WB56K5033		Frame W/reflector Asm		Appelez-nous	-
140	WB55X5326		Door-m/w		Appelez-nous	-
141	WB2X7857		Door Sash Rubber		Appelez-nous	-
143	WB2X7735		Door Sash Left M/w		Appelez-nous	-
146	WB2K5151		Dr Handle Spacer		Appelez-nous	-
149	WB2X7642		Ferrite Rubber		Appelez-nous	-
150	WB2X7643		Ferrite Rubber Top/btm		Appelez-nous	-
156	WB24K5049		Limit Switch		Appelez-nous	-
249	WB2K5138		Microwave Support		Appelez-nous	-
444	WB7K5141		Escutcheon Base		Appelez-nous	-
452	WB24K5053		Membrane Switch		Appelez-nous	-
466	WB10X5179		Hinge Upper		Appelez-nous	-
466	WB10X5184		Hinge Bottom		Appelez-nous	-
489	WB15K5039		Door Key Lever		Appelez-nous	-
489	WB10X5186		Key & Spacer Package		Appelez-nous	-
496	WB9K5015		Door Key Spring		Appelez-nous	-
496	WB6K5019		Fuse Label		Appelez-nous	-
583	WB20K5017		Lv Transformer		Appelez-nous	-
598	WB18K5297		Lead Wire		Appelez-nous	-
599	WB18K5299		Lead Wire		Appelez-nous	-
753	WB1K5086		Jack Nut		Appelez-nous	-
774	WB1K5089		Screw		Appelez-nous	-
776	WB1K5091		Screw-chrome		Appelez-nous	-
781	WB1K5095		Screw		Appelez-nous	-
782	WB1K5096		Screw		Appelez-nous	-
784	WB1K5098		Screw		Appelez-nous	-
793	WB1K5105		Screw		Appelez-nous	-
