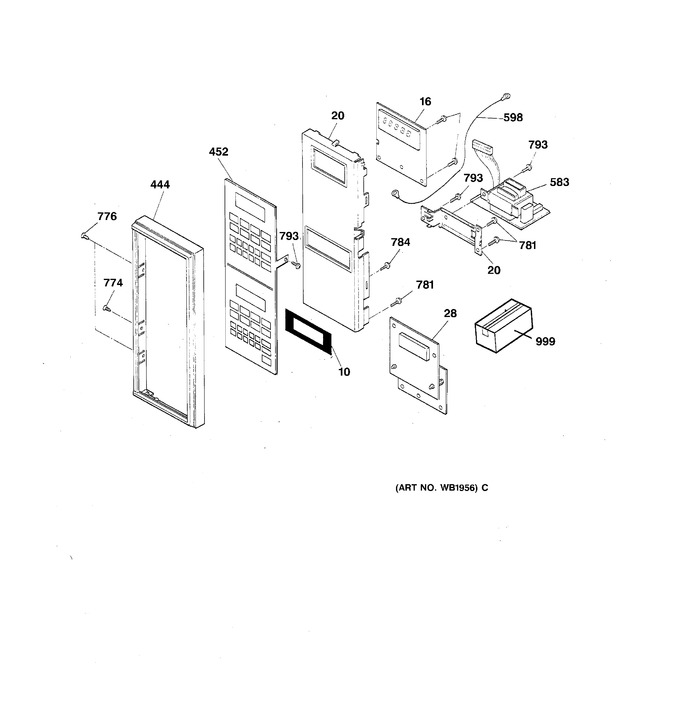

SELECT A DIAGRAM

1 - Control Panel


2 - Microwave Door


3 - Microwave Body Section


4 - Oven Body Section


5 - Oven Door


6 - Lock


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	WB57K5302		Smoke Plate-lower		Appelez-nous	-
16	WB27K5233		Dp Circuit Asm		Appelez-nous	-
20	WB2X7733		Fan Motor Bracket		Appelez-nous	-
20	WB2X7731		Hv Capacitor Bracket		Appelez-nous	-
20	WB2K5295		Upper Panel Bracket		Appelez-nous	-
20	WB2K5382		Bracket-transformer		Appelez-nous	-
20	WB2K5383		Bracket-instrument		Appelez-nous	-
28	WB12K5005		Elec Oven Control (t07)		Appelez-nous	-
444	WB7K5141		Escutcheon Base Black		Appelez-nous	-
452	WB24K5131		Membrane Switch		Appelez-nous	-
583	WB20K5042		Transformer		Appelez-nous	-
598	WB18K5297		Lead Wire U		Appelez-nous	-
774	WB1K5090		Screw		Appelez-nous	-
776	WB1K5092		Screw		Appelez-nous	-
781	WB1K5095		Screw		Appelez-nous	-
784	WB1K5098		Screw		Appelez-nous	-
793	WB1K5105		Screw		Appelez-nous	-
959	WB1K5085		Lower Trim Clip		Appelez-nous	-
999	31-13111		Mini Manual W/w Diagram		Appelez-nous	-
999	49-8180		Use & Care Manual		Appelez-nous	-
999	WB0X6432		Lead Wire		Appelez-nous	-
999	WB6K5022		Cook Book		Appelez-nous	-
999	WB18K5216		Main Wire Harness		Appelez-nous	-
999	WB18K5217		Latch Motor W Harness-lo		Appelez-nous	-
999	WB18K5301		Lead Wire		Appelez-nous	-
999	WB18K5470		Hv Lead Wire-mag To Cap		Appelez-nous	-
999	WB18K5478		Erc Wire Harness		Appelez-nous	-
999	13-13034		Mini Man/wire Diagram-mw		Appelez-nous	-
999	31-10117		Installation Instr.		Appelez-nous	-
999	WB18K5300		Harness		Appelez-nous	-
