View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

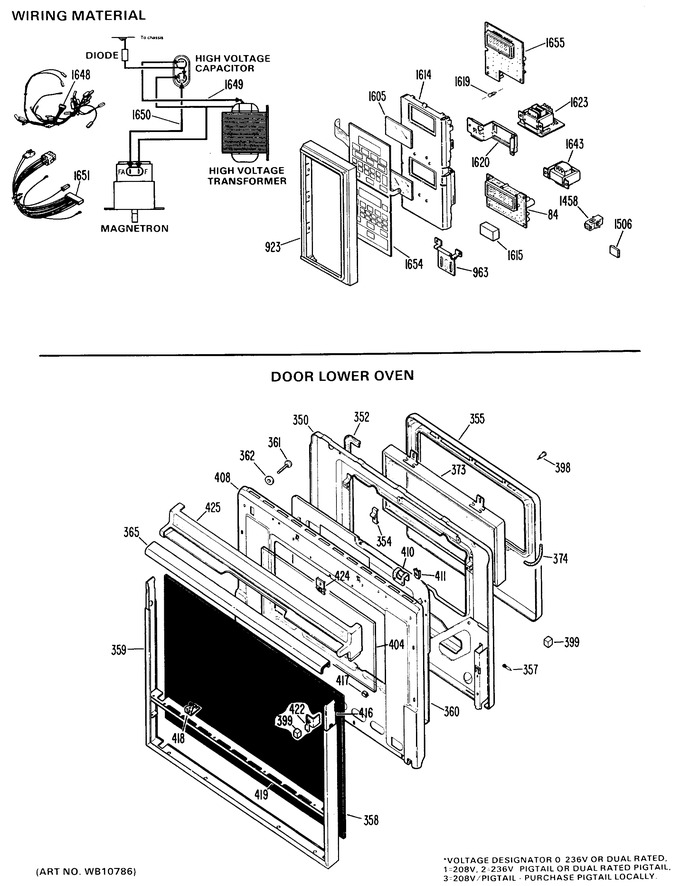

1 - Wiring Material
2 - Microwave Oven
3 - Lower Oven
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 84 | WB27X5382 | Smart Board Control Oven |
|
- | |||||
| 103 | WB2X1119 | Speednut |
|
- | |||||
| 148 | WS01A01408 | Screw (Replaces: WB1X5716) |
|
$ 4.20 | |||||
| 290 | WB24X199 | Switch Thermal Fan |
|
- | |||||
| 303 | WG02F04576 | Glass Oven Lamp (Replaces: WB36X389) |
|
$ 20.65 | |||||
| 350 | WB55X5321 | Door Liner |
|
- | |||||
| 350 | WB2X3312 | Insulation Door |
|
- | |||||
| 350 | WB2X3314 | Reflector Panel |
|
- | |||||
| 352 | WB2X3138 | Gasket Door |
|
- | |||||
| 354 | WB9X154 | Strike Spring |
|
- | |||||
| 355 | WB55X5303 | Panel Inner |
|
- | |||||
| 355 | WB2X2276 | Reflector Foil |
|
- | |||||
| 355 | WB2X3313 | Insulation Door |
|
- | |||||
| 357 | WB1X558 | Screw |
|
- | |||||
| 358 | WB36X557 | Glass Black |
|
- | |||||
| 359 | WB7X1150 | Trim Frame-lower Door |
|
- | |||||
| 360 | WB49X354 | Guard Insulation |
|
- | |||||
| 361 | WZ04X0425 | Screw |
|
- | |||||
| 362 | WB1X119 | Washer Screw |
|
- | |||||
| 365 | WB15X154 | Grip Asm Handle |
|
- | |||||
| 373 | WB36X5495 | Window Pack |
|
- | |||||
| 374 | WB2X3048 | Gasket Window |
|
- | |||||
| 397 | WZ04X0384 | Screw Mtg End Cap |
|
- | |||||
| 398 | WB1X600 | Screw Shoulder |
|
- | |||||
| 399 | WB2X3285 | Pad |
|
- | |||||
| 404 | WB36X540 | Crystal Window |
|
- | |||||
| 408 | WB55X419 | Panel Middle Door |
|
- | |||||
| 408 | WB2X7208 | Reflector Panel |
|
- | |||||
| 410 | WB2X3310 | Bracket Panel |
|
- | |||||
| 411 | WB1X439 | Speednut Bracket |
|
- | |||||
| 412 | WB1X589 | Speednut Panel |
|
- | |||||
| 416 | WB2X3334 | Brace Side Rh |
|
- | |||||
| 416 | WB2X3335 | Brace Side Lh |
|
- | |||||
| 417 | WB2X3332 | Clip Crystal |
|
- | |||||
| 418 | WB2X3333 | Bracket Crystal |
|
- | |||||
| 419 | WB2X3336 | Brace Bottom |
|
- | |||||
| 422 | WB2X7209 | Clip Door |
|
- | |||||
| 424 | WB2X3331 | Clamp Crystal |
|
- | |||||
| 425 | WB7X6923 | Trim Top Door |
|
- | |||||
| 456 | WZ04X0345 | Screw |
|
- | |||||
| 461 | WB1X593 | Screw Mtg Clip |
|
- | |||||
| 715 | WB1X5751 | Clip Canoe |
|
- | |||||
| 734 | WB2X7739 | Bracket |
|
- | |||||
| 737 | WB27X5408 | Power Supply Asm |
|
- | |||||
| 744 | WB18X5096 | Lead Wire |
|
- | |||||
| 745 | WB18X5097 | Lead Wire |
|
- | |||||
| 758 | WB2X7660 | Holder Probe |
|
- | |||||
| 770 | WB27X5371 | Thermostat |
|
- | |||||
| 782 | WB17X5060 | Terminal Blk Asm (2 Pin) |
|
- | |||||
| 797 | WB36X5604 | Crystal |
|
- | |||||
| 797 | WB36X5607 | Crystal Elect Oven |
|
- | |||||
| 798 | WB2X7737 | Bracket |
|
- | |||||
| 799 | WB2X7769 | Holder |
|
- | |||||
| 923 | WB7X6927 | Trim Control |
|
- | |||||
| 963 | WB2X7729 | Hinge Control Panel |
|
- | |||||
| 1201 | WS01A01150 | Screw (Replaces: WB1X5364) |
|
$ 3.97 | |||||
| 1229 | WB2X7632 | Hook Spacer |
|
- | |||||
| 1458 | WB17X5061 | Terminal Blk Asm (3 Pin) |
|
- | |||||
| 1458 | WB17X5062 | Terminal Blk Asm (12pin) |
|
- | |||||
| 1507 | WB48X5085 | Rack |
|
- | |||||
| 1615 | WB2X7768 | Spacer |
|
- | |||||
| 1643 | WB27X5409 | Transformer Elect Oven |
|
- | |||||
| 1648 | WB18X5095 | Wire Harness |
|
- | |||||
| 1651 | WB18X5099 | Wire Harness |
|
- | |||||
| 1654 | WB27X5403 | Key Panel Asm |
|
- | |||||
| 1655 | WB27X5400 | Smart Board & Display |
|
- | |||||
| 1810 | WB10X5176 | Key Door |
|
- | |||||
| 1811 | WB10X5177 | Key Door |
|
- | |||||
| 1816 | WB10X5178 | Key Door |
|
- | |||||
| 32767 | WB1X5573 | Washer |
|
- | |||||
| 32767 | WB26X5082 | Motor, Blower |
|
- | |||||
| 32767 | WG02A00927 | Nut (Replaces: WB1X5572) |
|
$ 67.26 | |||||
| 32767 | WB2X3152 | Pad |
|
- | |||||
| 32767 | WB26X5080 | Motor, Stirrer |
|
- | |||||
| 32767 | WB27X254 | Capacitor |
|
- | |||||
| 32767 | WZ04X0218 | Scr 6-20 Ab Ph 3/8 S |
|
- | |||||
| 32767 | 49-4706 | Cookbook |
|
- | |||||
| 32767 | WZ04X0397 | Scr 6-32 C Flr 5/16 S |
|
- | |||||
| 32767 | WB1X500 | Terminal Screw |
|
- | |||||
| 32767 | WB2X2115 | Insulation |
|
- | |||||
| 32767 | WZ05X0234 | Screw Mt Switch |
|
- | |||||
| 32767 | WB27X5400 | Smart Board & Display |
|
- | |||||
| 32767 | WB27X5333 | Rectifier |
|
- | |||||
| 32767 | WZ06X0038 | Scr 8-18 Ab Hxw 5/8 S |
|
- | |||||
| 32767 | WB20X5050 | Probe |
|
- | |||||
| 32767 | WZ05X0124 | Scr 4-40 D Hxw 5/8 S |
|
- | |||||
| 32767 | 10QBP0234 | Magnetron (Replaces: WB27X5410) |
|
$ 114.50 | |||||
| 32767 | 31-0425 | Install Instructions |
|
- | |||||
| 32767 | WZ04X0255 | Scr 8-18x1 Ab Ovr 1/2 S |
|
- | |||||
| 32767 | WB9X88 | Lockwasher |
|
- | |||||
| 32767 | WS01A02255 | Scr 8-18 B Ihw 3/8 S (Replaces: WB1X536) |
|
$ 3.97 | |||||
| 32767 | WB2X3191 | Gasket |
|
- | |||||
| 32767 | WG02F01561 | Switch, Door (Replaces: WB24X352) |
|
Immediately | $ 25.41 | ||||
| 32767 | WZ07X0035 | Nut Hex |
|
- | |||||
| 32767 | WB2X2116 | Insulation |
|
- | |||||
| 32767 | WZ04X0396 | Scr 10-16 B Hxw 1/4 S |
|
- | |||||
| 32767 | 31-0558 | Pm Manual Mini |
|
- | |||||
| 32767 | WZ04X0249 | Scr 8-18 Ab Ovr 3/4 S |
|
- | |||||
| 32767 | WB1X438 | Screw & Washer Asm |
|
- | |||||
| 32767 | WB1X448 | Washer |
|
- | |||||
| 32767 | WB24X353 | Switch, Monitor |
|
- | |||||
| 32767 | WZ04X0372 | Scr 6-20 Ab Hxw 3/8 S |
|
- | |||||
| 32767 | WZ04X0414 | Scr 8-18 Ab Ovr 1/2 S#6h |
|
- | |||||
| 32767 | WZ04X0345 | Screw |
|
- | |||||
| 32767 | WB27X5398 | Transformer, Hi-voltage |
|
- | |||||
| 32767 | 49-4792 | Manual Users |
|
- |
