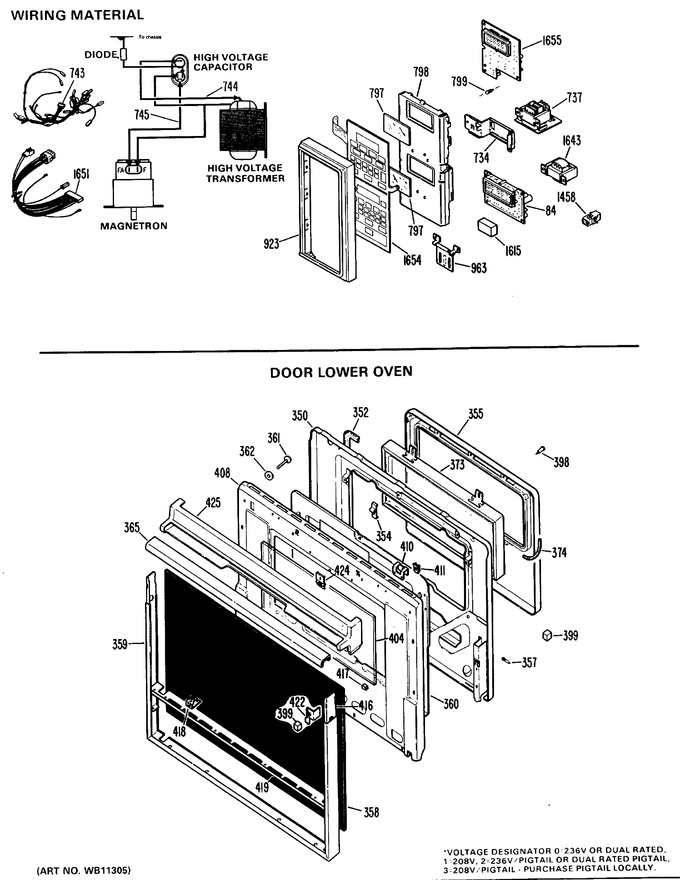

1 - Wiring Material
2 - Microwave Oven
3 - Lower Oven
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 84 | WB27X5465 | Smart Board Cntl Oven |
|
- | |||||
| 148 | WS01A01408 | Screw (Replaces: WB1X5716) |
|
$ 4.20 | |||||
| 265 | WB2X3303 | Guide Hinge Lever |
|
- | |||||
| 350 | WB2X3314 | Reflector Panel |
|
- | |||||
| 350 | WB55X5318 | Door Liner |
|
- | |||||
| 350 | WB2X3312 | Insulation Door |
|
- | |||||
| 352 | WB2X3138 | Gasket Door |
|
- | |||||
| 354 | WB9X154 | Strike Spring |
|
- | |||||
| 355 | WB55X5338 | Panel Inner |
|
- | |||||
| 355 | WB2X3313 | Insulation Door |
|
- | |||||
| 355 | WB2X2276 | Reflector Foil |
|
- | |||||
| 357 | WB1X558 | Screw |
|
- | |||||
| 358 | WB36X557 | Glass Black |
|
- | |||||
| 359 | WB7X1150 | Trim Frame-lower Door |
|
- | |||||
| 360 | WB49X354 | Guard Insulation |
|
- | |||||
| 361 | WZ04X0425 | Screw |
|
- | |||||
| 362 | WB1X119 | Washer Screw |
|
- | |||||
| 365 | WB15X154 | Grip Asm Handle |
|
- | |||||
| 373 | WB36X5495 | Window Pack |
|
- | |||||
| 374 | WB2X3048 | Gasket Window |
|
- | |||||
| 397 | WZ04X0384 | Screw Mtg End Cap |
|
- | |||||
| 398 | WB1X600 | Scr Shoulder |
|
- | |||||
| 399 | WB2X3285 | Pad Socket |
|
- | |||||
| 404 | WB36X5595 | Crystal Window |
|
- | |||||
| 408 | WB2X7208 | Reflector Panel |
|
- | |||||
| 408 | WB55X419 | Panel Middle Door |
|
- | |||||
| 410 | WB2X3310 | Bracket Panel |
|
- | |||||
| 411 | WB1X439 | Speednut Bracket |
|
- | |||||
| 412 | WB1X589 | Speednut Panel |
|
- | |||||
| 416 | WB2X3334 | Brace Side Rh |
|
- | |||||
| 416 | WB2X3335 | Brace Side Lh |
|
- | |||||
| 417 | WB2X3332 | Clip Crystal |
|
- | |||||
| 418 | WB2X3333 | Bracket Crystal |
|
- | |||||
| 419 | WB2X3336 | Brace Bottom |
|
- | |||||
| 422 | WB2X7209 | Clip Door |
|
- | |||||
| 424 | WB2X3331 | Clamp Crystal |
|
- | |||||
| 425 | WB7X6923 | Trim Top Door |
|
- | |||||
| 456 | WB0X6542 | Screw |
|
- | |||||
| 461 | WB1X593 | Screw Mtg Clip |
|
- | |||||
| 734 | WB2X7739 | Bracket |
|
- | |||||
| 737 | WB27X5408 | Power Supply Asm |
|
- | |||||
| 740 | WB2X7226 | Clip Wire |
|
- | |||||
| 743 | WB18X5095 | Wire Harness |
|
- | |||||
| 744 | WB18X5096 | Lead Wire |
|
- | |||||
| 745 | WB18X5097 | Lead Wire |
|
- | |||||
| 757 | WB2X7734 | Cushion |
|
- | |||||
| 782 | WB17X5060 | Terminal Blk Asm (2 Pin) |
|
- | |||||
| 797 | WB36X5607 | Crystal Elect Oven |
|
- | |||||
| 797 | WB36X5604 | Crystal |
|
- | |||||
| 798 | WB2X7737 | Bracket |
|
- | |||||
| 799 | WB2X7769 | Holder |
|
- | |||||
| 923 | WB7X6927 | Trim Control |
|
- | |||||
| 963 | WB2X7729 | Hinge Control Panel |
|
- | |||||
| 1201 | WS01A01150 | Screw (Replaces: WB1X5364) |
|
$ 3.97 | |||||
| 1458 | WB17X5062 | Terminal Blk Asm (12pin) |
|
- | |||||
| 1485 | WB2X7730 | Shield Lamp |
|
- | |||||
| 1514 | WB2X7510 | Spacer Rack |
|
- | |||||
| 1615 | WB2X7768 | Spacer |
|
- | |||||
| 1643 | WB27X5409 | Tansformer Elect Oven |
|
- | |||||
| 1651 | WB18X5138 | Wire Harness |
|
- | |||||
| 1654 | WB27X5474 | Key Panel Asm |
|
- | |||||
| 1655 | WB27X5400 | Smart Board & Display |
|
- | |||||
| 2006 | WB2X2104 | Spacer |
|
- | |||||
| 32767 | 49-4706 | Cookbook |
|
- | |||||
| 32767 | 49-4792 | Manual Users |
|
- | |||||
| 32767 | 31-0425 | Install Instructions |
|
- |
