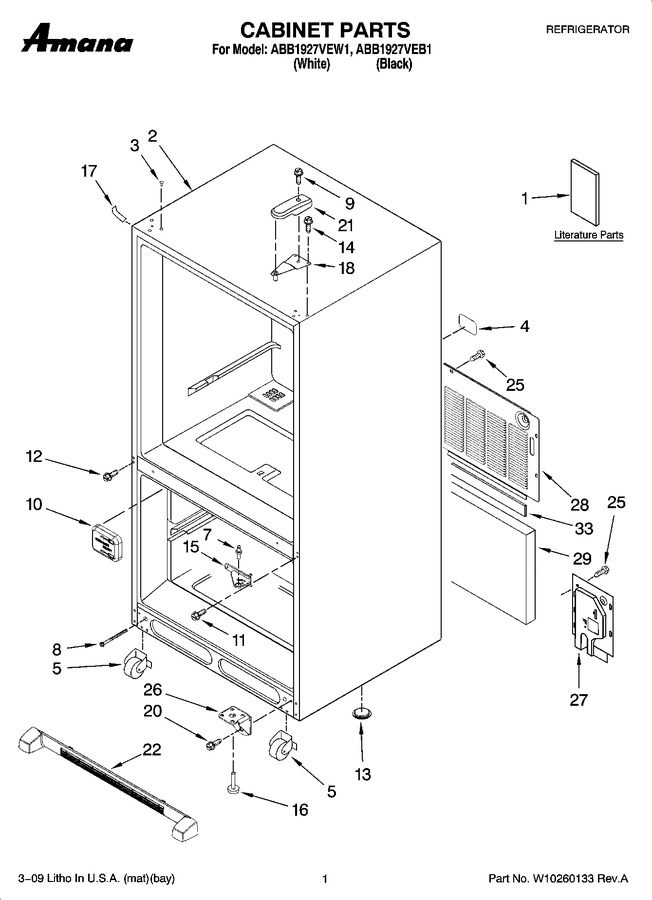

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10208785 | Owners Manual |
|
- | |||||
| 1 | W10238840 | Tech Sheet |
|
- | |||||
| 1 | W10205984 | Energy Tag |
|
- | |||||
| 3 | WP67001130 | Plug, Button (3) White (Replaces: M0310729) |
|
Immediately | $ 5.98 | ||||
| 3 | WP12246608 | Plug, Button (3) (black) (Replaces: M0310731) |
|
Immediately | $ 8.15 | ||||
| 4 | W11685757 | Label, Fill Tube (Replaces: 12249902) |
|
$ 7.41 | |||||
| 5 | 12580304 | Roller Assembly |
|
$ 5.84 | |||||
| 7 | WP67006642 | Pin, Center Hinge (Replaces: 10351006) |
|
$ 8.78 | |||||
| 8 | 71003131 | Bolt, Adjusting (rear) (Replaces: 12606103) |
|
Immediately | $ 7.08 | ||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.55 | ||||
| 10 | WP67001098 | Cover-fill Tube (Replaces: 12477501) |
|
$ 8.43 | |||||
| 11 | W11573362 | Screw (Replaces: 12992201) |
|
$ 14.72 | |||||
| 12 | WP98165 | Screw (8) (Replaces: 12990521) |
|
$ 8.57 | |||||
| 13 | A3076901 | Plug-button |
|
$ 5.70 | |||||
| 14 | WP489349 | Screw (3) (Replaces: 12992403) |
|
Immediately | $ 8.43 | ||||
| 15 | WP12607104ED | Hinge, Center (black) (Replaces: 12607103ED) |
|
$ 167.35 | |||||
| 15 | W11689473 | Hinge, Center White (Replaces: 12607103WD) |
|
$ 69.79 | |||||
| 16 | 10354002 | Foot Brake (2) |
|
Immediately | $ 7.38 | ||||
| 17 | 67003485 | Cover, Corner (black ) (Replaces: 12587703B) |
|
Immediately | $ 22.14 | ||||
| 17 | 12587703W | Cover, Corner White |
|
$ 22.90 | |||||
| 18 | WP12566606ED | Hinge, Top (Replaces: 12566606ED) |
|
Immediately | $ 47.13 | ||||
| 20 | 67006564 | Screw (8) (Replaces: 12991302) |
|
Immediately | $ 8.15 | ||||
| 21 | 67001014 | Cover, Hinge White (Replaces: 12477601W) |
|
$ 22.34 | |||||
| 21 | 67001012 | Cover, Hinge (black) (Replaces: 12477601B) |
|
$ 49.71 | |||||
| 22 | WPW10534166 | Grille Assembly (includes Clips) (white) (Replaces: W10236649) |
|
Immediately | $ 76.61 | ||||
| 22 | WPW10534167 | Grille Assembly (includes Clips) (black) (Replaces: W10236650) |
|
$ 91.42 | |||||
| 25 | 67006425 | Screw (9) (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 26 | 12906303WD | Bracket, Foot |
|
$ 88.58 | |||||
| 27 | W11684617 | Cover, Water Valve (Replaces: W10217701) |
|
$ 21.36 | |||||
| 28 | W10210978 | Cover, Unit |
|
$ 201.78 | |||||
| 29 | 12820505 | Insulation, Sound |
|
$ 71.70 | |||||
| 33 | B5759655 | Gasket |
|
$ 13.03 |
