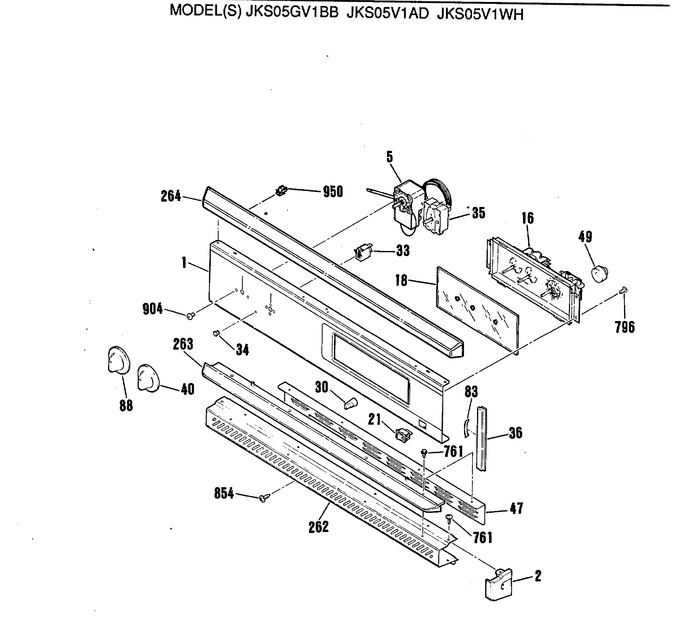

SELECT A DIAGRAM

1 - Component Group


2 - Component Group


3 - Component Group


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB36K5572		Control Panel		Appelez-nous	-
2	WB36K5102		Vent Trim End Cap-rt-blk		Appelez-nous	-
2	WB36K5101		Vent Trim End Cap-lt-blk		Appelez-nous	-
5	WB20K5011		Thermostat		Appelez-nous	-
16	WB11K5005		Clock		Appelez-nous	-
18	WB57K5045		Clock Glass		Appelez-nous	-
21	WB24K5035		Rocker Switch		Appelez-nous	-
30	WB3X5814		Knob		Appelez-nous	-
33	WB25X92		Indicator Light-top Elem		Appelez-nous	-
34	WB25X94		Indicator Light Lens		Appelez-nous	-
35	WB22X5134		Switch, Oven   (Replaces: WB22X5022)		Appelez-nous	-
36	WB7K5185		Trim Cntl Pnl End-rt-blk		Appelez-nous	-
36	WB7K5184		Trim Cntl Pnl End-lt-blk		Appelez-nous	-
40	WB3K5254		Selector Switch Knob-blk		Appelez-nous	-
47	WB38K5029		Vent Barrier		Appelez-nous	-
49	WB11X8		Motor-clock		Appelez-nous	-
83	WB9K5008		End Trim Spring		Appelez-nous	-
88	WB3K5253		Thermostat Knob-blk		Appelez-nous	-
262	WB7K5270		Vertical Side Trm-lt-blk		Appelez-nous	-
262	WB7K5271		Vertical Side Trm-rt-blk		Appelez-nous	-
262	WB7K5101		Vent Trim		Appelez-nous	-
263	WB7K5378		I-brow Trim-blk		Appelez-nous	-
264	WB7K5272		Control Panel Top Trim		Appelez-nous	-
761	WB1K5029		Screw-black		Appelez-nous	-
796	WB1K5116		Screw		Appelez-nous	-
854	WB1X1328		Screw-black		Appelez-nous	-
904	WB1X521		Scr 8/32 Tf Flr 5/16 S		Appelez-nous	-
950	WB1K5135		Cable Clip		Appelez-nous	-
999	31-10119		Installation Instruciton		Appelez-nous	-
999	WB18K5477		Main Wire Harness		Appelez-nous	-
999	31-13159		Mini Manual W/wire Diag.		Appelez-nous	-
999	49-8600		Use & Care Manual		Appelez-nous	-
999	WB18K5103		Thermostat Wire Harness		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
