SELECT A DIAGRAM

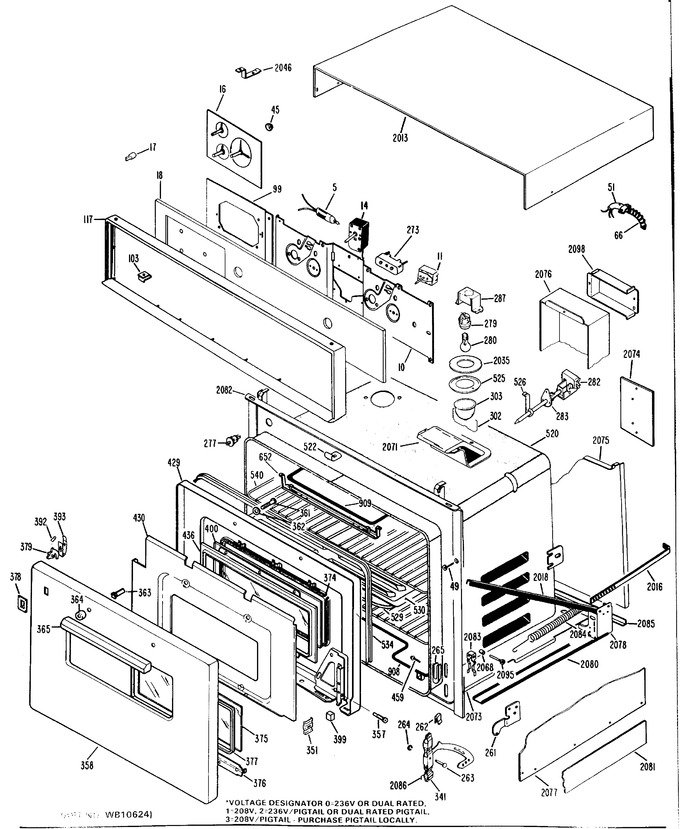

1 - Component Group
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | WB2X1608 | Neon Lamp 118v |
|
$ 31.65 | |||||
| 10 | WB1X5220 | Nut Mtg Instrument Brkts |
|
- | |||||
| 10 | WB2X1632 | Bracket Instrument |
|
- | |||||
| 11 | WB22X5134 | Switch, Oven (Replaces: WB22X5022) |
|
- | |||||
| 12 | WB3X5684 | Knob Oven Switch |
|
- | |||||
| 14 | WB2X1394 | Sleeve |
|
- | |||||
| 14 | WB21X5208 | Thermostat |
|
- | |||||
| 15 | WB3X5685 | Knob Thermostat |
|
- | |||||
| 16 | WB19X128 | Timer |
|
- | |||||
| 17 | WB3X5699 | "timer-knob" |
|
- | |||||
| 18 | WB36X531 | Crystal |
|
- | |||||
| 45 | WB1X540 | Nut |
|
- | |||||
| 51 | WB2X1458 | Clamp Conduit |
|
- | |||||
| 99 | WB2X1392 | Bracket Timer |
|
- | |||||
| 103 | WB2X1119 | Speednut |
|
- | |||||
| 117 | WB7X1121 | Trim Control |
|
- | |||||
| 261 | WB10X154 | Support Hinge Rh |
|
- | |||||
| 261 | WB10X155 | Support Hinge Lh |
|
- | |||||
| 263 | WG02A00596 | Pin Hinge (Replaces: WB2X6195) |
|
$ 4.20 | |||||
| 264 | WB2X1082 | Pin Hinge Retainer |
|
- | |||||
| 265 | WB2X1460 | Guide Lever Lower Oven |
|
- | |||||
| 273 | WB17X167 | Block Term Distribution |
|
- | |||||
| 277 | WB24X105 | Switch, Oven Light |
|
- | |||||
| 279 | WB8X191 | Receptacle |
|
- | |||||
| 280 | WX12X1510 | Lamp 40w Appliance |
|
- | |||||
| 282 | WB24X5226 | Switch, Thermal |
|
- | |||||
| 283 | WB2X3164 | Plate |
|
- | |||||
| 283 | WB2X3163 | Gasket |
|
$ 22.50 | |||||
| 287 | WB2X3447 | Bracket Support |
|
- | |||||
| 302 | WB2X2885 | Bail |
|
- | |||||
| 303 | WG02F04576 | Glass Oven Lamp (Replaces: WB36X389) |
|
$ 20.65 | |||||
| 341 | WB10X151 | Hinge Lever Rh & Lh |
|
- | |||||
| 351 | WB2X6270 | Spacer Door |
|
- | |||||
| 357 | WB1X558 | Screw |
|
- | |||||
| 358 | WB56X1356 | Door Panel Wh |
|
- | |||||
| 358 | WB56X1359 | Door Panel Ha |
|
- | |||||
| 358 | WB56X1360 | Door Panel Ad |
|
- | |||||
| 361 | WZ04X0423 | Screw Mtg Handle |
|
- | |||||
| 362 | WB1X119 | Washer Screw |
|
- | |||||
| 363 | WB2X6204 | Spacer Panel |
|
- | |||||
| 364 | WB2X1404 | Spacer |
|
- | |||||
| 365 | WB15X94 | Handle |
|
- | |||||
| 374 | WB2X3048 | Gasket Window |
|
- | |||||
| 375 | WB36X430 | Crystal Window |
|
- | |||||
| 376 | WB2X3282 | Clip Crystal |
|
- | |||||
| 377 | WB7X1031 | Trim Crystal |
|
- | |||||
| 378 | WB7X5022 | Trim Plate Lower Oven |
|
- | |||||
| 379 | WB2X5410 | Cam |
|
- | |||||
| 392 | WB2X5217 | Cam Link |
|
- | |||||
| 393 | WB9X5083 | Cam Spring |
|
- | |||||
| 399 | WB2X3285 | Pad Socket |
|
- | |||||
| 400 | WB36X526 | Crystal Window |
|
$ 140.86 | |||||
| 429 | WB2X3283 | Insulation Door |
|
- | |||||
| 429 | WB55X5297 | Door Liner |
|
- | |||||
| 430 | WB55X403 | Guard Insulation |
|
- | |||||
| 436 | WB2X3284 | Frame Window |
|
- | |||||
| 459 | WB1X537 | Screw |
|
- | |||||
| 520 | WB53X5117 | Oven Liner |
|
- | |||||
| 520 | WB2X3417 | Insulation |
|
- | |||||
| 520 | WB2X3471 | Clip Capillary Tubeoven |
|
- | |||||
| 522 | WB2X3393 | Trim Clip |
|
- | |||||
| 525 | WB2X3448 | Trim Lamp |
|
- | |||||
| 526 | WB2X3165 | Hanger |
|
- | |||||
| 529 | WB49X5380 | Broil Pan |
|
- | |||||
| 530 | WB48X5002 | Broiler Pan Rack |
|
- | |||||
| 534 | WB2X2058 | Gasket Silicone |
|
- | |||||
| 540 | WB48X73 | Rack Oven |
|
- | |||||
| 652 | WB2X1452 | Support Broil |
|
- | |||||
| 908 | WB44X192 | Bake Unit 208/240v |
|
- | |||||
| 909 | UT316 | Broil Unit 208/240v (Replaces: WB44X180) |
|
Immediately | $ 49.95 | ||||
| 1201 | WB1X575 | Screw Mtg Case Top |
|
- | |||||
| 2013 | WB59X168 | Case Top |
|
- | |||||
| 2016 | WB2X3289 | Link Door Spring |
|
- | |||||
| 2018 | WB2X2401 | Channel Side |
|
- | |||||
| 2035 | WB2X7186 | Gasket Oven Lamp |
|
- | |||||
| 2046 | WB2X1457 | Bracket Trim |
|
- | |||||
| 2068 | WB2X1462 | Roller |
|
- | |||||
| 2071 | WB38X61 | Gasket Vent |
|
- | |||||
| 2071 | WB38X62 | Vent Asm |
|
- | |||||
| 2073 | WB59X69 | Guard Bottom |
|
- | |||||
| 2074 | WB59X137 | Cover |
|
- | |||||
| 2075 | WB59X5023 | Guard |
|
- | |||||
| 2076 | WB59X5021 | Guard Terminal |
|
- | |||||
| 2077 | WB59X105 | Guard Side |
|
- | |||||
| 2078 | WB59X108 | Gusset |
|
- | |||||
| 2080 | WB59X107 | Channel Bottom |
|
- | |||||
| 2081 | WB59X106 | Cover Side |
|
- | |||||
| 2082 | WB56X1326 | Frame |
|
- | |||||
| 2083 | WB2X1461 | Spring Hinge Lever |
|
- | |||||
| 2084 | WB9X151 | Spring Door |
|
- | |||||
| 2085 | WB59X71 | Angle Rear |
|
- | |||||
| 2086 | WB9X150 | Spring Stop |
|
- | |||||
| 2095 | WB1X352 | Screw |
|
- | |||||
| 2098 | WB59X5022 | Guard |
|
- | |||||
| 32767 | WZ10X0016 | Washer |
|
- | |||||
| 32767 | WB56X5986 | Door Panel Sl |
|
- | |||||
| 32767 | WS01A02255 | Scr 8-18 Ba Ihw 3/8 S (Replaces: WB1X536) |
|
$ 3.97 | |||||
| 32767 | WB1X500 | Terminal Screw |
|
- | |||||
| 32767 | WB1X547 | Scr 8-18 Ba Ihw 13/16 S |
|
- | |||||
| 32767 | WB56X5985 | Door Panel Ds |
|
- | |||||
| 32767 | 31-0522 | Pm Manual Mini |
|
- | |||||
| 32767 | WZ04X0394 | Screw |
|
- | |||||
| 32767 | WZ04X0218 | Scr 6-20 Ab Ph 3/8 S |
|
- | |||||
| 32767 | WB1X5550 | Scr 8/32 Tf Flr 1/4 S |
|
- | |||||
| 32767 | WZ04X0228 | Scr 8-18 B Rdr 3/16 S |
|
- | |||||
| 32767 | WZ04X0252 | Scr 8-18 B Hxw 7/8 S |
|
- | |||||
| 32767 | WZ04X0255 | Scr 8-18x1 Ab Ovr 1/2 S |
|
- | |||||
| 32767 | WB1X448 | Washer |
|
- | |||||
| 32767 | WZ04X0288 | Scr 10-16 Ab Hxw 1/2s #8 |
|
- | |||||
| 32767 | WZ04X0345 | Screw |
|
- | |||||
| 32767 | WZ05X0134 | Scr 8-32 T Hxw 3/8 S |
|
- | |||||
| 32767 | WZ04X0372 | Scr 6-20 Ab Hxw 3/8 S |
|
- | |||||
| 32767 | 49-4718 | Manual Users |
|
- | |||||
| 32767 | WZ07X0029 | Nut |
|
- | |||||
| 32767 | 31-0409 | Install Instructions |
|
- |
