1 - Upper Oven Parts

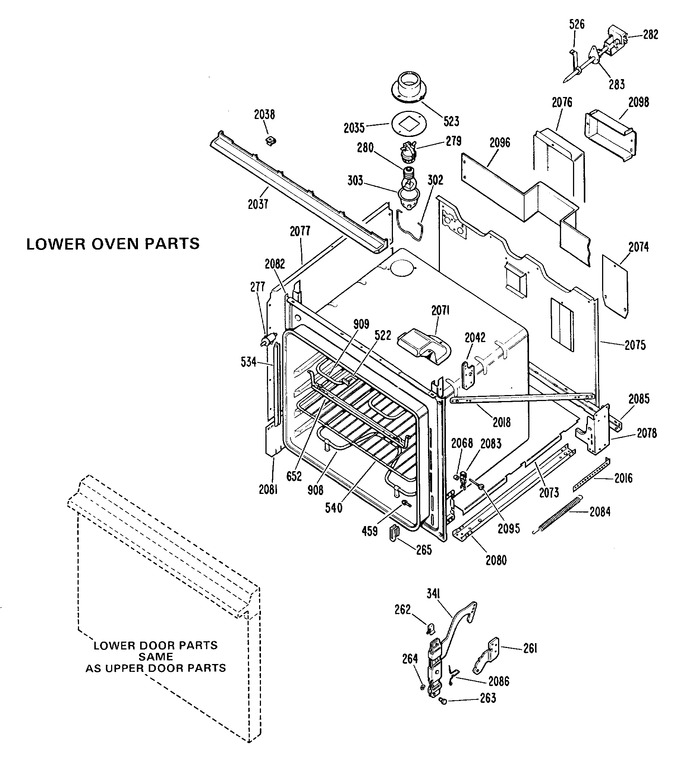

2 - Lower Oven Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 261 | WB10X154 | Support Hinge Rh |
|
- | |||||
| 261 | WB10X155 | Support Hinge Lh |
|
- | |||||
| 263 | WG02A00596 | Pin Hinge (Replaces: WB2X6195) |
|
$ 4.20 | |||||
| 264 | WB2X1082 | Pin Hinge Retainer |
|
- | |||||
| 265 | WB2X1460 | Guide Lever Lower Oven |
|
- | |||||
| 277 | WB24X105 | Switch, Oven Light |
|
- | |||||
| 279 | WB8X5095 | Receptacle |
|
- | |||||
| 280 | WX12X1510 | Lamp 40w Appliance |
|
- | |||||
| 282 | WB24X5226 | Switch, Thermal |
|
- | |||||
| 283 | WB2X3163 | Gasket |
|
$ 22.50 | |||||
| 283 | WB2X3164 | Plate |
|
- | |||||
| 302 | WB2X7694 | Bail |
|
- | |||||
| 303 | WG02F04576 | Glass Oven Lamp (Replaces: WB36X389) |
|
$ 20.65 | |||||
| 341 | WB10X151 | Hinge Lever Rh & Lh |
|
- | |||||
| 459 | WB1X537 | Screw |
|
- | |||||
| 522 | WB2X3393 | Trim Clip |
|
- | |||||
| 523 | WB2X7693 | Housing Receptacle |
|
- | |||||
| 526 | WB2X3165 | Hanger |
|
- | |||||
| 534 | WB2X2058 | Gasket Silicone |
|
- | |||||
| 540 | WB48X73 | Rack Oven |
|
- | |||||
| 652 | WB2X1452 | Support Broil |
|
- | |||||
| 908 | WB44X192 | Bake Unit 208/240v |
|
- | |||||
| 909 | UT316 | Broil Unit 208/240v (Replaces: WB44X180) |
|
Immediately | $ 49.95 | ||||
| 2016 | WB2X3289 | Link Door Spring |
|
- | |||||
| 2018 | WB2X2401 | Channel Side |
|
- | |||||
| 2035 | WB2X7186 | Gasket Oven Lamp |
|
- | |||||
| 2037 | WB7X1148 | Trim Middle |
|
- | |||||
| 2038 | WB2X3298 | Speednut |
|
- | |||||
| 2042 | WB2X3302 | Support Double Oven |
|
- | |||||
| 2068 | WB2X1462 | Roller |
|
- | |||||
| 2071 | WB38X61 | Gasket Vent |
|
- | |||||
| 2071 | WB38X62 | Vent Asm |
|
- | |||||
| 2073 | WB59X69 | Guard Bottom |
|
- | |||||
| 2073 | WB59X154 | Guard Insulation |
|
- | |||||
| 2074 | WB59X137 | Cover |
|
- | |||||
| 2075 | WB59X5023 | Guard |
|
- | |||||
| 2076 | WB59X5025 | Guard Terminal |
|
- | |||||
| 2077 | WB59X105 | Guard Side |
|
- | |||||
| 2078 | WB59X108 | Gusset |
|
- | |||||
| 2080 | WB59X107 | Channel Bottom |
|
- | |||||
| 2081 | WB59X106 | Cover Side |
|
- | |||||
| 2082 | WB56X1326 | Frame |
|
- | |||||
| 2083 | WB2X1461 | Spring Hinge Lever |
|
- | |||||
| 2084 | WB9X151 | Spring Door |
|
- | |||||
| 2085 | WB59X71 | Angle Rear |
|
- | |||||
| 2086 | WB9X150 | Spring Stop |
|
- | |||||
| 2095 | WB1X352 | Screw |
|
- | |||||
| 2096 | WB59X65 | Strip Filler Rear |
|
- | |||||
| 2098 | WB59X5022 | Guard |
|
- |
