Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WB62X1454 Cooktop Wh Appelez-nous -
1 WB62X1457 Cooktop Ha Appelez-nous -
1 WB62X1458 Cooktop Ad Appelez-nous -
11 WB22X5140 Switch, Oven Appelez-nous -
11 WB2X3434 Barrier Switch Oven Appelez-nous -
12 WB3X284 Knob Oven Switch Appelez-nous -
13 WB2X5545 Bracket Thermostat Appelez-nous -
14 WB21X5320 Thermostat, Dual   (Replaces: WB24X176) Appelez-nous -
14 WB2X3179 Sleeve (long) Appelez-nous -
14 WB2X6937 Sleeve Appelez-nous -
15 WB3X400 Knob Thermostat Appelez-nous -
22 WB7X1139 Trim & Deflector Appelez-nous -
51 WB2X3061 Clamp Conduit Appelez-nous -
51 WB2X1409 Sleeve Conduit Appelez-nous -
58 WB1X194 Thumb Screw Appelez-nous -
66 OBT LOCAL Flexible Conduit 1/2"x38 Appelez-nous -
107 WB7X558 End Cap Appelez-nous -
123 WB2X2100 Pad End Cap Appelez-nous -
125 WB7X559 Trim Top Appelez-nous -
126 WB1X186 Nut Tee Appelez-nous -
127 WB1X187 Speednut Appelez-nous -
129 WB7X6924 Trim & Insert Asm Appelez-nous -
130 WB2X2092 Bracket Switch Oven Appelez-nous -
132 WB2X3344 Gasket Appelez-nous -
133 WB2X3345 Barrier Appelez-nous -
150 WB30X359 Surface Unit, 6" Appelez-nous -
151 WB32X52 Center Trim 6" Unit Appelez-nous -
152 WB2X1351 Term Block Double Coil Appelez-nous -
152 WB2X2398 Term Block Single Coil Appelez-nous -
153 WB2X574 Clip Insulator Appelez-nous -
154 WB32X36 Unit Pan 6" Appelez-nous -
155 WB31X5013 Trim Ring 6" Appelez-nous -
156 WB30X348 Surface Unit, 8" Appelez-nous -
157 WB32X51 Center Trim 8" Unit Appelez-nous -
158 WB32X5013 Unit Pan 8" Appelez-nous -
164 WB31X5014 Trim Ring 8" In-Stock Immediately $ 13.55

177 WB2X995 Clip Lead Appelez-nous -
248 WB1X500 Terminal Screw Appelez-nous -
254 WB38X76 Vent Asm Appelez-nous -
260 WB10X158 Hinge Lever Rh & Lh Appelez-nous -
261 WB10X155 Support Hinge Lh Appelez-nous -
261 WB10X154 Support Hinge Rh Appelez-nous -
263 WG02A00596 Pin Hinge   (Replaces: WB2X6195) Special Order $ 4.20

264 WB2X1082 Pin Hinge Retainer Appelez-nous -
265 WB2X3303 Guide Hinge Lever Appelez-nous -
267 WB9X156 Spring Door Appelez-nous -
271 WB2X818 Cover Vent Appelez-nous -
277 WB24X105 Switch, Oven Light Appelez-nous -
279 WB8X5095 Receptacle Appelez-nous -
280 WX12X1510 Lamp 40w Appliance Appelez-nous -
282 WB24X5164 Switch, Thermal Appelez-nous -
283 WB2X3163 Gasket Special Order $ 22.50

283 WB2X3164 Plate Appelez-nous -
290 WB24X199 Switch Thermal Fan Appelez-nous -
302 WB2X7694 Bail Appelez-nous -
303 WG02F04576 Glass Oven Lamp   (Replaces: WB36X389) Special Order $ 20.65

313 WB26X5052 Motor, Fan Appelez-nous -
314 WB2X2285 Blade Fan Appelez-nous -
520 WB2X1132 Clip Cap Tube Upper Oven Appelez-nous -
520 WB2X2116 Insulation Appelez-nous -
520 WB2X3471 Clip Capillary Tube Oven Appelez-nous -
520 WB53X5124 Oven Liner Appelez-nous -
520 WB2X1125 Plug Button Cap Tube Appelez-nous -
521 WB9X88 Hook Package Appelez-nous -
522 WB2X3393 Trim Clip Appelez-nous -
523 WB2X7693 Housing Receptacle Appelez-nous -
526 WB2X3165 Hanger Appelez-nous -
528 WB48X82 Rack Oven Appelez-nous -
529 WB49X5380 Broil Pan Appelez-nous -
530 WB48X5002 Broiler Pan Rack Appelez-nous -
650 UB323 Bake Unit 208/240v   (Replaces: WB44X200) In-Stock Immediately $ 41.80

651 UT316 Broil Unit 208/240v   (Replaces: WB44X185) In-Stock Immediately $ 49.95

652 WB2X1452 Support Broil Appelez-nous -
700 WB14X5036 Latch Appelez-nous -
701 WB15X97 Handle Latch Appelez-nous -
702 WB3X5681 Knob Latch Appelez-nous -
703 WG02A00753 Retainer Knob   (Replaces: WB2X2030) Special Order $ 4.20

704 WB2X7717 Channel Latch Appelez-nous -
705 WB2X7718 Channel Locking Appelez-nous -
706 WB2X7708 Pawl Locking Appelez-nous -
707 WB2X7716 Plate Mounting Appelez-nous -
708 WB24X183 Switch, Latch Appelez-nous -
709 WB24X197 Solenoid Appelez-nous -
710 WB9X148 Spring Appelez-nous -
711 WB2X6212 Pivot Stud Appelez-nous -
712 WB2X1800 Retainer Ring Appelez-nous -
731 WB2X7719 Bracket Switch Appelez-nous -
732 WB24X5238 Switch Appelez-nous -
829 WB2X190 Clip Spring Appelez-nous -
1645 WB2X7006 Clamp Harness Appelez-nous -
2002 WB56X6066 Frame Front Appelez-nous -
2007 WB7X7014 Grill Appelez-nous -
2008 WB2X3230 Cover Roto & Meat Meter Appelez-nous -
2011 WB2X3425 Support Trim Appelez-nous -
2016 WB2X3289 Link Door Spring Appelez-nous -
2017 WB2X2861 Gusset Appelez-nous -
2018 WB2X2401 Channel Side Appelez-nous -
2021 WB59X164 Side Inner Appelez-nous -
2022 WB59X163 Channel Bottom Appelez-nous -
2023 WB55X302 Guard Bottom Appelez-nous -
2024 WB49X327 Back Asm Appelez-nous -
2025 WB2X2845 Cover Light Appelez-nous -
2026 WB2X2842 Plate Adapter Appelez-nous -
2027 WB2X3156 Guard Asm Appelez-nous -
2028 WB49X268 Guard Terminal Appelez-nous -
2029 WB49X223 Cap Terminal Guard Appelez-nous -
2030 WB7X1136 Cap Bottom Lh Appelez-nous -
2030 WB7X1156 Cap Bottom Rh Appelez-nous -
2030 WB7X1134 Trim Side Rh Appelez-nous -
2030 WB7X1135 Trim Side Lh Appelez-nous -
2030 WB7X1137 Cap Top Appelez-nous -
2032 WB49X267 Partition Fan Appelez-nous -
2033 WB49X382 Extension Side Appelez-nous -
2040 WB2X3305 Sleeve Roller Appelez-nous -
2043 WB2X3423 Gusset Appelez-nous -
2047 WB2X2846 Bracket Fan Appelez-nous -
2049 WB7X1133 Trim Filler Lh Appelez-nous -
2049 WB7X1132 Trim Filler Rh Appelez-nous -
2052 WB49X269 Guard Fan Appelez-nous -
2053 WB2X3267 Barrier Instrument Appelez-nous -
2054 WB55X409 Insulation Guard Top Appelez-nous -
2055 WB2X1448 Cover Appelez-nous -
2056 WB49X360 Guard Wire Appelez-nous -
2067 WB1X524 Screw Appelez-nous -
2072 WB49X5385 Channel Air Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

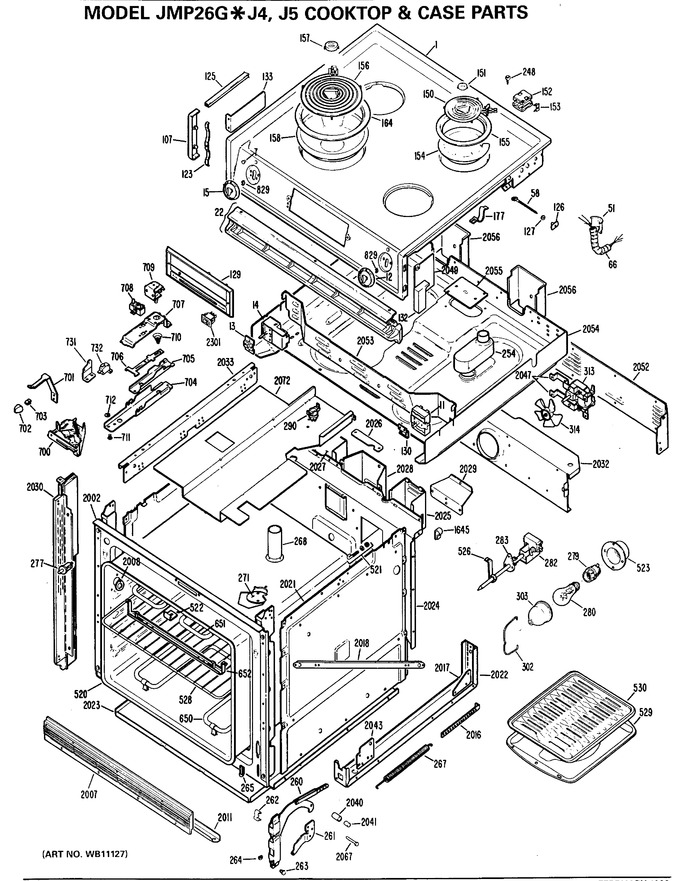

Diagram for JMP26G*J5
