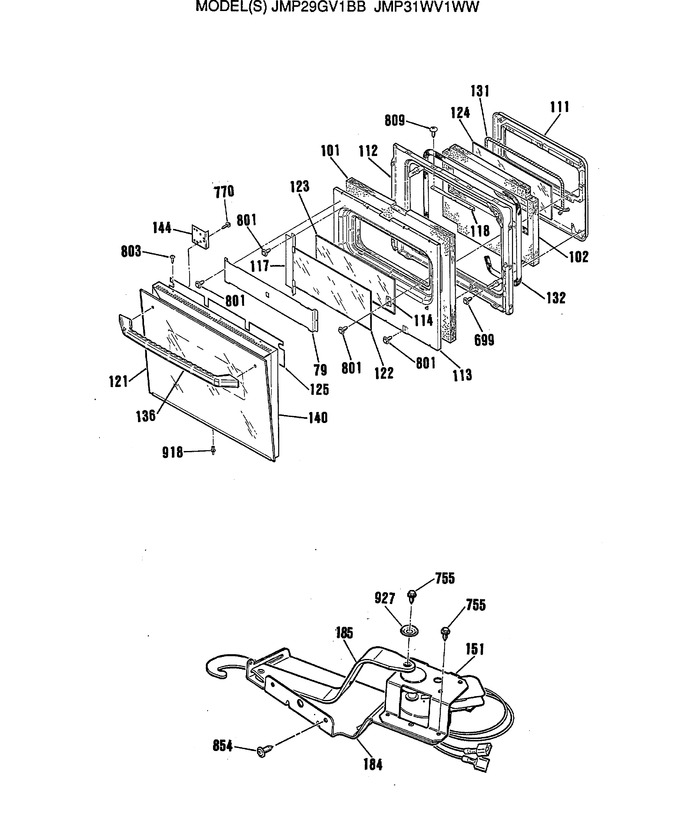

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
79	WB34K5077		Ov Dr Baffle		Appelez-nous	-
101	WB35K5039		Ov Door Insulation		Appelez-nous	-
102	WB35K5050		Door Plug Insulation		Appelez-nous	-
111	WB55K5018		Ov Dr Lining Plug		Appelez-nous	-
112	WB55K5017		Ov Dr Lining Asm		Appelez-nous	-
113	WB2K5127		Ov Dr Ins Retainer		Appelez-nous	-
114	WB2M1		Ov Dr Glass Retainer		Appelez-nous	-
117	WB2K5131		Ov Dr Glass Retainer		Appelez-nous	-
118	WB2K5132		Ov Dr Lining Stiffener		Appelez-nous	-
121	WB57K5220		Oven Door Glass-blk		Appelez-nous	-
122	WB57K5102		Ov Dr Intermediate Glass		Appelez-nous	-
123	WB57K5038		Ov Dr Inner Glass-lower		Appelez-nous	-
124	WB57K5063		Ov Dr Inner Glass		Appelez-nous	-
125	WB34K5201		Heat Reflector		Appelez-nous	-
131	WB2X9168		Inner Glass Seal		Appelez-nous	-
132	WB32K5038		Oven Door Gasket		Appelez-nous	-
136	WB15K5070		Oven Door Handle-blk		Appelez-nous	-
140	WB56K5112		Oven Door Frame		Appelez-nous	-
144	WB2K5316		Reinforcement Plate		Appelez-nous	-
151	WG02F05623		Lock Motor   (Replaces: WB26K5030)				$ 151.67
184	WB34K5079		Door Lock Plate		Appelez-nous	-
185	WB15K5016		Lock Lever Asm		Appelez-nous	-
699	WB1K5150		Screw		Appelez-nous	-
755	WZ04X0044		Screw		Appelez-nous	-
770	WB1K5072		Screw		Appelez-nous	-
801	WB1M1		Screw		Appelez-nous	-
803	WB1X1176		Screw-black		Appelez-nous	-
809	WG02A00781		Screw   (Replaces: WB1X1137)				$ 14.29
854	WB1X1164		Screw-brt. Ni.		Appelez-nous	-
854	WB1X1328		Screw-black		Appelez-nous	-
918	WB1K5071		Plastic Rivet		Appelez-nous	-
927	WB1X1254		Washer		Appelez-nous	-
