1 - Control Panel & Cooktop

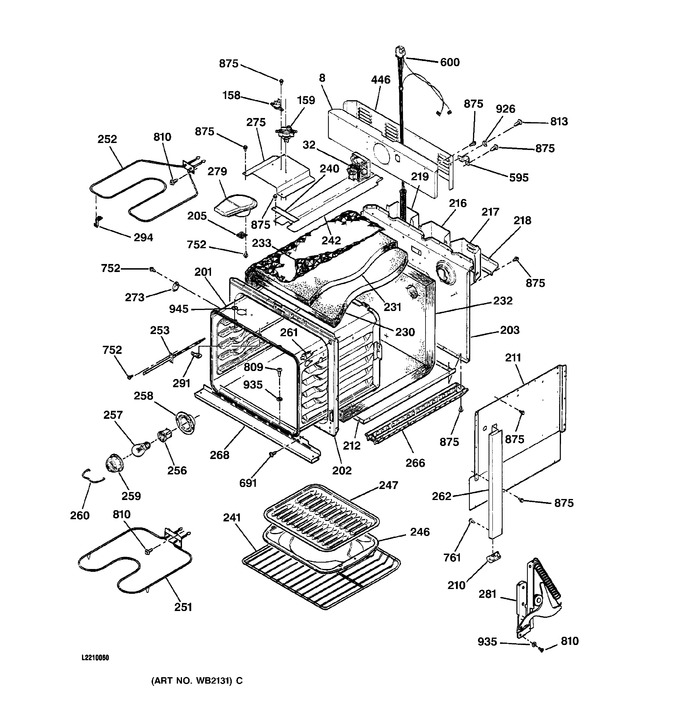

2 - Body Parts
3 - Oven Door
4 - Door Lock
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 8 | WB2K5137 | Fan Support |
|
- | |||||
| 32 | WB26K5072 | Fan |
|
- | |||||
| 158 | WB24K5033 | Limit Switch |
|
- | |||||
| 159 | WB24K5049 | Limit Switch |
|
- | |||||
| 201 | WB63T10009 | Oven Body |
|
- | |||||
| 202 | WB63T10036 | Frame Frt |
|
- | |||||
| 203 | WB63K5167 | Main Back |
|
- | |||||
| 205 | WB6K5026 | Smoke Elim Screen |
|
- | |||||
| 210 | WB7K5177 | Lo Trim End Cap-white |
|
- | |||||
| 211 | WB63T10043 | Cabinet Side |
|
- | |||||
| 212 | WB63K5080 | Cabinet Bottom |
|
- | |||||
| 216 | WB34K5069 | Wire Cover-element |
|
- | |||||
| 218 | WB34K5067 | Wire Cover Bottom |
|
- | |||||
| 219 | WB34K5082 | Wire Cover-conduit |
|
- | |||||
| 230 | WB35K5048 | Insulation-inner-upper |
|
- | |||||
| 231 | WB35K5068 | Insulation-outer |
|
- | |||||
| 232 | WB35K5089 | Insulation Back/btm |
|
- | |||||
| 233 | WB34K5080 | Heat Reflector |
|
- | |||||
| 240 | WB34K5138 | Barrier Frt Frame Latch |
|
- | |||||
| 241 | WG02L02645 | Oven Rack (Replaces: WB48K5006) |
|
$ 80.53 | |||||
| 242 | WB38K5041 | Air Channel |
|
- | |||||
| 246 | WB48T10006 | Broil Pan (261d656p010) |
|
- | |||||
| 247 | WB48T10005 | Bro Pan Grid |
|
- | |||||
| 251 | WB44K5013 | Bake Element |
|
$ 113.30 | |||||
| 252 | WG02F05475 | Broil Element (Replaces: WB44K5009) |
|
$ 103.82 | |||||
| 253 | WB21X5347 | Sensor Asm |
|
- | |||||
| 256 | WB8K5029 | Receptacle |
|
- | |||||
| 257 | BUY LOCAL | Oven Lamp |
|
- | |||||
| 258 | WB2X7693 | Oven Light Cup |
|
- | |||||
| 259 | WG02F04576 | Ov Lamp Lens (Replaces: WB36X389) |
|
$ 18.59 | |||||
| 260 | WB2X7694 | Light Lens Bail |
|
- | |||||
| 261 | 318394803 | Jamb Switch (Replaces: WB24K5061) |
|
Immediately | $ 44.23 | ||||
| 262 | WB7K5236 | Vent Trim-gray |
|
- | |||||
| 262 | WB07T10080 | Trim Sde (wht) |
|
- | |||||
| 266 | WB63K5079 | Base Rail |
|
- | |||||
| 268 | WB7K5178 | Lo Trim-white |
|
- | |||||
| 273 | WB2K5365 | Cover |
|
- | |||||
| 275 | WB34K5078 | Vent Box Cover |
|
- | |||||
| 279 | WB38K5028 | Vent Box Asm |
|
- | |||||
| 281 | WB10T10001 | Hinge Ovn Dr Asm |
|
- | |||||
| 291 | WB2X9152 | Cover |
|
- | |||||
| 294 | WS01A01413 | Broil Element Support (Replaces: WB2X9719) |
|
$ 10.54 | |||||
| 446 | WB34K5089 | Wire Cover-center |
|
- | |||||
| 595 | WB2K5126 | Conduit Clamp |
|
- | |||||
| 600 | WB18K5346 | Conduit Harness Asm |
|
- | |||||
| 691 | WB1K5163 | Screw-wht |
|
- | |||||
| 752 | WG02A00488 | Screw (Replaces: WB1K5200) |
|
$ 4.20 | |||||
| 761 | WB1K5029 | Screw-black |
|
- | |||||
| 761 | WB1K5185 | Screw-white |
|
- | |||||
| 809 | WG02A00781 | Screw (Replaces: WB1X1137) |
|
$ 14.29 | |||||
| 810 | WB1X1253 | Screw |
|
- | |||||
| 813 | WS01A00445 | Screw (Replaces: WB1X1261) |
|
$ 12.51 | |||||
| 875 | WG04A00781 | Screw 8-18 Ab Hxw 3/8 (Replaces: WH2X930) |
|
Immediately | $ 3.57 | ||||
| 926 | WB1X1260 | Ground Washer |
|
- | |||||
| 935 | WB1K5174 | Washer |
|
- | |||||
| 945 | WB1K5046 | Lockwasher |
|
- |
