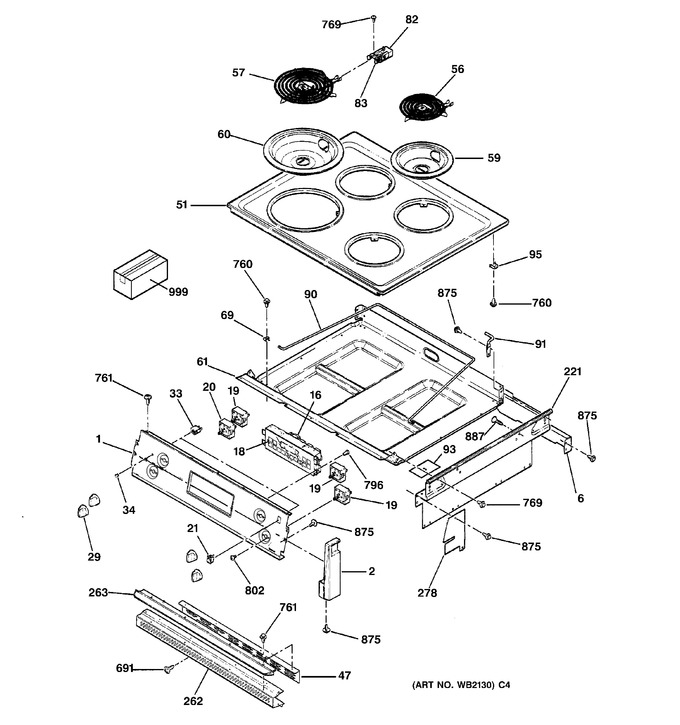

1 - Control Panel & Cooktop


2 - Body Parts


3 - Door


4 - Door Lock


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB36K5566		Control Panel		Appelez-nous	-
2	WB36K5226		End Cap-rt-white		Appelez-nous	-
2	WB36K5227		End Cap-lt-white		Appelez-nous	-
6	WB37K5022		Panel Back		Appelez-nous	-
16	WB27T10480		Control Ovn Erc3b		Appelez-nous	-
18	WB27K5338		Clock Plate-white		Appelez-nous	-
19	WB24T10022		Inf Switch Cntl 1250w				$ 48.75
20	WG02F04192		Inf Sw Cntl 2600w   (Replaces: WB24T10025)			Immediately	$ 65.23
21	WB24K5036		Rocker Switch-wht-ov Lgt		Appelez-nous	-
29	WB3K5110		Infinite Knob-white		Appelez-nous	-
33	WB25X93		Ind Lht Ovn Hot Surface		Appelez-nous	-
34	WB25X94		Indicator Light Lens		Appelez-nous	-
47	WB38K5029		Vent Barrier		Appelez-nous	-
51	WB62K5077		Maintop Elec White		Appelez-nous	-
56	WB30X5119		6" Surface Element		Appelez-nous	-
57	WB30X5120		Coil Asm 8 Inch P I		Appelez-nous	-
59	WG02F00094		Burner Bowl 6"   (Replaces: WB31T10010)			Immediately	$ 35.73
60	WS01L00407		Burner Bowl 8"   (Replaces: WB31T10011)			Immediately	$ 37.47
61	WB64K5051		Bottom Burn Box		Appelez-nous	-
69	WB2M87		Support Rod Clamp		Appelez-nous	-
82	WB17T10001		Terminal Block		Appelez-nous	-
83	WB01T10014		Terminal Block Clip		Appelez-nous	-
90	WB2K5226		Rod Main Top Support		Appelez-nous	-
91	WB14K5009		Hinge Maintop Rt		Appelez-nous	-
91	WB14K5008		Hinge Maintop Lt		Appelez-nous	-
93	WB34K5137		Barrier Bodyside Ext		Appelez-nous	-
95	WB1K5118		Clip Hinge		Appelez-nous	-
221	WB63T10103		Extension Upr Side Rt		Appelez-nous	-
221	WB63T10104		Extension Upr Side Lt		Appelez-nous	-
262	WB07T10080		Trim Sde (wht)		Appelez-nous	-
262	WB7K5236		Vent Trim-gray		Appelez-nous	-
263	WB7K5379		I-brow Trim-wht		Appelez-nous	-
278	WB34T10086		Shield Frt Lwr Lt		Appelez-nous	-
278	WB34T10087		Shield Frt Lwr Rt		Appelez-nous	-
691	WB1K5163		Screw-wht		Appelez-nous	-
760	WB1K5028		Screw		Appelez-nous	-
761	WB1K5185		Screw-white		Appelez-nous	-
761	WB1K5029		Screw-black		Appelez-nous	-
769	WB1X500		Scr 8-18 B Hxw 1/4 S		Appelez-nous	-
796	WB1K5116		Screw		Appelez-nous	-
802	WB1K5123		Screw		Appelez-nous	-
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.57
887	WB1K5172		Trim Screw-white		Appelez-nous	-
999	49-80005		Manual Use & Care		Appelez-nous	-
999	31-10417		Instructions Install		Appelez-nous	-
999	31-14199		Manual Mimi & Wd Asm		Appelez-nous	-
