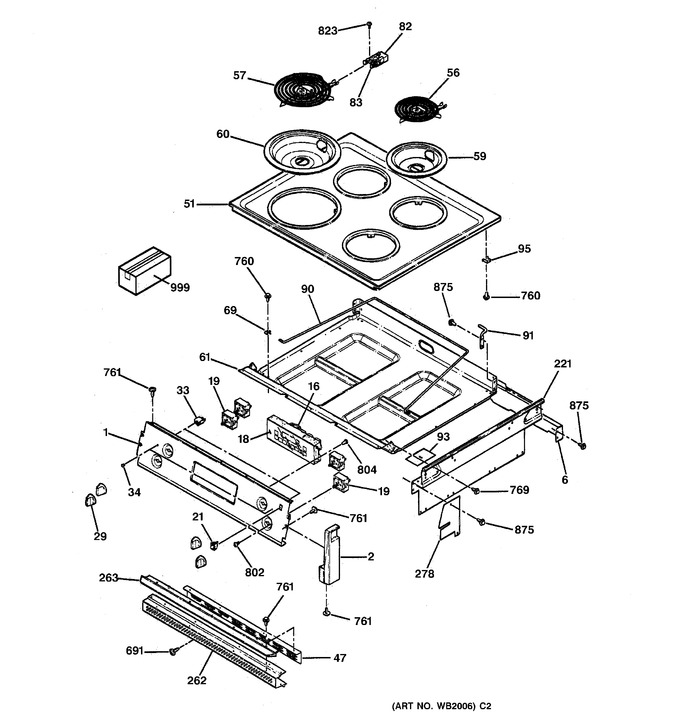

1 - Cooktop & Control Panel
2 - Body Parts
3 - Oven Door
4 - Door Lock
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB36K5566 | Control Panel |
|
- | |||||
| 2 | WB36K5226 | End Cap-rt-white |
|
- | |||||
| 2 | WB36K5227 | End Cap-lt-white |
|
- | |||||
| 6 | WB37K5022 | Panel Back |
|
- | |||||
| 16 | WB27K5140 | Oven Control |
|
- | |||||
| 18 | WB27K5146 | Clock Plate |
|
- | |||||
| 19 | WB23K5055 | Infinite Switch |
|
- | |||||
| 19 | WB23K5056 | Infinite Switch |
|
- | |||||
| 21 | WB24K5036 | Switch Rocker (wht) |
|
- | |||||
| 29 | WB3K5110 | Infinite Knob-white |
|
- | |||||
| 33 | WB25X93 | Light Indicator |
|
- | |||||
| 34 | WB25X94 | Lens Light Ind |
|
- | |||||
| 46 | WB30X5120 | Coil Asm 8 Inch P I |
|
- | |||||
| 47 | WB38K5029 | Vent Barrier |
|
- | |||||
| 51 | WB62K5077 | Maintop Elec White |
|
- | |||||
| 56 | WB30X5129 | 6" P.i. S/u Alum |
|
- | |||||
| 57 | WB30X5130 | 8" P.i. S/u Alum |
|
- | |||||
| 59 | WB31M16 | 6" Burner Bowl-chrome |
|
- | |||||
| 60 | WB31M15 | 8" Burner Bowl-chrome |
|
- | |||||
| 61 | WB64K5051 | Bottom Burn Box |
|
- | |||||
| 69 | WB2M87 | Support Rod Clamp |
|
- | |||||
| 82 | WB17K5017 | Terminal Block Asm |
|
- | |||||
| 83 | WB1K5128 | Terminal Block Clip |
|
- | |||||
| 90 | WB2K5226 | Rod Main Top Support |
|
- | |||||
| 91 | WB14K5009 | Hinge Maintop Rt |
|
- | |||||
| 91 | WB14K5008 | Hinge Maintop Lt |
|
- | |||||
| 93 | WB34K5137 | Barrier Bodyside Ext |
|
- | |||||
| 95 | WB1K5118 | Clip Hinge |
|
- | |||||
| 221 | WB63K5132 | Extension Upr Sd |
|
- | |||||
| 253 | WB21X5347 | Sensor Asm |
|
- | |||||
| 262 | WB7K5236 | Trim Vent Gray |
|
- | |||||
| 262 | WB7K5179 | Side Trim-white |
|
- | |||||
| 263 | WB7K5379 | I-brow Trim-wht |
|
- | |||||
| 278 | WB34K5135 | Shield Frm Lwr |
|
- | |||||
| 530 | WB48X5107 | Grid Bro Pan |
|
- | |||||
| 691 | WB1K5169 | Trim Screw-white |
|
- | |||||
| 691 | WB1K5163 | Screw St 10-16x.375(wht) |
|
- | |||||
| 760 | WB1K5028 | Screw |
|
- | |||||
| 761 | WB1K5185 | Screw-white |
|
- | |||||
| 761 | WB1K5062 | Screw-brt. Ni. |
|
- | |||||
| 761 | WB1K5134 | Screw-gray |
|
- | |||||
| 769 | WB1X500 | Scr 8-18 B Hxw 1/4 S |
|
- | |||||
| 802 | WB1K5123 | Screw |
|
- | |||||
| 804 | WB1X1127 | Screw |
|
- | |||||
| 823 | WB1X1425 | Screw |
|
- | |||||
| 833 | WB1X1131 | Sc Tc 6-32x.875 Pan Zn |
|
- | |||||
| 856 | WG02F04011 | Screw Tc10-32x.250hexni (Replaces: WB1X1293) |
|
$ 3.57 | |||||
| 858 | WB1X1413 | Screw Wood |
|
- | |||||
| 875 | WG04A00781 | Scr 8-18 Ab Hxw 3/8 S (Replaces: WH2X930) |
|
Immediately | $ 3.57 | ||||
| 887 | WG02A00783 | Screw St 8-18x.750(blk) (Replaces: WB1K5173) |
|
$ 3.57 | |||||
| 911 | WB1K5124 | Rivet |
|
- | |||||
| 955 | WB2M9 | Retainer |
|
- | |||||
| 999 | WB18K5636 | Harness Wire Main |
|
- | |||||
| 999 | 31-13177 | Manual Mini & Wd Asm |
|
- | |||||
| 999 | 49-8592 | Pm Manual Use & Care |
|
- | |||||
| 999 | 31-10013 | Installation Instruction |
|
- | |||||
| 999 | SR10106 | Instruction Element Care |
|
- | |||||
| 999 | WB18K5344 | Harness Wire Door Sw |
|
- | |||||
| 999 | WB18K5347 | Harness Wire Maintop |
|
- | |||||
| 999 | WB18K5595 | Lock Motor Wire Harness |
|
- |
