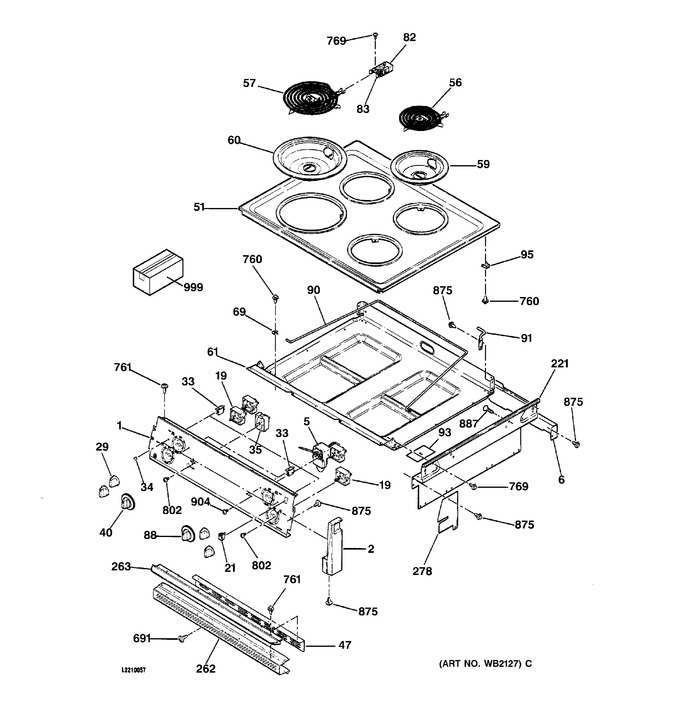

1 - Control Panel & Cooktop
2 - Body Parts
3 - Oven Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB36K5564 | Control Panel |
|
- | |||||
| 2 | WB36K5224 | Cap End Rt (blk) |
|
- | |||||
| 2 | WB36K5225 | Cap End Lt (blk) |
|
- | |||||
| 5 | WB20K5011 | Thermostat |
|
- | |||||
| 6 | WB37K5022 | Panel Back |
|
- | |||||
| 19 | WB23K5056 | Infinite Switch |
|
- | |||||
| 19 | WB23K5055 | Infinite Switch |
|
- | |||||
| 21 | WB24K5035 | Rocker Swtch-blk-ov Lght |
|
- | |||||
| 29 | WB3K5109 | Infinite Knob Blk |
|
- | |||||
| 33 | WB25X92 | Indicator Light-top Elem |
|
- | |||||
| 33 | WB25X93 | Ind Lht Ovn Hot Surface |
|
- | |||||
| 34 | WB25X94 | Indicator Light Lens |
|
- | |||||
| 35 | WB24K5040 | Selector Switch |
|
- | |||||
| 40 | WB3K5254 | Selector Switch Knob-blk |
|
- | |||||
| 47 | WB38K5029 | Vent Barrier |
|
- | |||||
| 51 | WB62K5077 | Maintop Elec White |
|
- | |||||
| 56 | WB30X5119 | 6" Surface Element |
|
- | |||||
| 57 | WB30X5120 | Coil Asm 8 Inch P I |
|
- | |||||
| 59 | WG02F00094 | Burner Bowl 6" (Replaces: WB31T10010) |
|
Immediately | $ 35.73 | ||||
| 60 | WS01L00407 | Burner Bowl 8" (Replaces: WB31T10011) |
|
Immediately | $ 37.47 | ||||
| 61 | WB64K5051 | Bottom Burn Box |
|
- | |||||
| 69 | WB2M87 | Support Rod Clamp |
|
- | |||||
| 82 | WB17K5017 | Terminal Block Asm |
|
- | |||||
| 83 | WB1K5128 | Clip Terminal Block(0%) |
|
- | |||||
| 88 | WB3K5253 | Thermostat Knob-blk |
|
- | |||||
| 90 | WB2K5226 | Rod Main Top Support |
|
- | |||||
| 91 | WB14K5008 | Hinge Maintop Lt |
|
- | |||||
| 91 | WB14K5009 | Hinge Maintop Rt |
|
- | |||||
| 93 | WB34K5137 | Barrier Bodyside Ext |
|
- | |||||
| 95 | WB1K5118 | Clip Hinge |
|
- | |||||
| 102 | WB35K5097 | Oven Door Insulation-sd |
|
- | |||||
| 221 | WB63K5132 | Extension Upr Side |
|
- | |||||
| 262 | WB07T10079 | Trim Side (wht) |
|
- | |||||
| 262 | WB7K5101 | Vent Trim |
|
- | |||||
| 263 | WB7K5378 | I-brow Trim-blk |
|
- | |||||
| 278 | WB34K5135 | Shield Frm Lwr |
|
- | |||||
| 691 | WB1K5162 | Screw-black |
|
- | |||||
| 760 | WB1K5028 | Screw |
|
- | |||||
| 761 | WB1K5029 | Screw-black |
|
- | |||||
| 769 | WB1X500 | Scr 8-18 B Hxw 1/4 S |
|
- | |||||
| 802 | WB1K5123 | Screw |
|
- | |||||
| 842 | WB1X1297 | Screw |
|
- | |||||
| 847 | WB1X1158 | Screw |
|
- | |||||
| 875 | WG04A00781 | Screw 8-18 Ab Hxw 3/8 (Replaces: WH2X930) |
|
Immediately | $ 3.57 | ||||
| 887 | WG02A00783 | Trim Screw-blk (Replaces: WB1K5173) |
|
$ 3.57 | |||||
| 904 | WB1X521 | Scr 8/32 Tf Flr 5/16 S |
|
- | |||||
| 999 | 31-131151 | Manual Mini Wd Asm |
|
- | |||||
| 999 | 31-10013 | Instructions Install |
|
- | |||||
| 999 | 49-8875 | Pm Manual Use & Care |
|
- | |||||
| 999 | WB18K5347 | Harness Wire Maintop |
|
- | |||||
| 999 | WB18K5480 | Main Wire Harness |
|
- |
