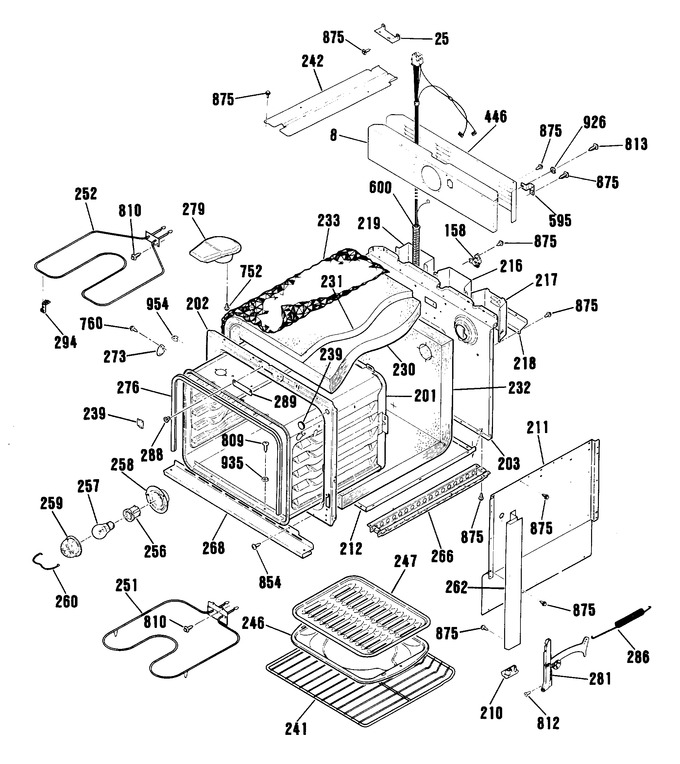

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 8 | WB2K5137 | Fan Support |
|
- | |||||
| 25 | WB2X9131 | Fan Bracket |
|
- | |||||
| 158 | WB24K5029 | Limit Switch |
|
- | |||||
| 201 | WB63K5086 | Oven Body |
|
- | |||||
| 202 | WB63K5084 | Front Frame Asm |
|
- | |||||
| 203 | WB63K5167 | Main Back |
|
- | |||||
| 210 | WB7K5176 | Cap End Lwr Trim (blk) |
|
- | |||||
| 211 | WB63K5173 | Body Side |
|
- | |||||
| 212 | WB63K5080 | Cabinet Bottom |
|
- | |||||
| 216 | WB34K5069 | Wire Cover-element |
|
- | |||||
| 217 | WB34K5070 | Wire Cover-light |
|
- | |||||
| 218 | WB34K5067 | Wire Cover Bottom |
|
- | |||||
| 219 | WB34K5082 | Wire Cover-conduit |
|
- | |||||
| 230 | WB35K5041 | Insulation-inner Wrap |
|
- | |||||
| 231 | WB35K5042 | Insulation-outer-lower |
|
- | |||||
| 232 | WB35K5040 | Insulation Back/btm-low |
|
- | |||||
| 233 | WB34K5080 | Heat Reflector |
|
- | |||||
| 239 | WB2X9587 | Plug Button-round |
|
- | |||||
| 239 | WB2X9189 | Plug Button-rectangular |
|
- | |||||
| 241 | WG02L02645 | Oven Rack (Replaces: WB48K5006) |
|
$ 80.53 | |||||
| 242 | WB38K5041 | Air Channel |
|
- | |||||
| 246 | WB48M3 | Broiler Pan |
|
- | |||||
| 247 | WB48K5018 | Broiler Pad Grid |
|
- | |||||
| 251 | WB44K5013 | Bake Element |
|
$ 113.30 | |||||
| 252 | WG02F05475 | Broil Element (Replaces: WB44K5009) |
|
$ 103.82 | |||||
| 256 | WB8K5029 | Receptacle |
|
- | |||||
| 257 | BUY LOCAL | Oven Lamp |
|
- | |||||
| 258 | WB2X7693 | Oven Light Cup |
|
- | |||||
| 259 | WG02F04576 | Ov Lamp Lens (Replaces: WB36X389) |
|
$ 18.59 | |||||
| 260 | WB2X7694 | Light Lens Bail |
|
- | |||||
| 262 | WB7K5269 | Vertical Side Trim-black |
|
- | |||||
| 262 | WB7K5101 | Vent Trim |
|
- | |||||
| 266 | WB63K5079 | Base Rail |
|
- | |||||
| 268 | WB7K5268 | Lower Vent Trim-blk |
|
- | |||||
| 273 | WB2X3230 | Cover Plate-jack |
|
- | |||||
| 276 | WB32K5019 | Ov Dr Seal |
|
- | |||||
| 279 | WB38K5028 | Vent Box Asm-black |
|
- | |||||
| 281 | WB14K5007 | Ov Dr Hinge-lt |
|
- | |||||
| 281 | WB14K5006 | Ov Dr Hinge-rt |
|
- | |||||
| 286 | WB9K5021 | Oven Door Spring |
|
- | |||||
| 288 | WB3K5043 | Plug Button |
|
- | |||||
| 289 | WB34K5068 | Latch Opening Cover |
|
- | |||||
| 294 | WS01A01413 | Broil Element Support (Replaces: WB2X9719) |
|
$ 10.54 | |||||
| 446 | WB34K5089 | Wire Cover-center |
|
- | |||||
| 595 | WB2K5126 | Conduit Clamp |
|
- | |||||
| 600 | WB18K5346 | Conduit Harness Asm |
|
- | |||||
| 752 | WB0X6542 | Screw |
|
- | |||||
| 760 | WB1K5028 | Screw |
|
- | |||||
| 809 | WG02A00781 | Screw (Replaces: WB1X1137) |
|
$ 14.29 | |||||
| 810 | WB1X1253 | Screw |
|
- | |||||
| 812 | WB1X1133 | Screw |
|
- | |||||
| 813 | WS01A00445 | Screw (Replaces: WB1X1261) |
|
$ 12.51 | |||||
| 854 | WB1X1328 | Screw-black |
|
- | |||||
| 875 | WG04A00781 | Scr 8-18 Ab Hxw 3/8 S (Replaces: WH2X930) |
|
Immediately | $ 3.57 | ||||
| 926 | WB1X1260 | Ground Washer |
|
- | |||||
| 935 | WB1X1201 | Washer |
|
- | |||||
| 954 | WB2X9105 | Thermostat Bulb Ret Clip |
|
- |
