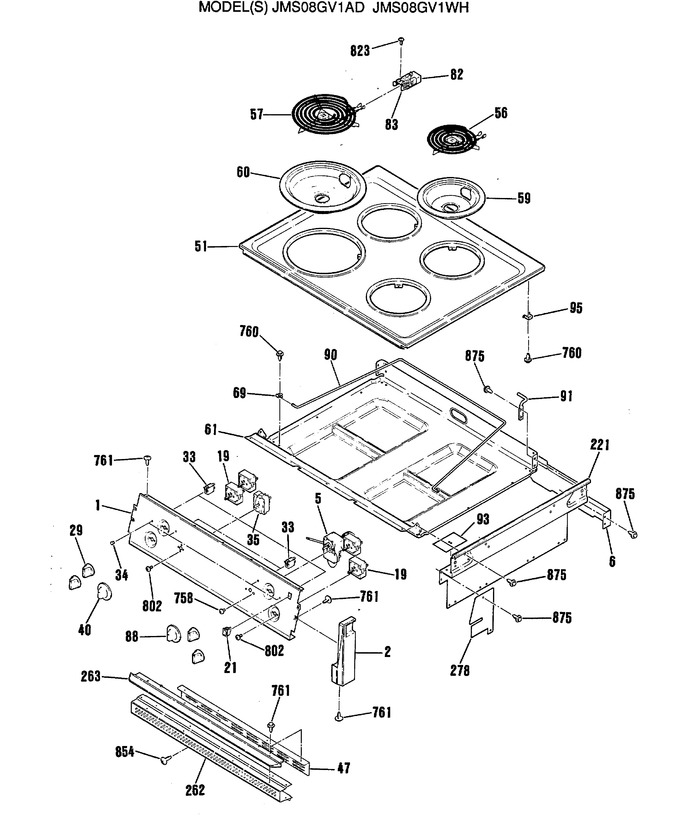

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB36K5564 | Control Panel |
|
- | |||||
| 2 | WB36K5224 | Cap End Rt (blk) |
|
- | |||||
| 2 | WB36K5225 | Cap End Lt (blk) |
|
- | |||||
| 5 | WB20K5011 | Thermostat |
|
- | |||||
| 6 | WB37K5022 | Panel Back |
|
- | |||||
| 19 | WB23K5055 | Infinite Switch |
|
- | |||||
| 19 | WB23K5056 | Infinite Switch |
|
- | |||||
| 21 | WB24K5035 | Rocker Switch |
|
- | |||||
| 29 | WB3K5109 | Infinite Knob Blk |
|
- | |||||
| 33 | WB25X92 | Indicator Light-top Elem |
|
- | |||||
| 33 | WB25X93 | Indicator Light-oven |
|
- | |||||
| 34 | WB25X94 | Indicator Light Lens |
|
- | |||||
| 35 | WB24K5040 | Selector Switch |
|
- | |||||
| 40 | WB3K5254 | Selector Switch Knob-blk |
|
- | |||||
| 47 | WB38K5029 | Vent Barrier |
|
- | |||||
| 51 | WB62K5077 | Maintop Elec White |
|
- | |||||
| 56 | WB30X5129 | 6" P.i. S/u Alum |
|
- | |||||
| 57 | WB30X5130 | 8" P.i. S/u Alum |
|
- | |||||
| 59 | WB31M16 | 6" Burner Bowl-chrome |
|
- | |||||
| 60 | WB31M15 | 8" Burner Bowl-chrome |
|
- | |||||
| 61 | WB64K5051 | Bottom Burn Box |
|
- | |||||
| 69 | WB2M87 | Support Rod Clamp |
|
- | |||||
| 82 | WB17K5017 | Terminal Block Asm |
|
- | |||||
| 83 | WB1K5128 | Terminal Block Clip |
|
- | |||||
| 88 | WB3K5253 | Thermostat Knob-blk |
|
- | |||||
| 90 | WB2K5226 | Rod Main Top Support |
|
- | |||||
| 91 | WB14K5009 | Hinge Maintop Rt |
|
- | |||||
| 91 | WB14K5008 | Hinge Maintop Lt |
|
- | |||||
| 93 | WB34K5137 | Barrier Bodyside Ext |
|
- | |||||
| 95 | WB1K5118 | Clip Hinge |
|
- | |||||
| 221 | WB63K5132 | Extension Upr Sd |
|
- | |||||
| 262 | WB7K5101 | Vent Trim |
|
- | |||||
| 262 | WB7K5269 | Vertical Side Trim-black |
|
- | |||||
| 263 | WB7K5378 | I-brow Trim-blk |
|
- | |||||
| 278 | WB34K5135 | Shield Frm Lwr |
|
- | |||||
| 758 | WD2X323 | Screw 8-32 X 3/8 Sph |
|
- | |||||
| 760 | WB1K5028 | Screw |
|
- | |||||
| 761 | WB1K5029 | Screw-black |
|
- | |||||
| 769 | WB1X500 | Screw |
|
- | |||||
| 802 | WB1X1265 | Screw |
|
- | |||||
| 802 | WB1K5123 | Screw |
|
- | |||||
| 823 | WB1X1425 | Screw |
|
- | |||||
| 854 | WB1X1328 | Screw-black |
|
- | |||||
| 875 | WG04A00781 | Scr 8-18 Ab Hxw 3/8 S (Replaces: WH2X930) |
|
Immediately | $ 3.57 | ||||
| 999 | WB18K5480 | Main Wire Harness |
|
- | |||||
| 999 | 31-10013 | Installation Instruction |
|
- | |||||
| 999 | 31-131151 | Manual Mini & Wd Asm |
|
- | |||||
| 999 | 49-8593 | Use & Care Manual |
|
- | |||||
| 999 | WB18K5347 | Harness Wire Maintop |
|
- |
