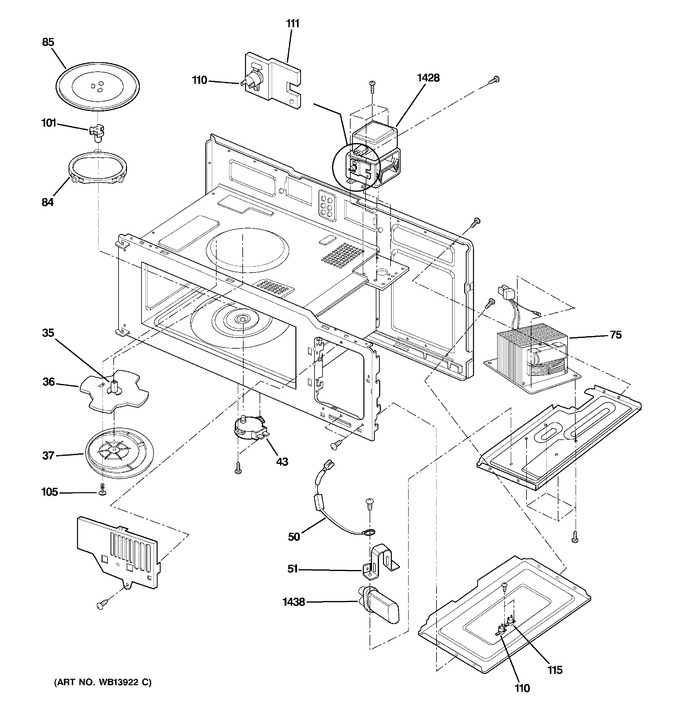

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 35 | WB02X11261 | Holder Stirrer Fan |
|
- | |||||
| 36 | WB06X10706 | Fan |
|
- | |||||
| 37 | WB06X10703 | Cover Stirrer Fan |
|
- | |||||
| 43 | WB26X10154 | Motor(circ),synchronous |
|
- | |||||
| 50 | WG01A01078 | Diode (Replaces: WB27X10930) |
|
Immediately | $ 25.73 | ||||
| 51 | WB06X10561 | Bracket,capacitor |
|
- | |||||
| 75 | WB27X10929 | Transformer |
|
- | |||||
| 84 | WB06X10705 | Rotating Ring Asm |
|
- | |||||
| 85 | WB49X10129 | Tray,glass |
|
- | |||||
| 101 | WB06X10704 | Shaft Turntable |
|
- | |||||
| 105 | WB01X10055 | Rivet Asm |
|
- | |||||
| 110 | WB27X10788 | Thermostat |
|
- | |||||
| 111 | WB06X10570 | Bracket,misc |
|
- | |||||
| 115 | WB27X10932 | Thermostat |
|
- | |||||
| 1428 | WB27X10927 | Magnetron |
|
- | |||||
| 1438 | WG02F00228 | Capacitor H.v (Replaces: WB27X10701) |
|
Immediately | $ 57.24 |
