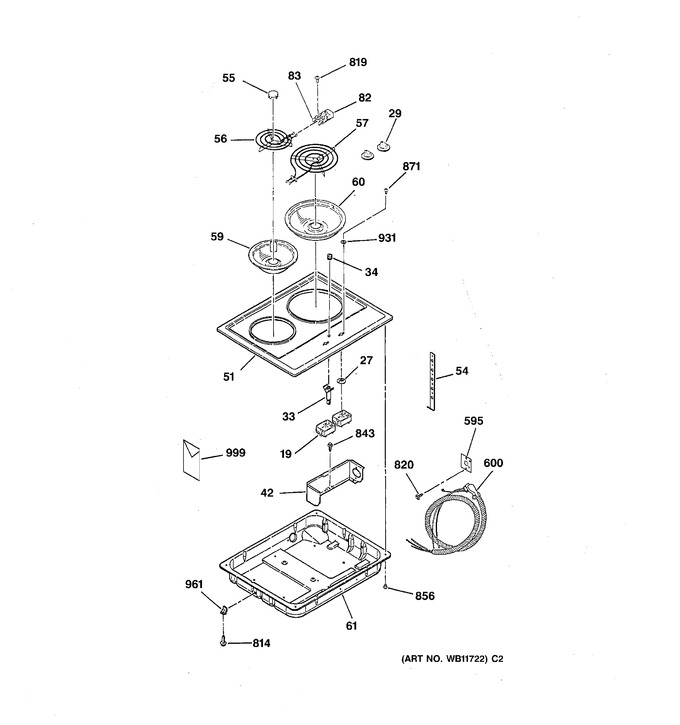

1 - Cooktop


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	WB23K5030		Control Element 1400w		Appelez-nous	-
19	WG02F05767		Control Element 2400w   (Replaces: WB23K5031)				$ 152.39
27	WB6X3		Control Seal		Appelez-nous	-
29	WB03X10297		Inf Knob (wht)		Appelez-nous	-
33	WB25M3		Ins Surf Light		Appelez-nous	-
34	WB25X10028		Red Indicator Light Lens				$ 5.07
42	WB34K5243		Strip Barrier (control)		Appelez-nous	-
51	WB62K5036		Main Top-white		Appelez-nous	-
54	WG02A00689		Hold Down Bracket   (Replaces: WB2K5328)				$ 5.72
55	WB32X105		Medallion		Appelez-nous	-
56	WB30X254		6" Surface Element		Appelez-nous	-
57	WB30X253		8" Surface Element		Appelez-nous	-
59	WB31M1		6" Burner Bowl		Appelez-nous	-
60	WB31M2		8" Burner Bowl		Appelez-nous	-
61	WB64X10006		Burner Box		Appelez-nous	-
82	WB17M11		Terminal Block Asm		Appelez-nous	-
83	WB17X218		Terminal Block Clip		Appelez-nous	-
595	WB2X9666		Harness Conduit Plate		Appelez-nous	-
600	WB18K5616		Conduit Harness Asm		Appelez-nous	-
814	WG02A02482		Screw Self Tapping   (Replaces: WB01X10080)				$ 20.16
819	WB1K5204		Screw Receptacle Clip		Appelez-nous	-
820	WB1K5203		Screw Conduit Clamp		Appelez-nous	-
843	WB1X1296		Screw		Appelez-nous	-
856	WG02F04011		Screw   (Replaces: WB1X1293)				$ 3.57
871	WB1M13		Screw		Appelez-nous	-
931	WB1M6		Washer		Appelez-nous	-
961	WG02A00896		Retainer Clip/bracket   (Replaces: WB01X10209)				$ 83.39
999	WB18K5174		Main Wire Harness		Appelez-nous	-
999	49-8204		Use & Care Manual		Appelez-nous	-
999	WB18K5173		Element Wire Harness		Appelez-nous	-
	WG02F05364		Element 6" 1250w Utility				$ 60.31
	WG02F14983		Switch   (Replaces: WG02F04376)			Immediately	$ 109.54
