SELECT A DIAGRAM

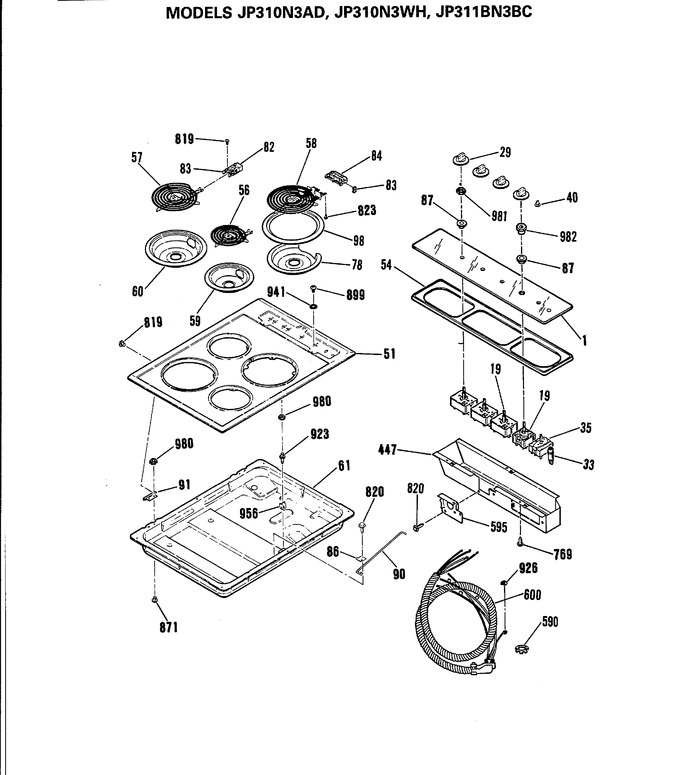

1 - Component Group
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB57M3 | Control Panel Glass |
|
- | |||||
| 19 | WB23M2 | 6" Infinite Control |
|
- | |||||
| 19 | WB23M3 | 3 In 1 Infinite Control |
|
- | |||||
| 19 | WB23M1 | 8" Infinite Control |
|
- | |||||
| 29 | WB3X800 | Infinite Knob |
|
- | |||||
| 33 | WB25M1 | Indicator Light |
|
- | |||||
| 35 | WB13M2 | Selector Switch |
|
- | |||||
| 40 | WB3M3 | Selector Knob |
|
- | |||||
| 51 | WB62K5070 | Maintop Elec Asm |
|
- | |||||
| 54 | WB32M1 | Main Top Seal |
|
- | |||||
| 56 | WB30X5109 | Unit Asm 6 Inch Plug In |
|
- | |||||
| 57 | WB30K5027 | 8" Surface Element |
|
- | |||||
| 58 | WB30X346 | Surface Unit, 4-6-8" |
|
- | |||||
| 59 | WB31M16 | 6" Burner Bowl-chrome |
|
- | |||||
| 60 | WB31M15 | 8" Burner Bowl-chrome |
|
- | |||||
| 61 | WB64K5032 | Burner Box |
|
- | |||||
| 78 | WB32X5036 | Pan Unit 8" Chrome |
|
$ 18.70 | |||||
| 82 | WB17K5017 | Terminal Block Asm |
|
- | |||||
| 83 | WB2X574 | 3 In 1 Insulator Clip |
|
- | |||||
| 83 | WB1K5128 | Terminal Block Clip |
|
- | |||||
| 84 | WB2X2018 | Unit Terminal Block |
|
- | |||||
| 86 | WB2K5186 | Support Rod Clamp |
|
- | |||||
| 87 | WB32K5022 | Inf Cnt Seal-blk-thermal |
|
- | |||||
| 87 | WB2X9972 | Switch Seal |
|
- | |||||
| 90 | WB2K5185 | Main Top Support Rod |
|
- | |||||
| 91 | WB14X129 | Mt Hinge |
|
- | |||||
| 98 | WB31X5014 | Trim Ring 8" |
|
Immediately | $ 13.55 | ||||
| 447 | WB34K5086 | Wire Cover-micro Side |
|
- | |||||
| 590 | WB1X1299 | Nut |
|
- | |||||
| 595 | WB6X2 | Conduit Plate |
|
- | |||||
| 600 | WB18K5397 | Conduit Wire Harness |
|
- | |||||
| 769 | WB1X500 | Screw |
|
- | |||||
| 819 | WB1X1158 | Screw |
|
- | |||||
| 820 | WB1X1424 | Screw |
|
- | |||||
| 823 | WB1X1425 | Screw |
|
- | |||||
| 871 | WB1K5122 | Screw |
|
- | |||||
| 899 | WB1X1344 | Screw |
|
- | |||||
| 923 | WB14X131 | Strike |
|
- | |||||
| 926 | WB1X1260 | Ground Washer |
|
- | |||||
| 941 | WB1X1399 | Lockwasher |
|
- | |||||
| 956 | WB10X259 | Catch-cooktop |
|
- | |||||
| 980 | WB1X1129 | Nut |
|
- | |||||
| 981 | WB1X1308 | Nut |
|
- | |||||
| 982 | WB1K5060 | Hex Nut Adapter |
|
- | |||||
| 999 | 31-10114 | Installation Instruction |
|
- | |||||
| 999 | 49-8064 | Owners Manual |
|
- | |||||
| 999 | WB18K5471 | M/t Wire Harness W/blk |
|
- |
