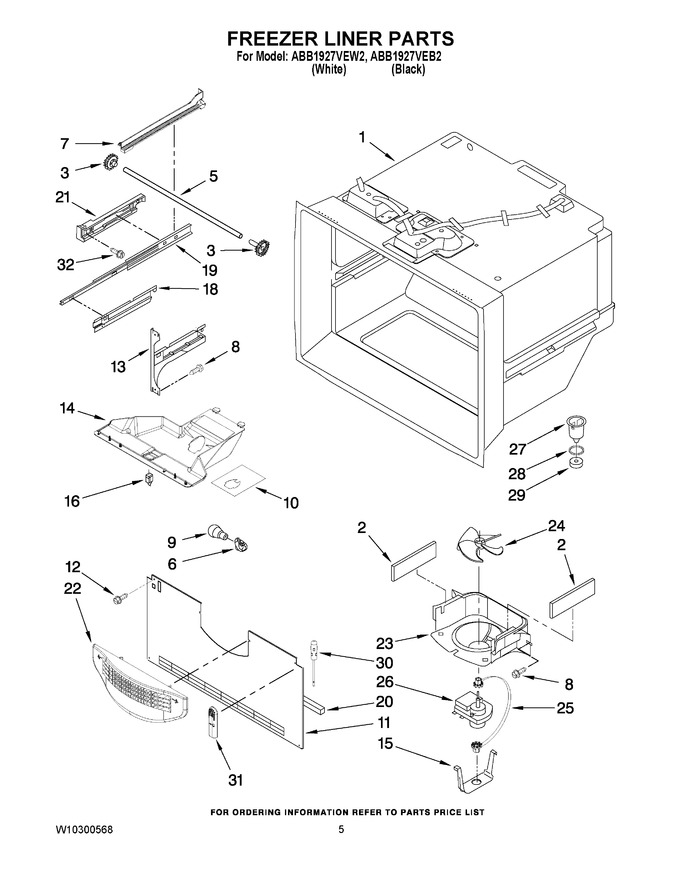

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W10856123 | Gasket, Foam (2) (Replaces: A3189392) |
|
Immediately | $ 7.68 | ||||
| 3 | 12002497 | Gear (2) (includes Rh & Lh) |
|
Immediately | $ 22.51 | ||||
| 5 | W10802329 | Shaft (Replaces: 12812901WD) |
|
$ 109.86 | |||||
| 6 | W11447232 | Socket, Light (Replaces: 12570701V) |
|
Immediately | $ 13.21 | ||||
| 7 | W11489993 | Rack-side-left (Replaces: W10284694) |
|
$ 22.34 | |||||
| 7 | W11489994 | Rack-side-right (Replaces: W10284695) |
|
$ 22.34 | |||||
| 8 | WP98165 | Screw (8) (Replaces: 12990521) |
|
$ 8.00 | |||||
| 9 | W11679940 | Bulb, Light (Replaces: W10194422V) |
|
Immediately | $ 11.30 | ||||
| 10 | W11469652 | Foil-fz Light (Replaces: W10277466) |
|
$ 22.18 | |||||
| 11 | WPW10308414 | Cover, Evaporator (Replaces: 12226110) |
|
$ 234.80 | |||||
| 12 | 67006425 | Screw (7) (Replaces: 12990511) |
|
Immediately | $ 6.95 | ||||
| 13 | WPW10330991 | Bracket-door (left) (Replaces: W10122147) |
|
$ 156.49 | |||||
| 13 | WPW10330993 | Bracket-door (right) (Replaces: W10122148) |
|
$ 158.18 | |||||
| 14 | WPW10277025 | Module-fz Light (Replaces: W10277025) |
|
$ 128.00 | |||||
| 15 | 10623002 | Clip, Evap Motor |
|
$ 11.53 | |||||
| 16 | W11396033 | Switch, Light (Replaces: 12466105) |
|
Immediately | $ 37.30 | ||||
| 18 | WPW10280608 | Cradle, Basket (left) (Replaces: W10280608) |
|
$ 87.76 | |||||
| 18 | WPW10280613 | Cradle, Basket (right) (Replaces: W10280613) |
|
$ 87.76 | |||||
| 19 | W11658402 | Slide-drawer (2) (Replaces: W10120018) |
|
Immediately | $ 127.51 | ||||
| 20 | W11451451 | Gasket, Bottom (Replaces: A3189397) |
|
$ 12.41 | |||||
| 21 | WPW10284684 | Adapter-slide (left) (Replaces: W10284684) |
|
Immediately | $ 39.77 | ||||
| 21 | WPW10284685 | Adapter-slide (right) (Replaces: W10284685) |
|
$ 40.04 | |||||
| 22 | WPW10175909 | Cover, Fan Shroud (Replaces: 13024803) |
|
Immediately | $ 85.72 | ||||
| 23 | WPW10167023 | Shroud, Evap.fan (Replaces: 13057901) |
|
Immediately | $ 66.28 | ||||
| 24 | WP2169142 | Fan, Evaporator (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 25 | W10121318 | Grommet (2) |
|
$ 48.38 | |||||
| 26 | WPW10128551 | Motor, Evaporator (Replaces: W10128551) |
|
Immediately | $ 78.75 | ||||
| 27 | W10815413 | Funnel, Drain (incl. No. 28 & 29) (Replaces: D7753903) |
|
Immediately | $ 49.05 | ||||
| 28 | WPM0500703 | Seal (Replaces: M0500703) |
|
$ 10.92 | |||||
| 29 | WPB8381501 | Gasket (Replaces: B8381501) |
|
$ 7.41 | |||||
| 30 | 12002355 | Thermistor |
|
Immediately | $ 47.36 | ||||
| 31 | WP67003924 | Cover, Thermistor (Replaces: 12815301) |
|
$ 7.82 | |||||
| 32 | WP489474 | Screw (6) (Replaces: 12990501) |
|
Immediately | $ 7.97 |
